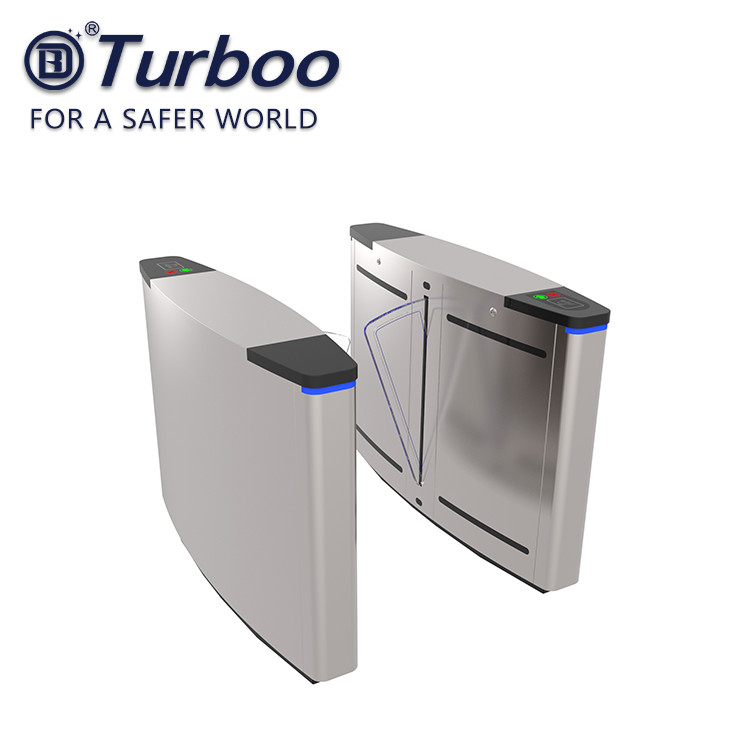

304 Stainless Steel Optical Barrier Turnstiles With Multiple Anti - Pinch

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number A221B
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Thickness Full 1.2mm Or Full 1.5mm
Size 1400X300X1005 Passage Width ≤550mm
Testing 3 Million No Fault Input 220V,50HZ Or 110 V ,50HZ
Driving Voltage 24 V Environment -25~+70
High Light

waist height turnstile

,

drop arm turnstiles

,

Stainless Steel Optical Barrier Turnstiles

Leave a Message
Product Description

Flap Barrier Turnstile 304 Stainless Steel Optical Pedestrian Factory Direct Price







Features and Benefits



1. Fire-fighting linkage: the turnstile will open automatically and enter the emergency mode when the equipment receives the fire-fighting signal in the case of constant power supply.

2. Running mode:A - normally closed mode for pedestrian passage; B - normally open mode for pedestrian passage; and C - bicycle and wheelchair passage mode.

3. Secondary opening: the turnstile will close when any pedestrians in the reverse direction intruded after swiping card and will reopen for pedestrians' passage by re-enabling the card swiping function after intruders get out of the channel.

4. Multiple anti-pinch:it consists of infrared anti-pinch and mechanical anti-pinch, and will block the infrared for opening twice during closing.

5. Passage indication:after swiping cards for products of luxury models, the long arrow on top cover will flash for reminding, and this is novel and unique.

6. Fault self-diagnosis:refers to the real fault self-diagnosis, that is, the equipment will give alarms, display fault code and identify fault location to facilitate commissioning and maintenance when it fails to run normally.





Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer


Technical Data Unit A221B
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X300X1005
Net weight including bars Kg 87
