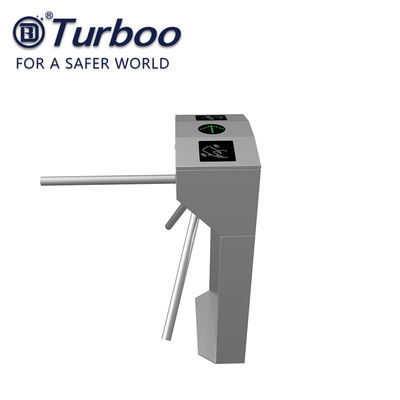

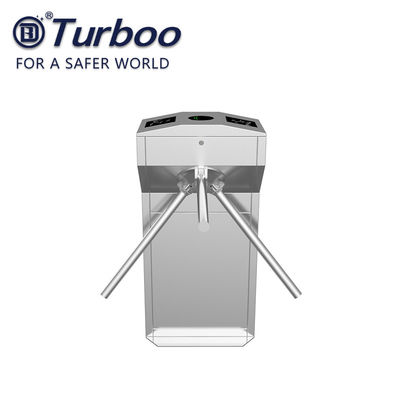

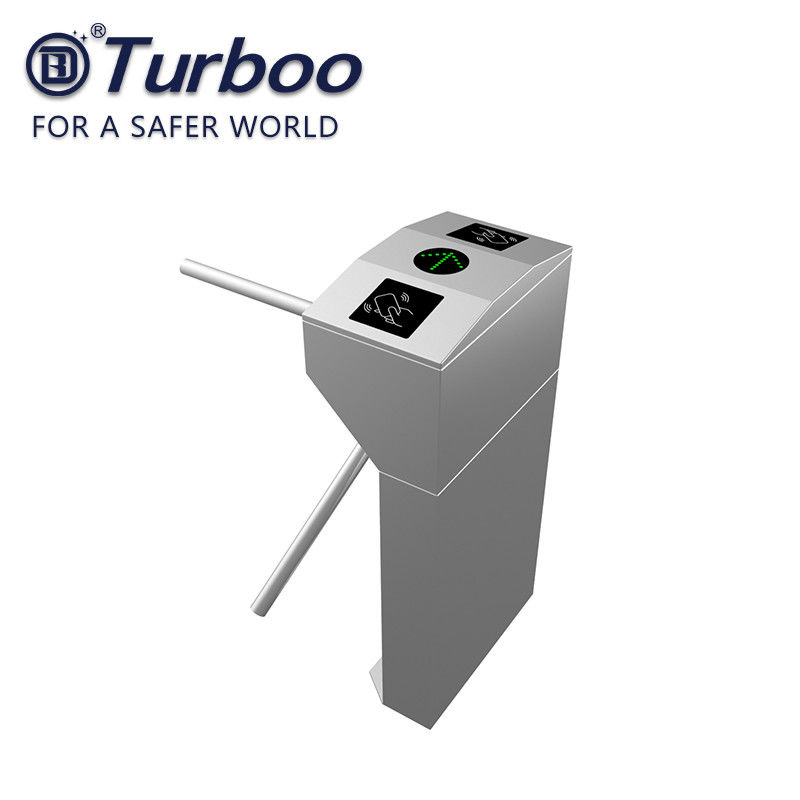

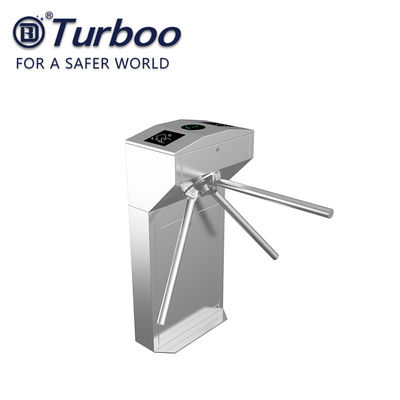

Three Arms Stainless Steel Turnstiles Access Control Systems , Entrance Barrier Gate

Place of Origin China
Brand Name Turboo
Certification CE,ISO9001
Model Number HL145
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden case package
Delivery Time 1 Week
Payment Terms T/T, L/C,
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness Full 1.2mm Or Full 1.5mm Size 480*280*980mm
Passage Width 550mm Package Wooden Case Package(Tripod Turnstile)
Testing 3 Millions No Fault Input 220V,50HZ Or 110 V ,50HZ
Driving Voltage 24 V Environment -25~+70
High Light

turnstile security systems

,

security barrier gate

,

Three Arms Stainless Steel Turnstiles

Leave a Message
Product Description

Stainless Steel Turnstiles Three Arms Parking Access Control Traffic Barrier Entrance Barrier Gate

Product description

Technical Data Unit HL145
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 480X280X980
Net weight including bars Kg 49



Features and Benefits



• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.



Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer
