2.0mm thickness imported 304 stainless steel high speed entry exit turnstile gate

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number B323
Minimum Order Quantity 2 pcs
Price Negotiable
Packaging Details Wooden Case Package
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 1400*150*980mm Weight 50.00Kg
Material Imported 304 SUS 2.0mm Pass Width ≤600
Input 100V~240V Working Voltage 24V
Power Consumption 35W Application Space Saving Places
High Light

biometric security system

,

sliding security gates

,

2.0mm turnstile gate

Leave a Message
Product Description

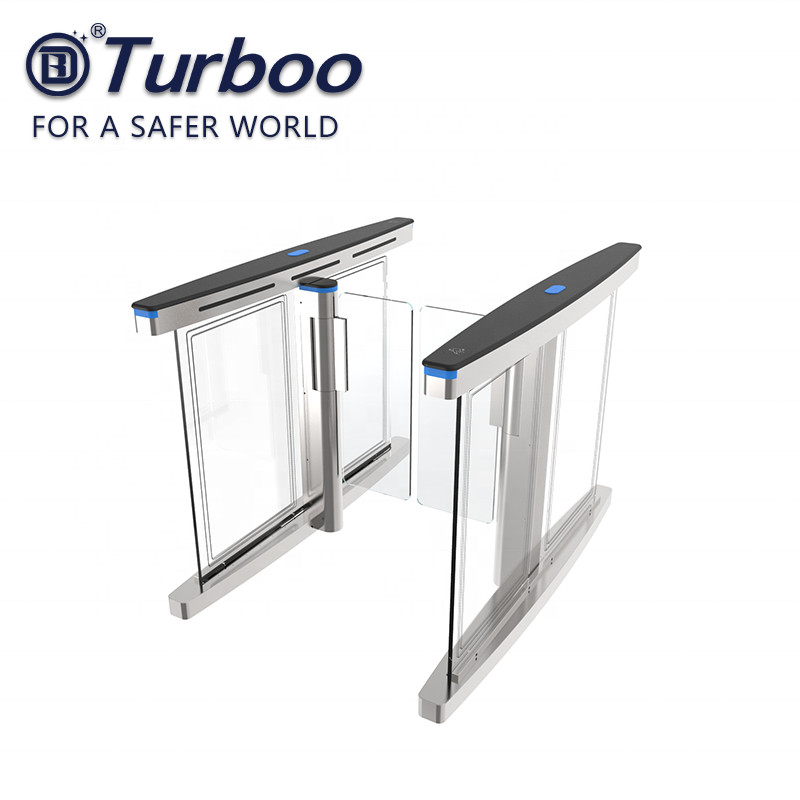

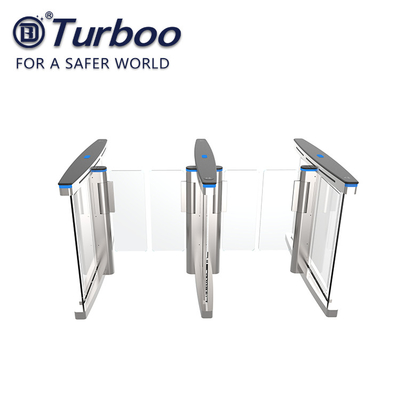

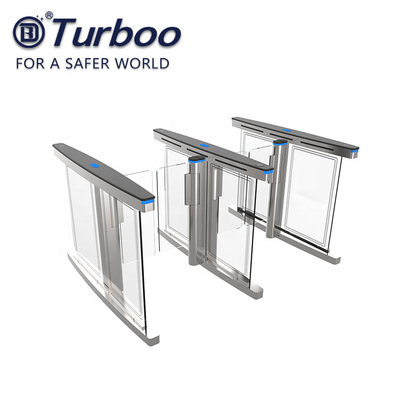

2.0mm thickness imported 304 stainless steel high speed entry exit turnstile gate



This high speed turnstile is very slim in size.It is made of 2.0mm Japan imported stainless steel #304,man-made marble and acrylic. The wide of counter is less than150mm . Driven by Germany imported brushed motor,It provides fast passing experiences and 35-40 persons per minute.With 10mm filling acrylic plus ledStrips , this high entry exit turnstile gate gives an impressive image to visitors.

Product Parameter

Product Model B323
Size 1400*150*980mm
Weight 50.00Kg
Material 2.0mm Japan imported 304 stainless steel surface polish #4
Top Cover 12mm Man made marble
Arm Material 10mm Acrylic
Filling Panel 10mm Acrylic+LED stripe
Driver Germany Imported Brushed Motor+Encoder+Clutch
Pass width 600mm
Pass rate 35-40 Persons/minute
Power supply 24V
MCBF >5,000,000 cycles



Advantage

Aesthetic & Slim Design: Without so many panels, this speed gate has a very simple design. A basic framework  with stainless steel plus filling acrylic decorated with LED stripes  allows this speed turnstile Attractive and easily compatible with enviornment.

Multiple pass mode: 4 basic pass modes are provided. i.e. 1) Access controlled in, Free out  ;2) Accessed in, Accessed out; 3) Free in, Accessed out; 4) Free in, Free out. In power failure,Speed gates will open directly for emergency use.

High Security Level:with 6 pairs of high sensitive infrared sensors, this high speed gates provides a high level security protection. With the help of  unique designed mechanism, arm will stop and return when detecting pedestrian Passing. This can effectively prevent from striking, pinch, bump,etc. unauthorised passing like pass-back,tail gating, Opposite pass are strictly controlled in our system.

Heavy Duty & Longer Life: Equipped with Germany made brushed motor, Our speed gates B323A provide high effecicency outthrough and at least 5,000,000 cycles MCBF.

Wide Integrated:RS485 and dry contact communication intereface allows our speed gates compatible with most prevailing  access control system and integrated with credentials like RFID cards, QR code scanner,fingerprints,Iris,face recognition,etc


Benifits
1. More secure:  with high grade infrared sensor and encoder, our turnstile could provide a more secure passing.

2. High outthrough: Germany imported brushed motor generates high speed open and close,which allows high effective outthrough. 35 to 40 persons per minute  makes this speed gates control and direct
pedestrian flow effectively.

3.Better experiences: Aethestic design, silent working and high effeciency give visitors an amazing user
experiences.

4. Effective access management. High integrated capability and multiple management modes ensure an
effective management for visitors and allow it widely applied in various applications.

5.Cost effective: Our B323A is a cost-effective solution for projects, where entreprise images  are
necessory and budget is limited.
