Sliding Speed Access Control Gate With Finger Print / Face Recognition Function

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number H608
Minimum Order Quantity 1 PC
Price Bargain
Packaging Details Wooden Case Package
Delivery Time 7 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 1400*350*980mm Unlock Time 0.2s
Pass Rate 35p/m Pass Width ≤550mm
Operational Voltage 24V Power Supply 100-240V(AC)
Environment -25~+70℃ Power Consumption 35W
High Light

biometric security system

,

security access gates

,

35p/m Speed Turnstile

Leave a Message
Product Description

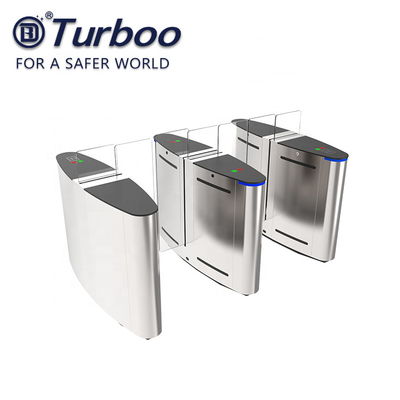

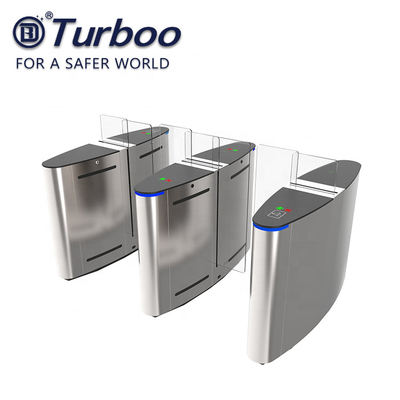

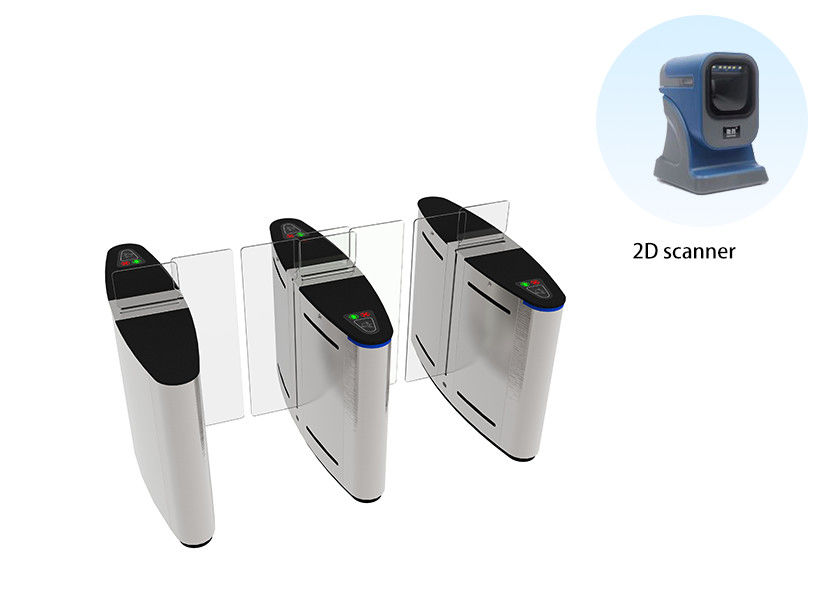

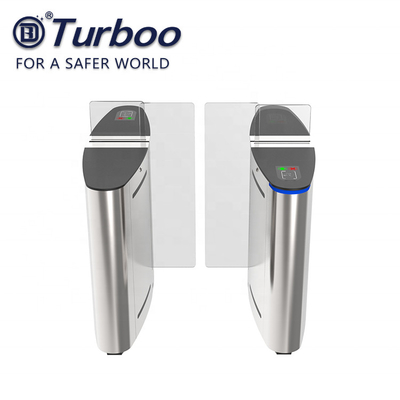

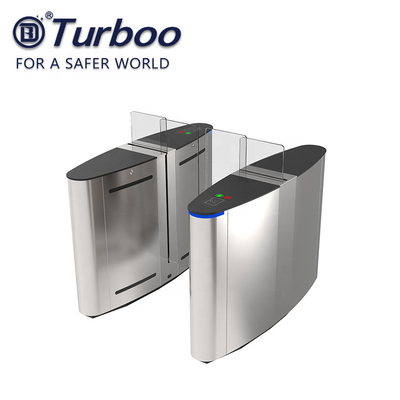

Sliding speed access control gate with finger print and face recognition function







H608 model Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.

Running stablely without noise and mechanical impact.The passing person number of the persons can be set.Several ways of working molds for your demand chosen.

Direction-guide lights in the turnstile to tell you whether the direction to go or not,The standard electrical interface connected with various kinds of reader and writer equipment



Description



All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP)line



Model Number: H608
Product Size: 1400*350*980mm
Pass Width: <=600mm
Net Weight: 95kg
Thickness: 1.5mm
Material: SUS304,Hairline 400#
Top cover Material: 12mm man-made marble
Arm Material: 10mm Transparent Acrylic+LED Strip
Driver: Brushed Motor
Infrared Sensor: 5 pairs
Pass rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000 cycles





FEATURES AND BENEFITS



• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Display has been in use for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

• The barrier can be set to delay closing in 1-60s after a valid card-reading



Application



High class communities, intelligent buildings, hotels, subway station, metro station, etc.



Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.

5. Germany “Optibelt” and American “Gates” is the belt we are using now
