Access control gate turnstile , flap barrier gate , pedestrian barrier gate , flow control gate , SUS304 Stainless steel

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number Y248
Minimum Order Quantity 1 PC
Price Negotiate
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Size 1200*280*980mm Pass Wide <=550mm
Machine Core Germany Belt+Taibang Brand Motor+PC Flap Sensor G-tec Square Shape Sensor +4 Pairs
Throughput Rate 35p/m Power Supply Mingwei 24V 240W
Net Weight 50kg MCBF 5,000,000 Cycles
Motor Brushed Wing Material 15mm Acrylic Barrier
Body Material 1.2 Mm SUS 304 Stainless Steel Communication Interface RS485,Dry Connection
High Light

mechanical swing gate

,

turnstile gate systems

,

Stainless steel Pedestrian Barrier Gate

Leave a Message
Product Description

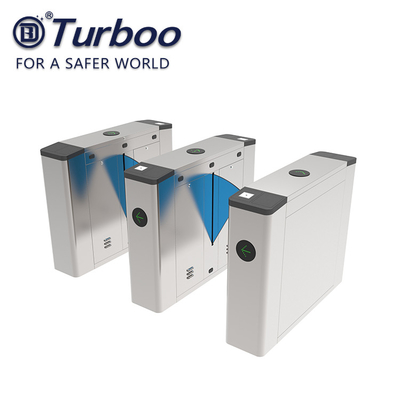

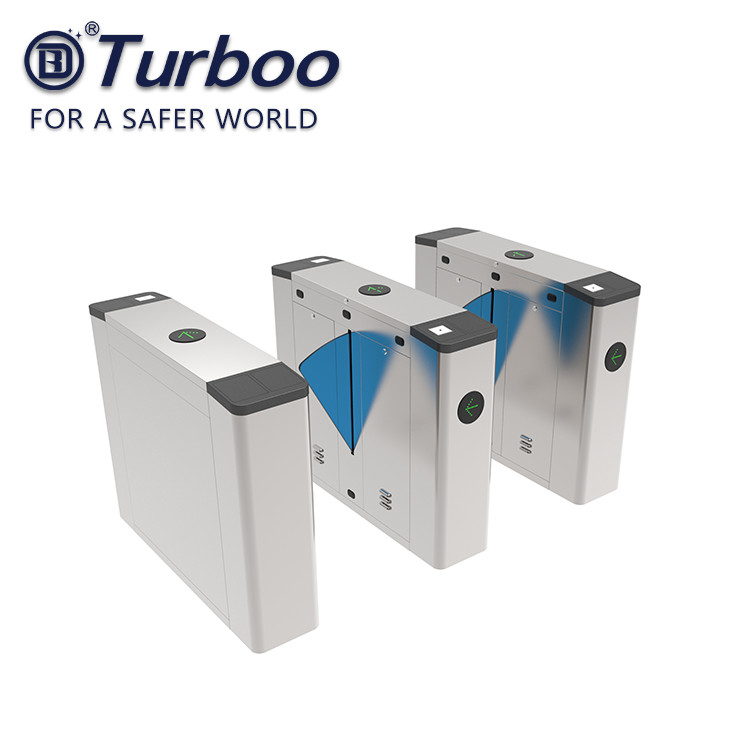

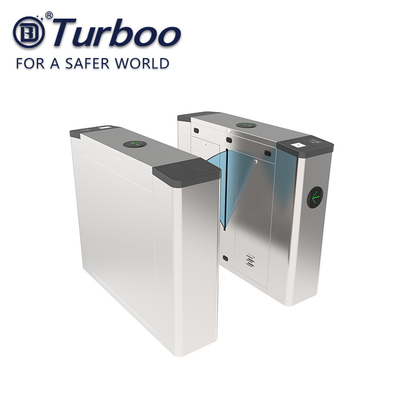

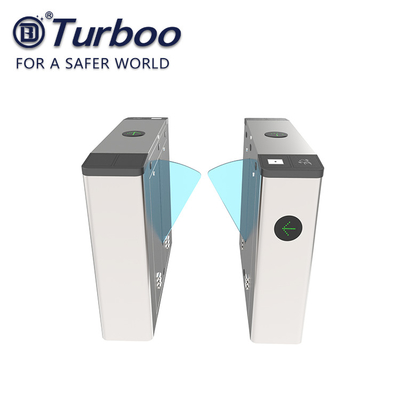

Pedestrian control flap barrier gate CE approval SUS 304 access control system turnstile with RFID





Product Description


The beautiful Speed Gate Speed1 is the thinnest motorized barrier optical turnstile available. The Speed1's slim cabinets are only 120mm wide (about the width of your hand). The turnstile's rounded lines and clear materials enhance the look of any lobby or entrance area and provide excellent sight lines for attendants or guards in case of security events or emergencies.

The Speed1's compact floor footprint allows more lanes to fit in a smaller space. Center expansion cabinets have the same dimensions as end cabinets, allowing space saving multi-lane configurations. The Speed1 optical turnstile maintains the same cabinet dimensions even when providing ADA-compliant passage widths. Barrier panels may be ordered in three heights (900mm, 1200mm or 1800mm) to best match operational requirements.





OPERATING MODES



1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS



1.. Housing and arm: Made in stainless steel AISI 304 o AISI316.

2. PC flap and moulding machine core



Technical Data Y248
Dimension 1200x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 63kg
Input 12v dry contact
