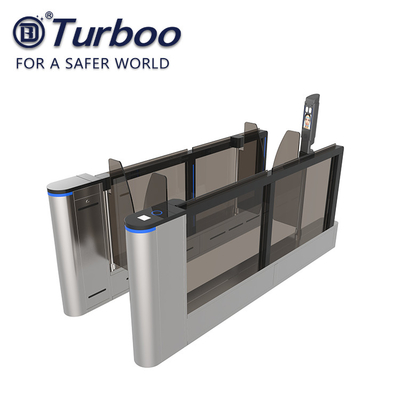

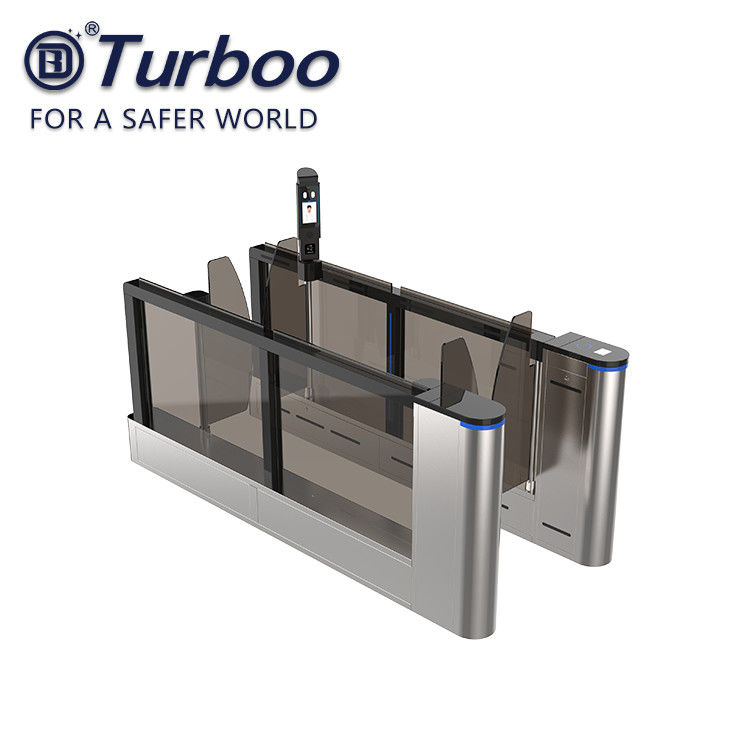

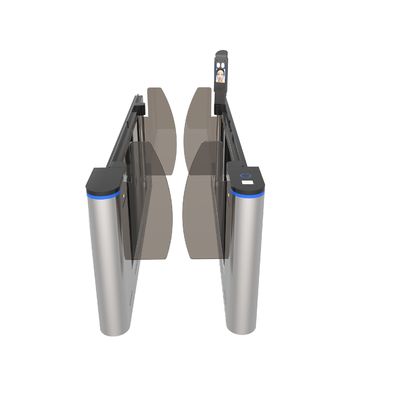

600mm Width Facial Recognition Swing Barrier Turnstile RS485

  • 600mm Width Facial Recognition Swing Barrier Turnstile RS485
  • 600mm Width Facial Recognition Swing Barrier Turnstile RS485
  • 600mm Width Facial Recognition Swing Barrier Turnstile RS485
  • 600mm Width Facial Recognition Swing Barrier Turnstile RS485
Place of Origin: China
Brand Name: Turboo
Certification: CE
Model Number: M300
Minimum Order Quantity: 2 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case Package
Delivery Time: 3~10 Working Days
Payment Terms: L/C, T/T
Supply Ability: 3000 Units Per Month
Product Details
Material: 1.5mm SUS304 Passage Width:: 600mm
Install Place:: Indoor Driving Voltage:: 24 V
Environment:: -25~+70 Passing Speed: 35 Person/min
Interface: RS485,TCP/IP,Dry Contact,Switch Signal Warranty: 12 Months
Color: Black & Grey,Metallic Silver Application: Airport
High Light:

Facial Recognition Swing Barrier Turnstile

,

600mm Width Swing Barrier Turnstile

,

RS485 Pedestrian Swing Gate
Leave a Message
Product Description

High Speed Facial Recognition Swing Barrier Turnstile Gate For Airport And Customs Checking



Product Description



1. Illegal Alarm Function:Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage

2.Anti-pinch function:Barriers auto open when power shut, insure user safety
3. Housing:Turned up-coverage is water-proof and easy maintain
4. Emergency-escape function:The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not
5.Standard input/output port:Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
6. DirectionBig direction arrow plate to show passage condition

Model No.
M300
Dimension
2400*185*960mm
   Material   1.5mm SUS304
Flap material
10mm Grey transparent acrylic
Passage Width
600mm
Passage direction
Single directional/Bi-directional
Passing rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor
Communication interface
RS485, Dry contact
Mechanism
DC Brushed motor
Infrared sensor
9 pairs
MCBF
5 million Cycles
Application
Airports,Hotels, Commercial buldings, etc

Company Information


TURBOO Automation Co. LTD is a high-tech enterprise, which specializes in turnstile gates since 2006. It is TOP 3 manufacturer of automatic swing barrier turnstile, flap barrier gates in China.
We have our own factory 20000 square meters in Shenzhen city, nearly 500 square meters laboratory, 400 square meters showroom. We have more than 250 employees, including 50+ personnels in R & D department. There are more 150+ patents on technical & design. It ensures Turboo to provide high quality turnstile barrier gates and good maintain service.
600mm Width Facial Recognition Swing Barrier Turnstile RS485 0
600mm Width Facial Recognition Swing Barrier Turnstile RS485 1
600mm Width Facial Recognition Swing Barrier Turnstile RS485 2
600mm Width Facial Recognition Swing Barrier Turnstile RS485 3
600mm Width Facial Recognition Swing Barrier Turnstile RS485 4
600mm Width Facial Recognition Swing Barrier Turnstile RS485 5
600mm Width Facial Recognition Swing Barrier Turnstile RS485 6
600mm Width Facial Recognition Swing Barrier Turnstile RS485 7
600mm Width Facial Recognition Swing Barrier Turnstile RS485 8
600mm Width Facial Recognition Swing Barrier Turnstile RS485 9
600mm Width Facial Recognition Swing Barrier Turnstile RS485 10

FAQ

1. Do you have full automatic tripod turnstile?

Yes. All semi-automatic tripod can be changed to full automatic, there is extra costs to do it.

2. How about your company’s actual strength?
We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 50 people, 1 office and 2 factories. Factories and office buildings are more 20000 square meters in total.
3. How about the quality of your products?
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
4. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
5. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
6. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days. The customized products need 15-20 working days.
7. How long is your warranty period?
One-year guarantee & Life-time technology support.
8. How about your package?
Seaworthy wooden case + Foam.
