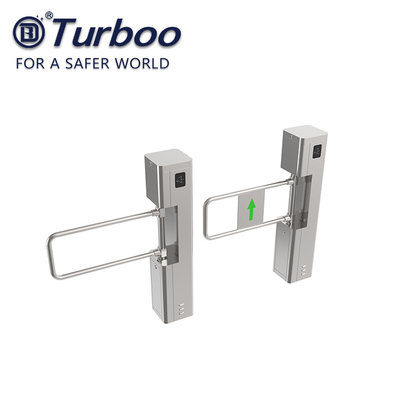

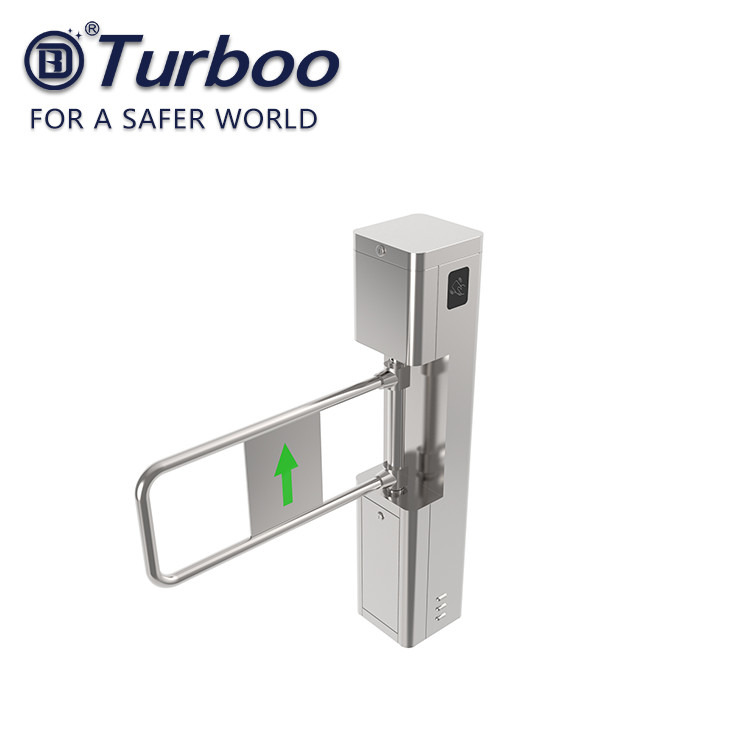

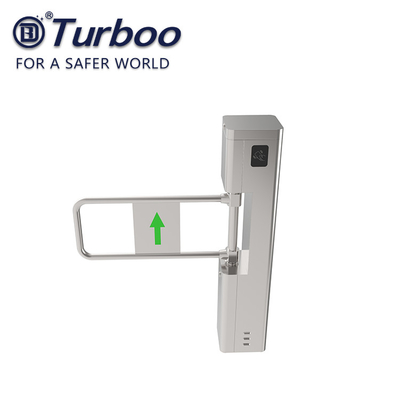

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number DB318
Minimum Order Quantity 2pcs
Price Negotiation
Packaging Details Wooden box
Delivery Time 10-30 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50pcs/week
Product Details
Product Size 200*200*980mm Pass Width 700mm
Net Weight 45kg Thickness 1.5mm
Material: SUS304,HL400 Arm Material SUS303
Pass Rate 40p/m Power Supply 100-240V(AC)
Operational Voltage 24V(DC) Max Power Consumption 50w
Working Temperature -25 To +70 ℃ Unlock Time 0.2s
High Light

security entrance systems

,

drop arm turnstiles

Leave a Message
Product Description



China fatory direct DB318 easy install turnstile with high quality and good price





700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 0

DB318 turnstile is easy to install, the arresting body is rich in materials, the shape of the box body is also diverse, easy to design a very beautiful shape, at the same time cylinder swing brake movement, the use of fine grinding and bright edge technology, suitable for carrying luggage package of pedestrians or bicycles more occasions, and mobility inconvenience special channel.It is also suitable for occasions with high aesthetic requirements.








700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 1700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 2700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 3700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 4

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 5

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 6

Use IC cards, ID card, bar code as automatic identification system.
A direction indicator to guide pedestrians correct and smooth passage
Auto reset function, if no passing during identified card-reading time, the system will reset automatically, and passengers are prohibited to pass until their second identified reading.
Support a variety of permissions control equipment, but also with anti - tag anti - clip and other functions
There is no mechanical collision during the operation of the swing brake, and the noise is relatively small.
The plasticity of appearance form is the strongest in all the brake, the material of the arresting body is rich, the shape of the box body is also diverse, easy to design a very beautiful shape, suitable for the occasion of high requirements for beauty.

OPERATING MODES
1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1.. Housing: Made in stainless steel AISI 304 o AISI316.

2.. Barrier swings-Acrylic, PC , stainless steel frame.

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 7

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 8

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 9





700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 10

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 11



700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 12

700mm Pass Width Swing Barrier Gate Turnstile 50 Watt DB318 Easy Installation 13

1. How about your company’s actual strength?



We are the top 3 in turnstile field in China. We have more than 100 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 5000 square meters in total.


2. Shall we do promissory note settlement?


We can accept confirmation, irreversible promissory note of 15 days at most.


3. How about the lead time?


Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?


13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.

:
5. How about your package?


Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
