Access Control Flap Barrier Gate / Electronic Turnstile Gates Infrared Sensors

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number A221B
Minimum Order Quantity 1 unit
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Model A221B Material 304 Stainless Steel
Thickness Full 1.2mm Or Full 1.5mm Size 1380X310X1005
Passage Width ≤550mm Testing 3.5 Million No Fault
Input 220V,50HZ Or 110 V ,50HZ Driving Voltage 24 V
Environment -20~+70
High Light

drop arm turnstiles

,

security access gates

Leave a Message
Product Description

Top quality flap Barrier Gate Access Control Factory Direct Price Turboo gate/turnstile

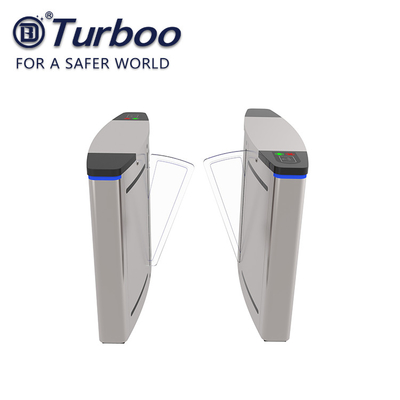

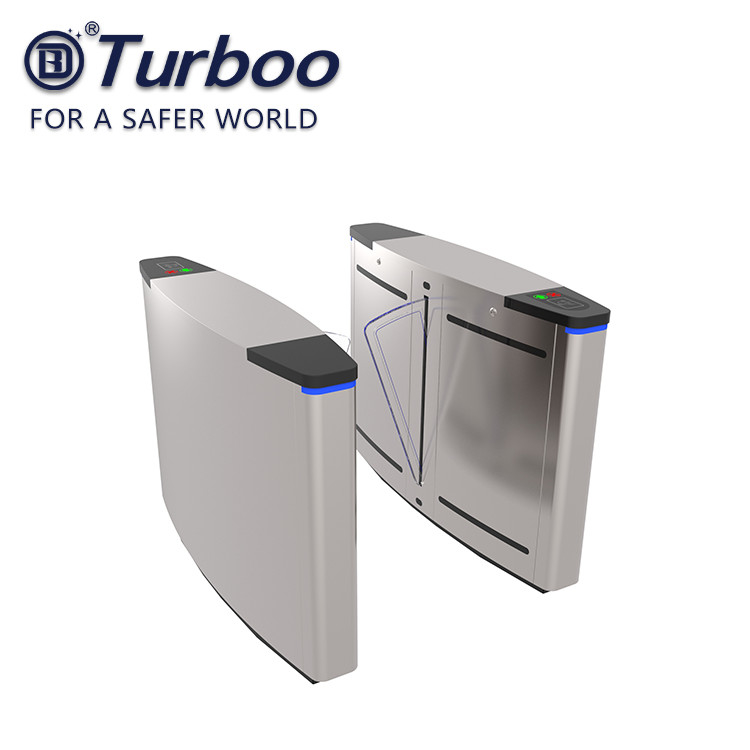

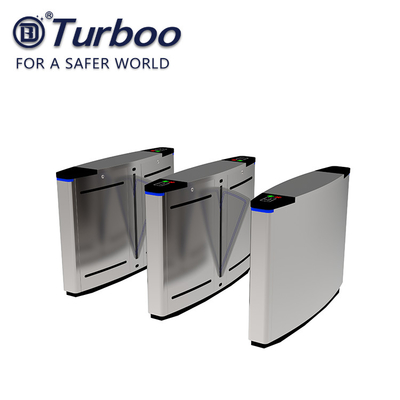

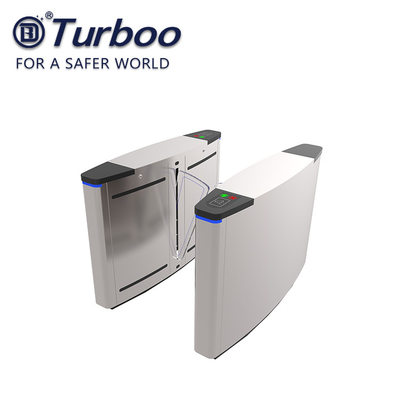

Turboo gate A221B: Stainless steel optical pedestrian flap barrier turnstile gate access control



The product is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, average wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligentized control and management.



Features and Benefits

1. flap barrier gate 304 stainless steel laser molding, cabinet 1.5mm, cover 2.0mm, the overall appearance of oval;
2. paint to cover the most popular Tyrant gold color, science and technology highlight fashion, based on customer need paint in any color
3. The chassis base with black titanium stainless steel base, enhance the overall aesthetic effect;
4. Outsourcing flap barrier gate layer of silica gel, multi-pinch function;
5. From the control section also take into account the person's treatment to prevent folder, pedestrians stopped after pinch-infrared can swipe through their own gate.



Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer


Product description
Technical Data Unit A221B
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X310X1005
Net weight including bars Kg 87


Turboo gate A221A: Stainless steel optical pedestrian flap barrier turnstile gate access control Factory direct price
