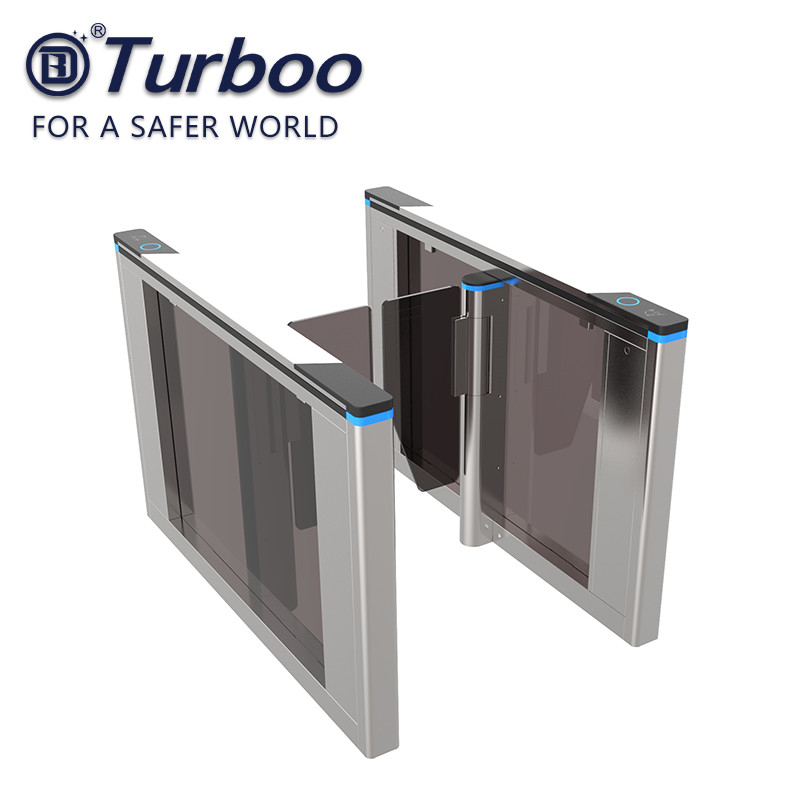

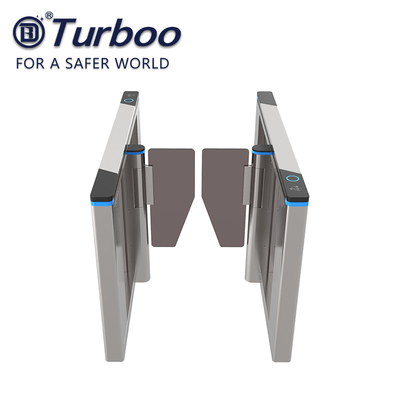

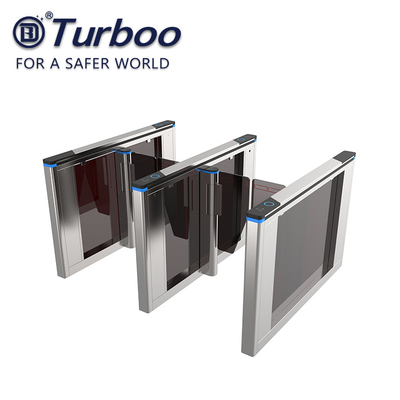

Bi - Directional Paddle Swing Barrier Gate / Security Turnstile Gate CE Approval

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number B325
Minimum Order Quantity 1 unit
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Size 1500*150*960mm
Passage Width ≤900mm Thickness Full 2.0mm
Driving Voltage 24 V Testing 3 Million No Fault
High Light

waist height turnstile

,

drop arm turnstiles

Leave a Message
Product Description



Swing Barrier Gate RFID Card Reader Swing Turnstile,Bi-direction Paddle Gate



 Features and Benefits



  • Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
  • The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
  • In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
  • Optical Turnstiles are suit for elegant and luxury entrance solutions.







Product Description



Technical Data B325
Dimension 1500x150x960mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC

Net weight

55kg
Input 12v dry contact



Communication



• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer
