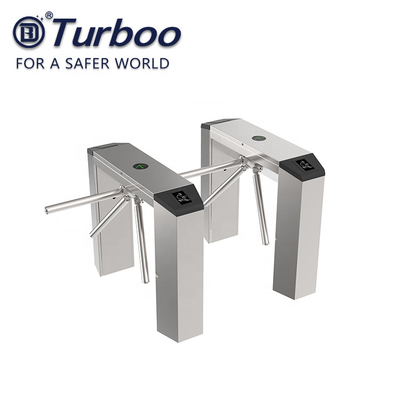

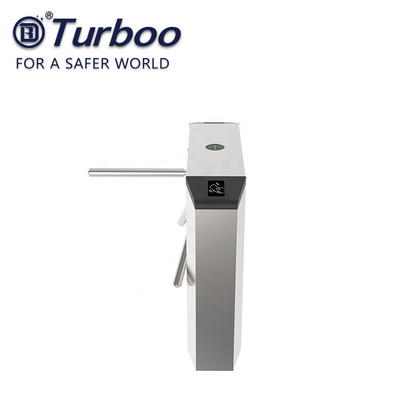

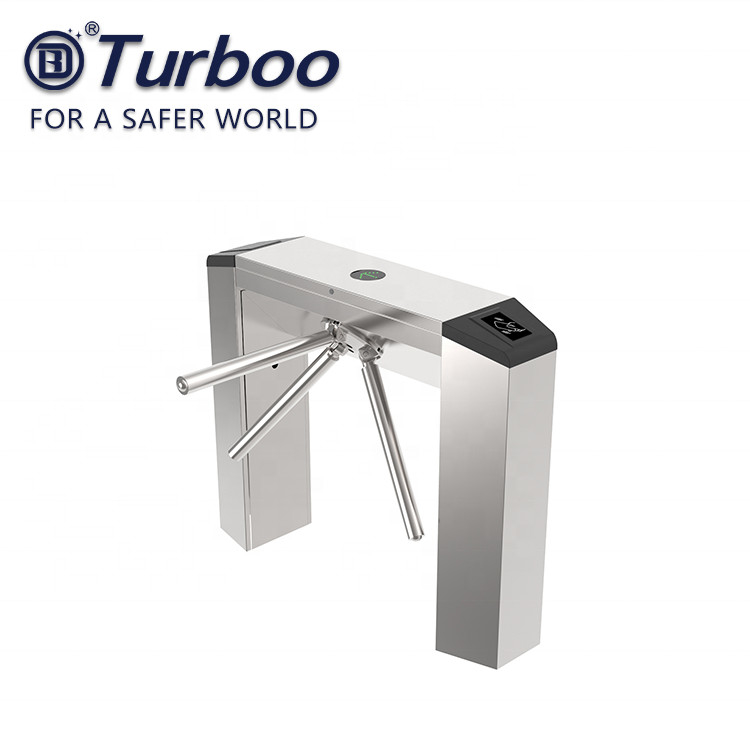

RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building

Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number C142
Minimum Order Quantity Negotiation
Price negotiate
Packaging Details Wooden Case Package
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 1000+PCS PER MONTH
Product Details
Product Size 1200*280*960mm Pass Width <=550mm
Material 1.0mm 304 SUS Hairline #400 Input Voltage 100-240V
Working Voltage 24V Pass Rate 30-35 Persons/minute
Operating Time 0.2 Seconds MCBF 5,000,000 Cycles
Motor Brushless Motor Communication Interface RS485,Dry Contact
Mechanism Solenoid Lock Working Temperature -25 To +70
High Light

pedestrian gate access control

,

turnstile security systems

Leave a Message
Product Description

RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building



Description:



CTO series is an upgrade version special design for construction plant. With its unique design, it can entire solve the bottle-neck of normal turnstile, make the turnstile become a effective tool for construction plant access control. More over, we optimize the mechanical structure and material, all turnstile use bulletproof PC material for barrier and card reader cover, it has higher fatigue resistance and impact resistance.The robust SUS body, anti-corrosive surface and waterproof design guaranteed the reliable operation of CTO series under the extreme outdoor conditions.



Model Number: C142
Product Size: 1200*280*960mm
Pass Width: <=550mm
Net Weight: 35kg
Material: 1.0mm SUS 304 Hailine 400#
Mechanism: Solenoid lock
Pass rate: 30-35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles



OPERATING MODES:


• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



Feature:



• Use of RFID IC cards, ID cards, Barcode or magnet-ic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.



Certification:



RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building 0



Factory:

RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building 1

Showroom:



RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building 2



Dimension Diagram:



RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building 3



Project Case:



RFID Recognition Tripod Turnstile Gate , 100-240V Tripod Barrier Gate 304 SUS , Barrier Gate for Office Building 4







Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Meanwell” or “Fujia”.



4. We take 3M glue imported from American instead of the glass glue which other counterparts use.



5. Germany “Optibelt” and American “Gates” is the belt we are using now.



FAQ:



1. How about your company’s actual strength?



We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.



2. How about your package?


Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.



3. How about the lead time?


Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?


13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
