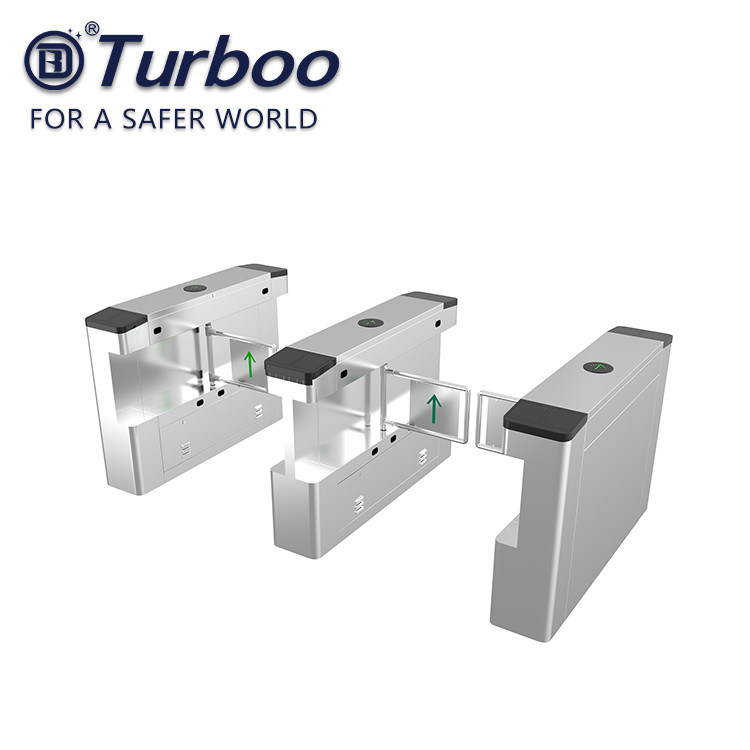

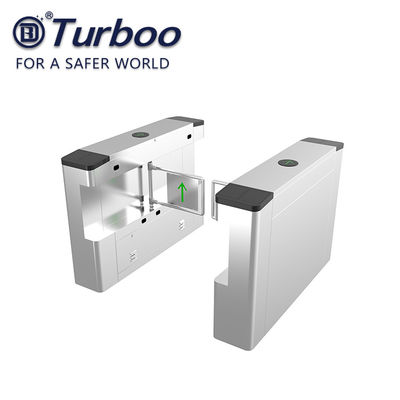

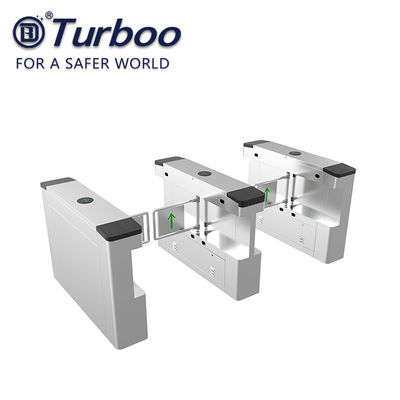

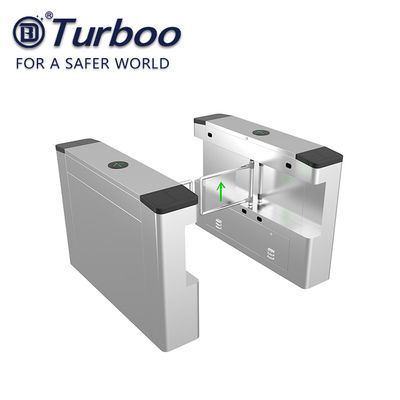

304 Stainless Steel with 6 Pairs Infrared Swing Barrier Gate Y348B

Name: 304 Stainless Steel with 6 Pairs Infrared Swing Barrier Gate Y348B
Brand: Turboo Automation Co., Ltd
SKU: Y348B
Price: Negotiable USD
Availability: InStock

Brand Name:	Turboo
Model Number:	Y348B
MOQ:	1 PC
Price:	Negotiable
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE, ISO9001,FCC,RoHS,etc.

Size:

1200x280x980mm

Material:

304 Stainless Steel

Power Supply:

24V 150W

Package:

Wooden Box

Temperature:

-25~+70℃

Transit Speed:

35 Persons/min

Movement:

FD Brushless Integrated Swing Gate

Time Needed For Opening:

0.2 Seconds

Packaging Details:

Wooden box/ Heavy carton package

Supply Ability:

1000 units per month

Highlight:

316SS drop arm turnstiles

SS316 security entrance systems

316 stainless steel Swing Barrier Gate

Product Description

High speed swing gate with 920mm pass width for disabled people and motorbike

Product Description

Technical Data	Y348B
Dimension	1200x280x980mm
Unlock time	0.2s
Passage width	600-900mm
Throughput rate	35p/m
Power supply	24v 150w
Movement	FD brushless integrated swing gate
Material	SUS 304
Barrier panel	0.9mm SUS304
IR sensor	6 pairs
Working temperature	-25~70 °C
Motor	FD brushless DC 90k 40w
Net weight	single movement 59kg/ dual 62kg
Input	12v dry contact

Features and Benefits

1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

8. The barrier can be set to delay closing in 1-60s after a valid card-reading

OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked

304 Stainless Steel with 6 Pairs Infrared Swing Barrier Gate Y348B
