Electric Lock Baffle Turnstyle Automatic Gates 304 Stainless Steel Material

Place of Origin: Guangdong
Brand Name: Turboo
Certification: CE
Model Number: E343
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50pcs/week
Product Details
Size: 1500*180*1020mm Material: 304 Stainless Steel
Input: 220V ,50Hz Temperature: 30 Below Degree To 60 Degree
Transit Speed: 35 Persons/min Reliability Of The Core: 3 Million ,no Fault
Time Needed For Opening: 0.2 Seconds
High Light:

waist height turnstile

,

drop arm turnstiles

Leave a Message
Product Description

Flexible safe access control Swing Barrier gate sensor Electric lock baffle turnstyle

Intelligent swing barrier is a brand-new product of our company. Tt has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations, gym and other high level venues, our swing barrier can be integrated with modern intelligent management system to realize the intelligent management of access control. Swing barrier can be classified into cylindrical swing barrier and bridge- type swing barrier.Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.

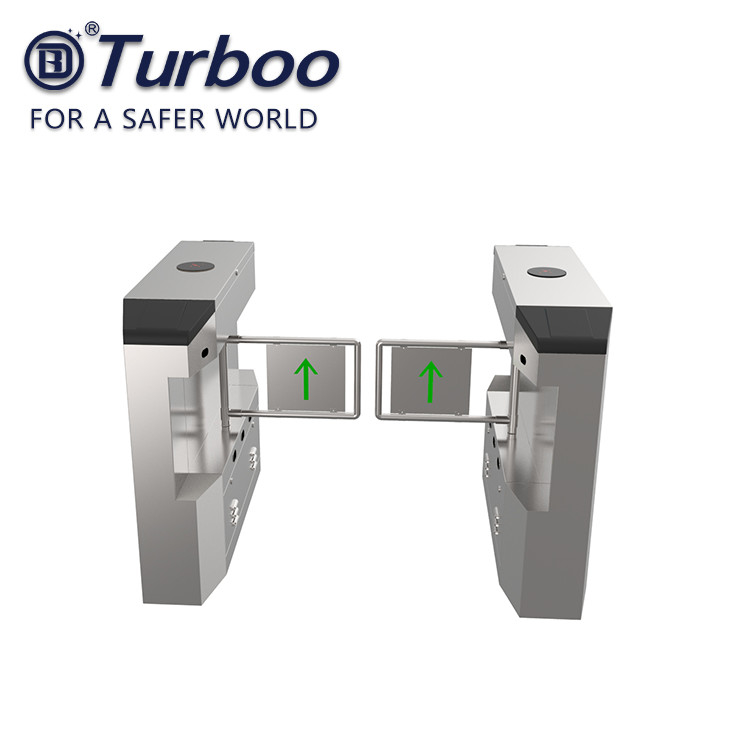

Electric Lock Baffle Turnstyle Automatic Gates 304 Stainless Steel Material 0

OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1. Housing:Made in stainless steel AISI 304 o AISI316.

2. Barrier swings-Acrylic, PC, stainless steel frame.



Technical Data B302
Dimension 1500x180x1020mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 62kg
Input 12v dry contact

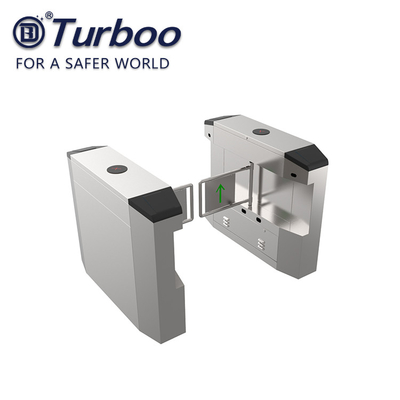

Electric Lock Baffle Turnstyle Automatic Gates 304 Stainless Steel Material 1





Project case

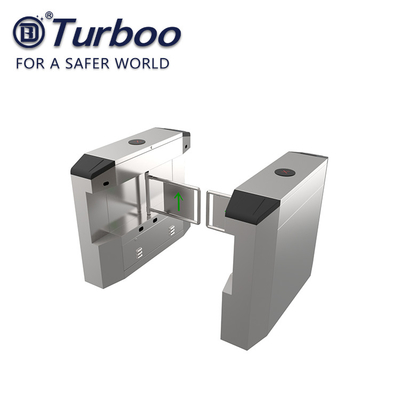

Electric Lock Baffle Turnstyle Automatic Gates 304 Stainless Steel Material 2
