LED Light Swing Barrier Turnstile Access Control Systems Multiple Infrared Sensor

Place of Origin: Guangdong
Brand Name: Turboo
Certification: CE
Model Number: E343
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50pcs/week
Product Details
Size: 1500*180*1020mm Material: 304 Stainless Steel
Input: 220V ,50Hz Temperature: 30 Below Degree To 60 Degree
Transit Speed: 35 Persons/min Reliability Of The Core: 3 Million ,no Fault
Time Needed For Opening: 0.2 Seconds
High Light:

drop arm turnstiles

,

security entrance systems

Leave a Message
Product Description

Multiple infrared sensor 12V LED light access barrier swing barrier turnstile

The intelligent flap barrier is one of the serial products of intelligent passage management series from Our Company. It possesses superiority incomparable with the traditional management mode.

The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations, harbors and guest house.They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.

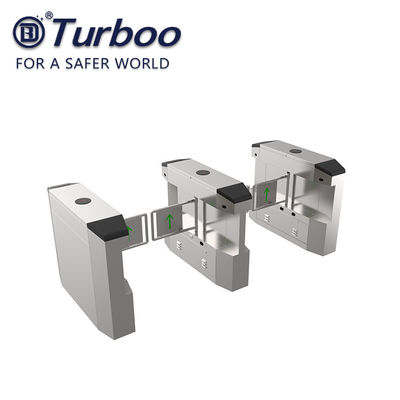

LED Light Swing Barrier Turnstile Access Control Systems Multiple Infrared Sensor 0

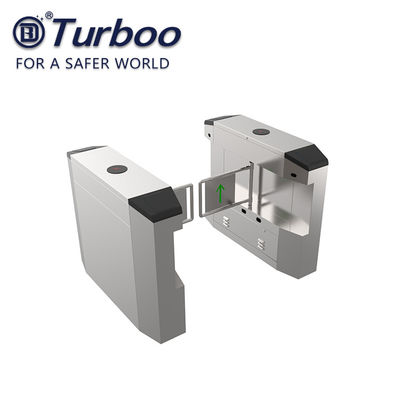

LED Light Swing Barrier Turnstile Access Control Systems Multiple Infrared Sensor 1

OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1. Housing:Made in stainless steel AISI 304 o AISI316.

2. Barrier swings-Acrylic, PC, stainless steel frame.



Technical Data B302
Dimension 1500x180x1020mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 62kg
Input 12v dry contact

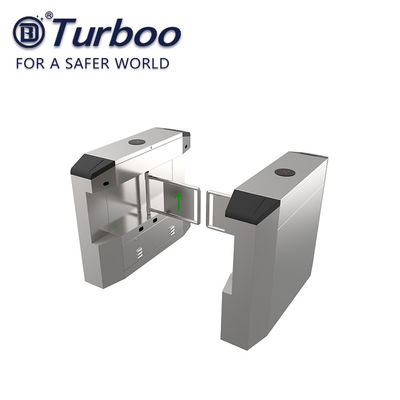

LED Light Swing Barrier Turnstile Access Control Systems Multiple Infrared Sensor 2





Project case

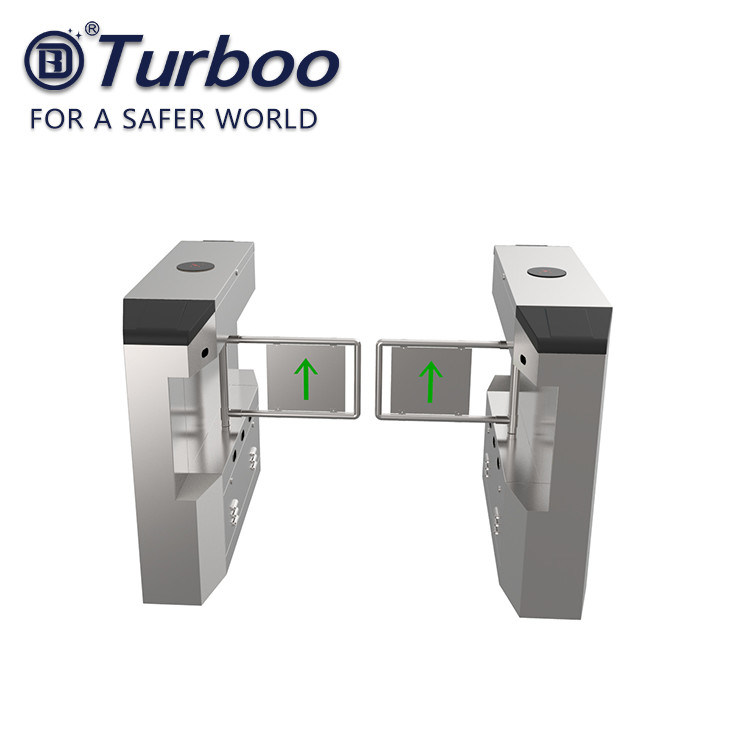

LED Light Swing Barrier Turnstile Access Control Systems Multiple Infrared Sensor 3
