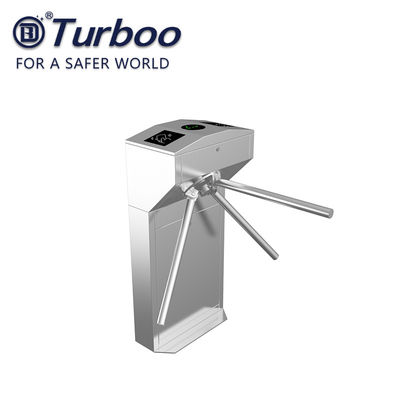

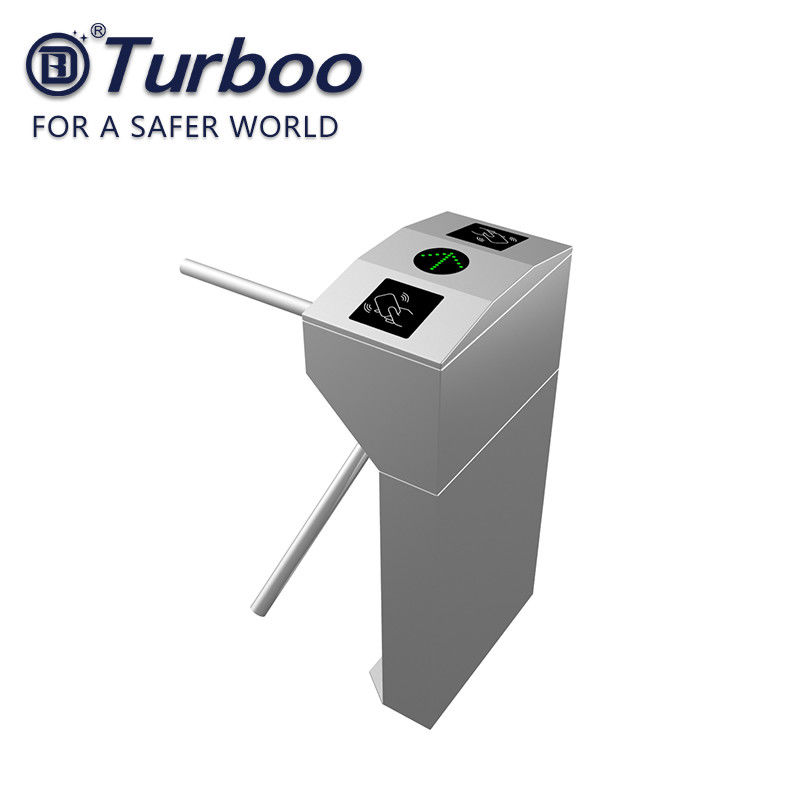

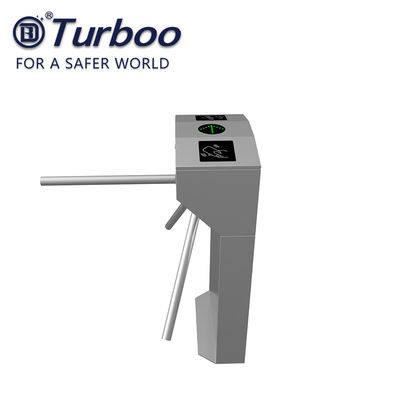

Semi - Automatic 3 Arm Turnstile / Waist Height Turnstile For Office Building

Place of Origin: SHENZHEN ,China
Brand Name: Turboo
Certification: CE,ISO9001
Model Number: HL145
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden case package,1450*330*1130MM
Delivery Time: 1 Week
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50PCS/WEEK
Product Details
Thickness: Full 1.2mm Or Full 1.5mm Size: 485*280*980mm
Passage Width: 550mm Package: Wooden Case Package(Tripod Turnstile)
Testing: 3 Millions No Fault Input: 220V,50HZ Or 110 V ,50HZ
Driving Voltage: 24 V Environment: -25~+70
High Light:

waist height turnstile

,

pedestrian gate access control

Leave a Message
Product Description

304 SS Waist-High Semi-Automatic Tripod Turnstile With Physical Access Control System For Office Building Or School

Features and Benefits



• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.





Communication



• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer

Product description

Technical Data Unit HL145
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 485X280X980
Net weight including bars Kg 49
