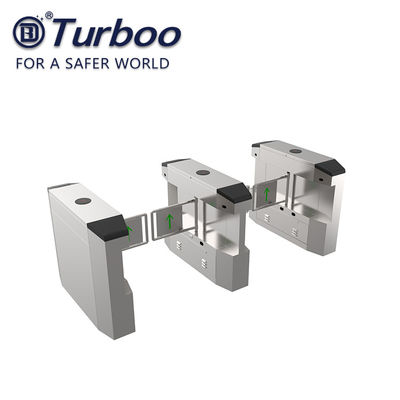

High Efficient Speed Gate Turnstile With 35 Persons / Min Transit Speed

Place of Origin: Guangdong
Brand Name: Turboo
Certification: CE
Model Number: E343
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50pcs/week
Product Details
Size: 1500*180*1020mm Material: 304 Stainless Steel
Input: 220V ,50Hz Temperature: 30 Below Degree To 60 Degree
Transit Speed: 35 Persons/min Reliability Of The Core: 3 Million ,no Fault
Time Needed For Opening: 0.2 Seconds
High Light:

drop arm turnstiles

,

security entrance systems

Leave a Message
Product Description

Highly Efficient Speed pedestrian channel gate machine road barrier with rfid card

1. The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;

2. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.

3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.

5. The bicycle delay function: prevent the gate from hitting the bicycle;

6. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.

7. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.



High Efficient Speed Gate Turnstile With 35 Persons / Min Transit Speed 0

High Efficient Speed Gate Turnstile With 35 Persons / Min Transit Speed 1

OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1. Housing:Made in stainless steel AISI 304 o AISI316.

2. Barrier swings-Acrylic, PC, stainless steel frame.



Technical Data B302
Dimension 1500x180x1020mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 62kg
Input 12v dry contact



High Efficient Speed Gate Turnstile With 35 Persons / Min Transit Speed 2





Project case

High Efficient Speed Gate Turnstile With 35 Persons / Min Transit Speed 3



FAQ



1. How about your company’s actual strength?
We are the top 3 in turnstile field in China. We have more than 100 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 5000 square meters in total.

2. How about the quality of your products?
We are in the highest level of quality with the most competitive price. The remark of standard of the product’s material which we use can be higher than 80. For example, we use China-Japan Baoxin stainless steel, Taiwan Minwei electric supplier, belt import from German, 3M clue import from America and so on. We also have some successful cases: We installed 460 Turnstiles in Philippines’ 48 cinemas. The after-sales maintain fee is lower than RMB20000.

3. How about your price?
We are in the highest level of quality with the most competitive price. The price must make you satisfaction. For example,the price of our electric vertical Tripod Turnstile is only RMB1800. But our Stainless steel supplier is as same as JSST. The way we combine the Brake bar with Turntable is using solid stainless lock to welding them together. (while other company use foundry iron). We also have the sole ownership of refined welding, refined bright edge procession. Meanwhile, our company has carried out 7S standard to ensure the good quality, and cost reduction.

4. We have already had some supplier
Well understood, but if we supply the products of the highest level of quality with the most competitive price among all competitor, could you take it into account? For example,a type of single machine of flap barrier Turnstile is really in a low price. But our stainless steel supplier is same as JSST. The brand of movement belt is America Gates. Power supply supplier is a Premium Brand--Fujia, it’s also the same supplier with JSST. We have the structure of up and down U form double fixed movement exclusively, which makes Turnstiles operate more stable. Meanwhile, our company has carried out 7s standard to ensure the good quality, and cost reduction.

5. How to ensure the quality when you supply the low price for us?
You can be at ease for that, our low price doesn’t means bad quality. Firstly, 90% of our process is independent processing production. Secondly, carrying out standardization mass production can reduce our cost. Thirdly, our factories locate in remote area, it reduce our cost of workman and space. Fourthly, carry out 7s standard can ensure the good quality and cost reduction. Finally, our standardization mass production can keep the consistency of our products’ quality. So our low price is benignant, we do not give the low the price by jerry-build(cheating on workmanship and materials).


6. How do you do after-sale service?
If the problem is caused by design shortcomings and quality issues, we will go to the site at our own expense. That will urge us to solve problems at all, will not allow the same problem happen again. If its some little problems, we have professional after-sale group to help you solve the problem by long distance, until we can satisfy you.

7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.

8. Shall we do promissory note settlement?
We can accept confirmation, irreversible promissory note of 15 days at most.

9. Can we pay after we install the machine?
I am afraid we can’t. Because we are manufacturer with low profits. If you’re worried about it, we can finish payment under logistics control.

10. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.

11. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.

12. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
