Less Maintenance Electronic Turnstile Gates / RFID Barrier Gate Compact Design

Place of Origin: Guangdong
Brand Name: Turboo
Certification: CE
Model Number: E343
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50pcs/week
Product Details
Size: 1500*180*1020mm Material: 304 Stainless Steel
Input: 220V ,50Hz Temperature: 30 Below Degree To 60 Degree
Transit Speed: 35 Persons/min Reliability Of The Core: 3 Million ,no Fault
Time Needed For Opening: 0.2 Seconds
High Light:

drop arm turnstiles

,

security entrance systems

Leave a Message
Product Description

Less Maintenance Electronic Swing Turnstile Entrance Control pedestrian Baffle Gate Turnstile

  • producted by computer numerical control laser cutting machine
  • Rotation direction:both directions(you can choose the direction)
  • Brake rod drive: The digital way
  • working environment:outdoor/indoor
  • Gate opening time:0.2 second
  • Running stable, little noise and no mechanical impact
  • Various working means can be set in the control panel menu, namely: Bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
  • It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
  • Card reading memory or card reading without memory function can be set in the control panel menu according to your request.
  • Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate.
  • Optional:
    1) Counter and counter display
    2) Access controller or card reader
    3) Key by-pass.

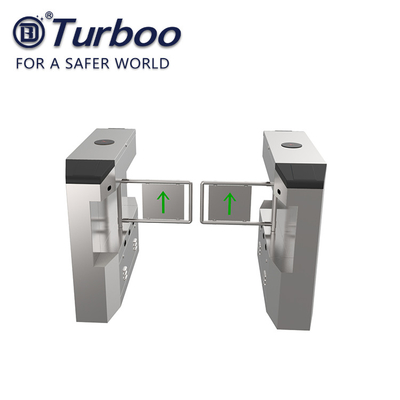

Less Maintenance Electronic Turnstile Gates / RFID Barrier Gate Compact Design 0

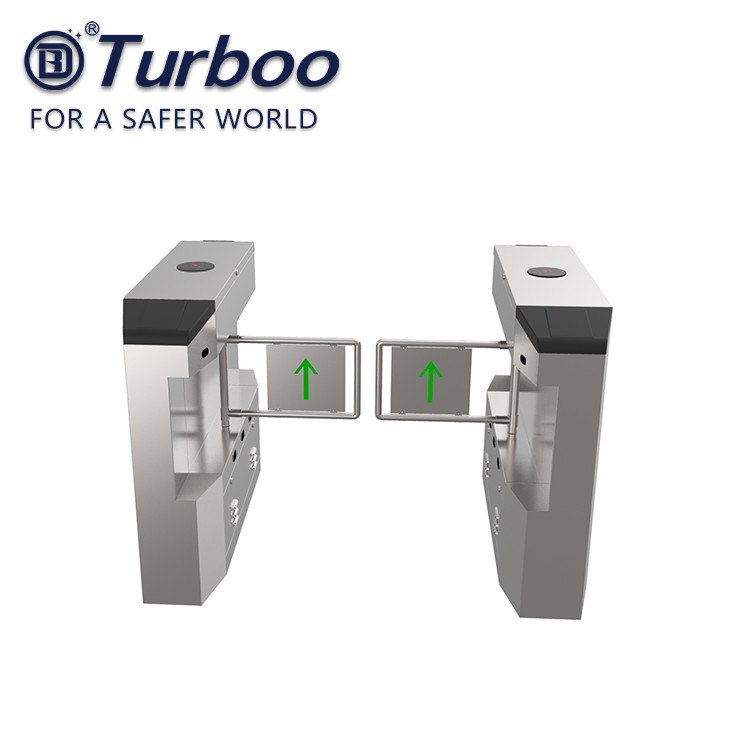

Less Maintenance Electronic Turnstile Gates / RFID Barrier Gate Compact Design 1

OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1. Housing:Made in stainless steel AISI 304 o AISI316.

2. Barrier swings-Acrylic, PC, stainless steel frame.



Technical Data B302
Dimension 1500x180x1020mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 62kg
Input 12v dry contact

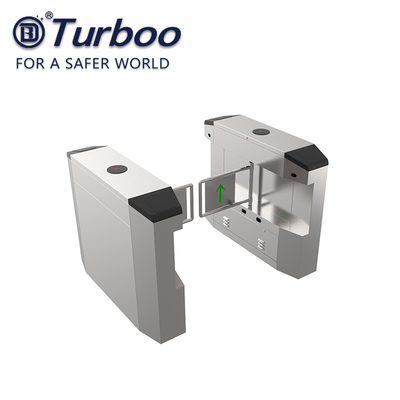

Less Maintenance Electronic Turnstile Gates / RFID Barrier Gate Compact Design 2





Project case

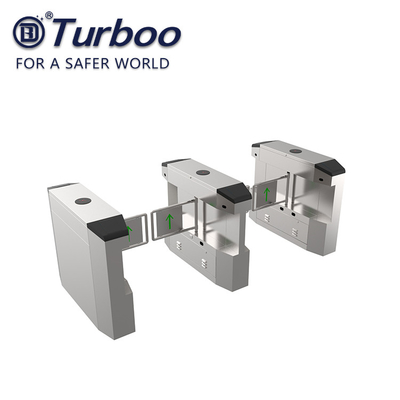

Less Maintenance Electronic Turnstile Gates / RFID Barrier Gate Compact Design 3
