Bidirectional Waist High Turnstile Mechanism Security Barrier Gate Entry Systems

Place of Origin: Shenzhen, China
Brand Name: Turboo
Certification: CE, ISO9001
Model Number: EL128
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case package
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 2000 units per month
Product Details
Size: 480X280X960 Temperature: -20~+75
Material: 304/316 Stainless Steel Input: 220V 50Hz
High Light:

waist height turnstile

,

drop arm turnstiles

Leave a Message
Product Description
Semi-automatic uni or bi-directional mechanism security barrier gate entry systems



Features and Benefits

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.

• Display has been in use for statistics and numbers

• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.



Product Description

Product description for TCPIP And RFID Support Tripod Turnstile For University Dormitory

Technical Data Unit EL128
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 480X280X960
Net weight including bars Kg 33

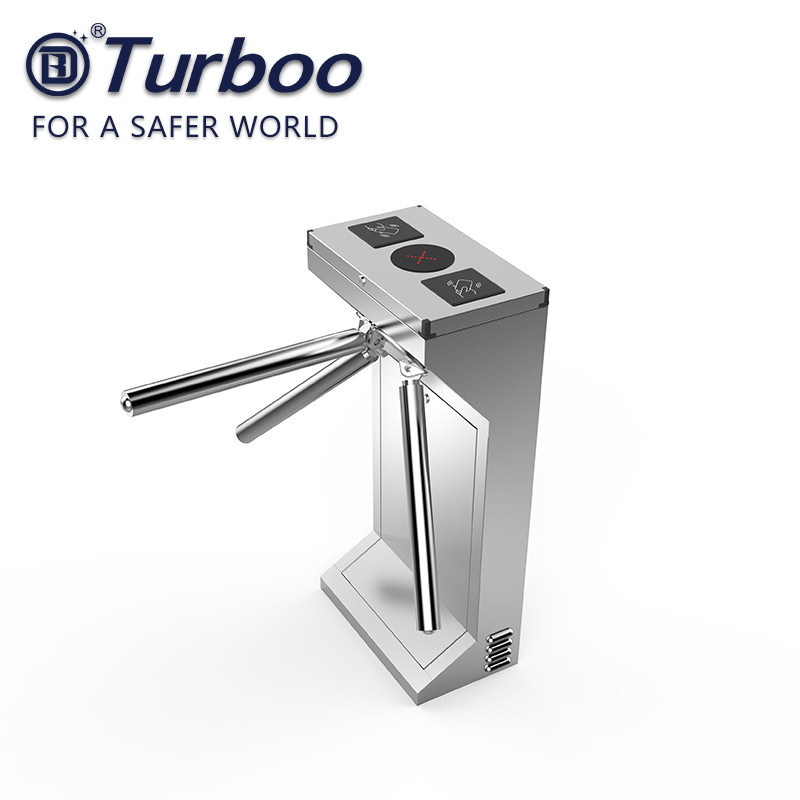

Bidirectional Waist High Turnstile Mechanism Security Barrier Gate Entry Systems 0





Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer

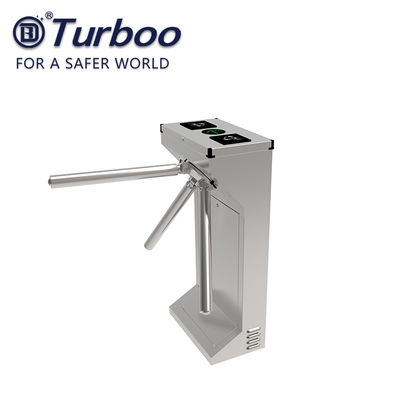

Bidirectional Waist High Turnstile Mechanism Security Barrier Gate Entry Systems 1

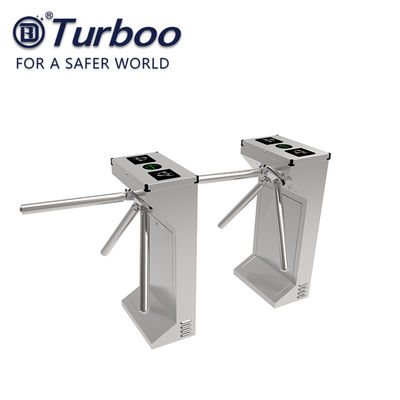

Bidirectional Waist High Turnstile Mechanism Security Barrier Gate Entry Systems 2
