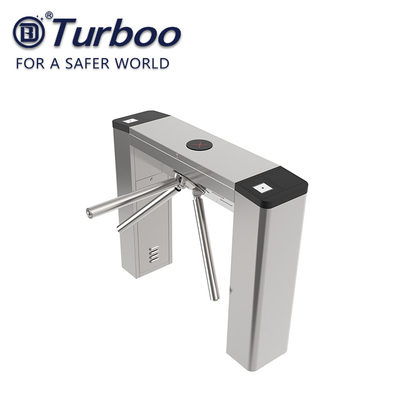

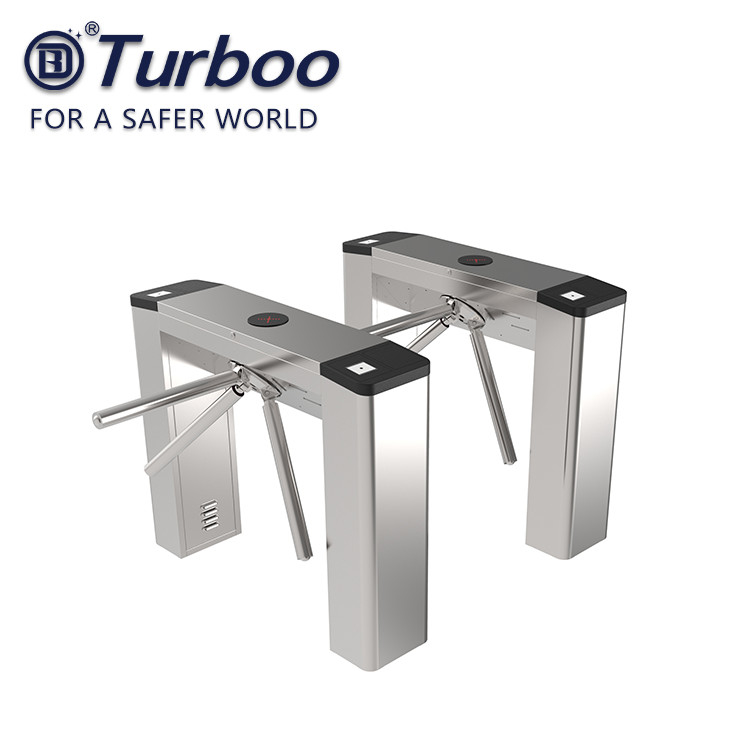

Energy - Saving Tripod Pedestrian Access Gate Bridge Type For Public Areas
Size: | 1300x280x980mm | Material: | 304/316 Stainless Steel |
---|---|---|---|
Input: | 220V ,50Hz | Package: | Wooden Box |
Temperature: | -25~+70℃ | Transit Speed: | 35 Persons/min |
Reliability Of The Core: | 3 Million ,no Fault | Time Needed For Opening: | 0.2 Seconds |
High Light: | pedestrian gate access control,turnstile security systems |
Our products and solutions promote energy-savings, centralised control, comfort, convenience, added security to customers across the globe.
Smart Parking system, smart access Control System is a must-have for any modern residential city. Our technology is designed to be conveniently hidden from view, while the control panels come in a variety of colours, styles, and finishes to fit any modern city. The technology is designed to be completely unobtrusive, while complimenting the design and providing users with convenience, security, and energy efficiency. All of your systems can be controlled from elegant panels, or Android and iOS devices. This control can take place not only in the parking, but also can be smart automation. We boast a large number of control modules allowing the ultimate flexibility in design, and can tailor our smart system solutions to your exact requirements

Technical Data | Y148 |
Dimension | 1300x280x980mm |
Unlock time | 0.2s |
Passage width | ≤550mm |
Throughput rate | 35p/m |
Power supply | 100~240v |
Operational voltage | 24v |
Max power consumption | 35w |
Frequency | 50~60hz |
Prectection level | 44ip |
Working temperature | -25~70 °C |
Electro-magnetic drive | DC |
Net weight | 63kg |
Input | 12v dry contact |
Features and Benefits
1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
3. Display has been in use for statistics and numbers
4. With voice and strobe light alerts
5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
8. The barrier can be set to delay closing in 1-60s after a valid card-reading
OPERATING MODES
1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
MATERIALS
1.. Housing and arm: Made in stainless steel AISI 304 o AISI316.
