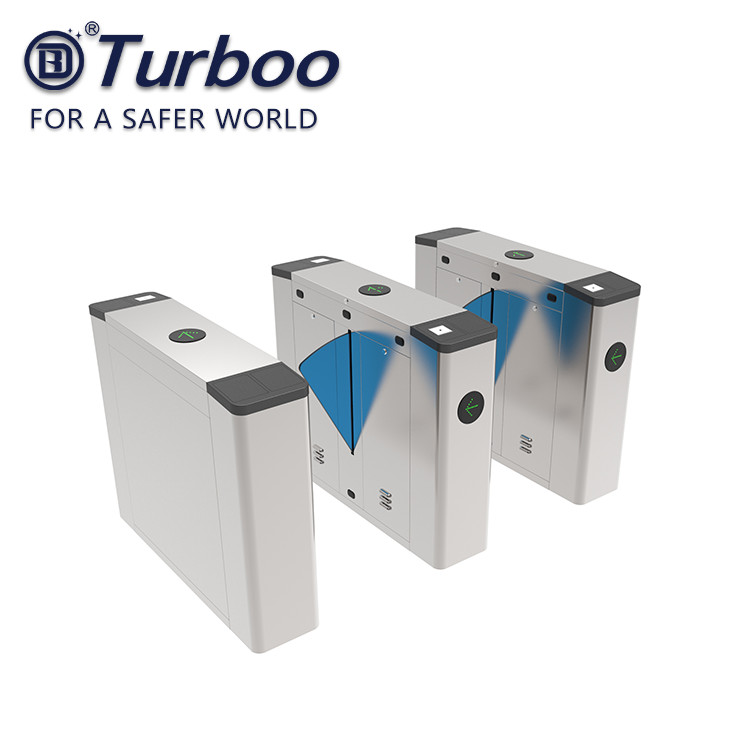

Intelligent Automatic Flap Barrier Gate High Speed With Smart Card Door
|Size:||1200x310x980mm||Material:||304/316 Stainless Steel|
|Input:||220V ,50Hz||Package:||Wooden Box|
|Temperature:||-25~+70℃||Transit Speed:||35 Persons/min|
|Reliability Of The Core:||3 Million ,no Fault||Time Needed For Opening:||0.2 Seconds|
controlled access gates,
rfid security gate
Our turnstiles can be used bi-directionally on one side thanks to the electromechanical mechanism. The choice of direction can be easily controlled by the end users. Remote access can be granted or removed independently from the person making the change. All mechanical parts and electromechanical control systems are manufactured in our Turboo facilities. All Tansa Tripod Tournaments have TSEK, ISO and CE certificates.
- the system automatically canceled this access permissions , reset time value can be set up on line
- A direction indicator, showed that pedestrian access to the current status of, and guide pedestrian's
- correct, fast trip
- Auto show has been in use for statistics and numbers
- with voice and strobe light alerts
- System with power, standby power started to open the channel gate in state- a transparent channel
- A combination of infrared sensors and police anti-illegal entry into pedestrian access ,
- the protection of pedestrians smooth and the prevention of the channel following function
- With other models of channel gate in the same system in use
|Max power consumption||35w|
|Working temperature||-25~70 °C|
|Input||12v dry contact|
Features and Benefits
1. It has a clear and definite indicating function for the passenger, and it is displayed directly and visually on LED with passing or barring indication for passenger.
2. The entire system runs smoothly, with a low noise and free of mechanical impact.
3. Control of the turnstile is achieved usually by an electro-mechanism mounted within the top section of the flap barrier and accessible by open the top cover. Only mechanical control is also available.
4. It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
5. A positive action lock/anti-tailgating function which prevents two passages at one time.
6. The flap barrier is provided with a standard electric interface and is easily integrated into a system with write/read facilities such as magnetic card, bar code card, ID card, IC card or biometric device.
7. Two or one direction can be controlled by switch-button and access controller.
8. It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of flap barrier may be set up with the software.
9. The mechanism is locked until a valid open signal is received.
10. The wing of the flap barrier can drop down automatically when the power is off. When the power is on again, the arms can also close automatically. Fail-safe or fail-lock functions: The mechanism will lock/unlock the flap barrier flap in one or both directions in case of power failure.
1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
1.. Housing and arm: Made in stainless steel AISI 304 o AISI316.
2. PC flap and moulding machine core
