Semi - Automatic Tripod Turnstile Gate Integrated with Access Control System

Place of Origin: Guangdong
Brand Name: Turboo
Certification: CE
Model Number: EL128
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden box/ Heavy carton package
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50pcs/week
Product Details
Size: 480x280x1000mm Material: 304/316 Stainless Steel
Input: 220V ,50Hz Package: Wooden Box
Temperature: -25~+70℃ Transit Speed: 35 Persons/min
Reliability Of The Core: 3 Million ,no Fault Time Needed For Opening: 0.2 Seconds
High Light:

pedestrian gate access control

,

turnstile security systems

Leave a Message
Product Description
Tailing gating vertical semi-tripod turnstile with access control system

Product Description

Tripod turnstile, one kind of pedestrian turnstiles, is also known as three-roller turnstile and three-rod turnstile. The product comprises stainless steel casing, electronic control for machine core, aluminum plate for turnstile rod, etc. It can be widely in various kinds of entrance and exit situations by combining with various identification and verification equipment. The tripod turnstile is characterized by long fixed rod and limited channel width for the passage of pedestrians and small luggage rather than vehicles; a single set can form one channel to save the budget; its structure is simple for easy maintenance and installation; the product is provided with fire-fighting couplings for linkage; it is also provided with hydraulic shock absorption device to reduce operation noises and abrasions; after swiping cards, the turnstile road rotates to strictly enforce the function of opening once for one person; it is provided with 60° anti-rotation function to prevent reverse intrusion; and the product can be directly used in open-air situations.

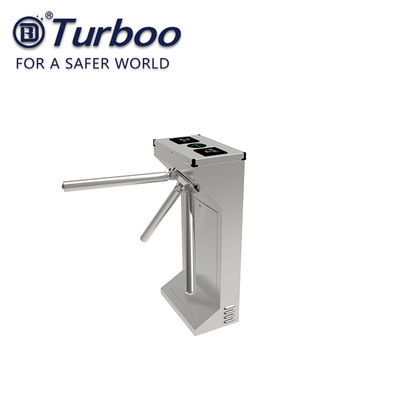

Semi - Automatic Tripod Turnstile Gate Integrated with Access Control System 0

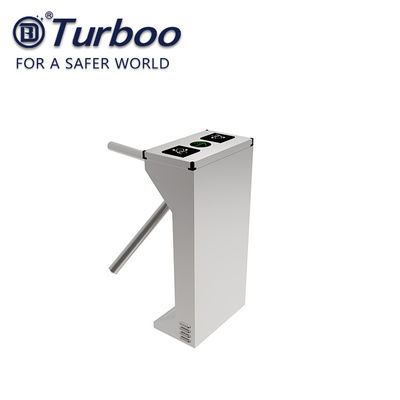

Semi - Automatic Tripod Turnstile Gate Integrated with Access Control System 1

Technical Data YL121
Dimension 480x280x1000mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 40kg
Input 12v dry contact





Features and Benefits



1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

8. The barrier can be set to delay closing in 1-60s after a valid card-reading



OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1.. Housing and arm: Made in stainless steel AISI 304 o AISI316.

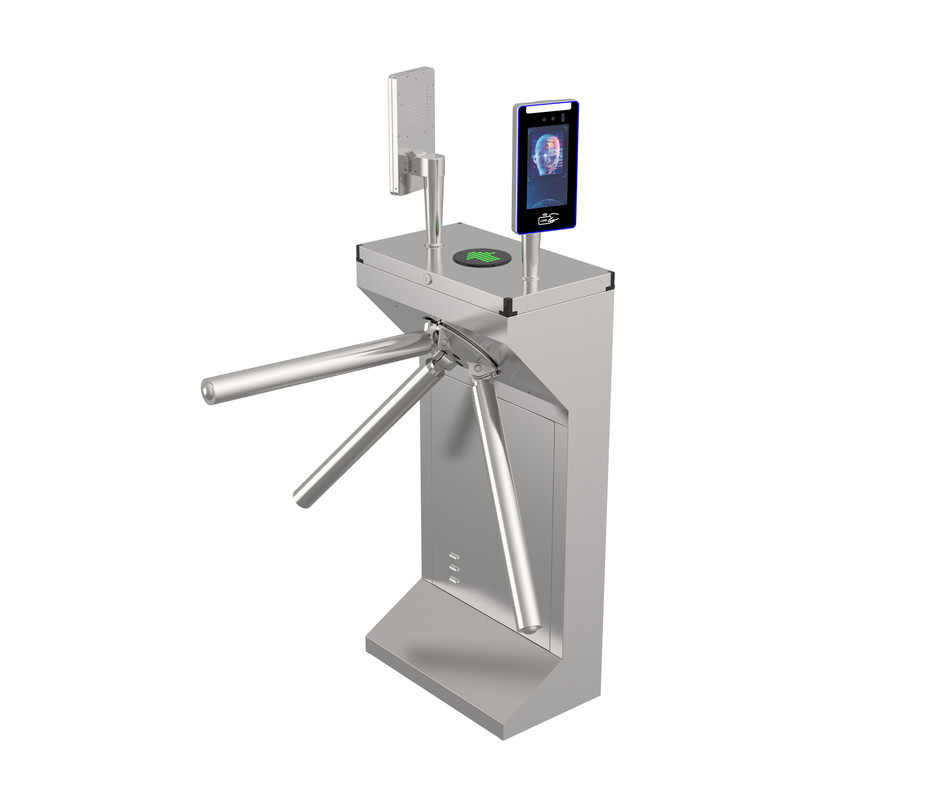

Semi - Automatic Tripod Turnstile Gate Integrated with Access Control System 2





Company profile



TURBOO Gate & Door Automation Co., Ltd is a high-tech enterprise which

specializes in R & D, manufacturing sales and services of gate automation

products in China. We have been involved in gate automation since 2006.

TURBOO has been carrying out the modern mode of enterprise management,

efficient way of product development as well as strict quality control system,

which has made TURBOO products and services continuously top ranking.

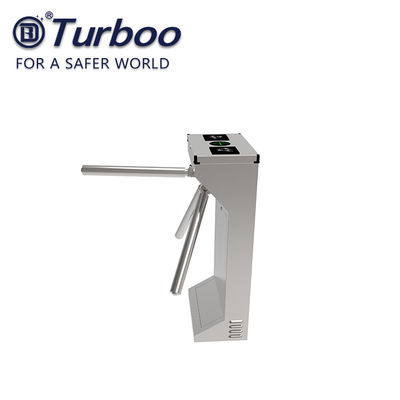

Semi - Automatic Tripod Turnstile Gate Integrated with Access Control System 3
