High End Intelligent Swing Barrier Gate For Security Access Management

Place of Origin: Shenzhen, China
Brand Name: Turboo
Certification: CE, ISO9001
Model Number: E343
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case package
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 2000 units per month
Product Details
Size: 1200X280X980 Unlock Time: 0.2 Second
Input: 100~240 Temperature: -20~+75
Power: 220V 50Hz
High Light:

waist height turnstile

,

security entrance systems

Leave a Message
Product Description

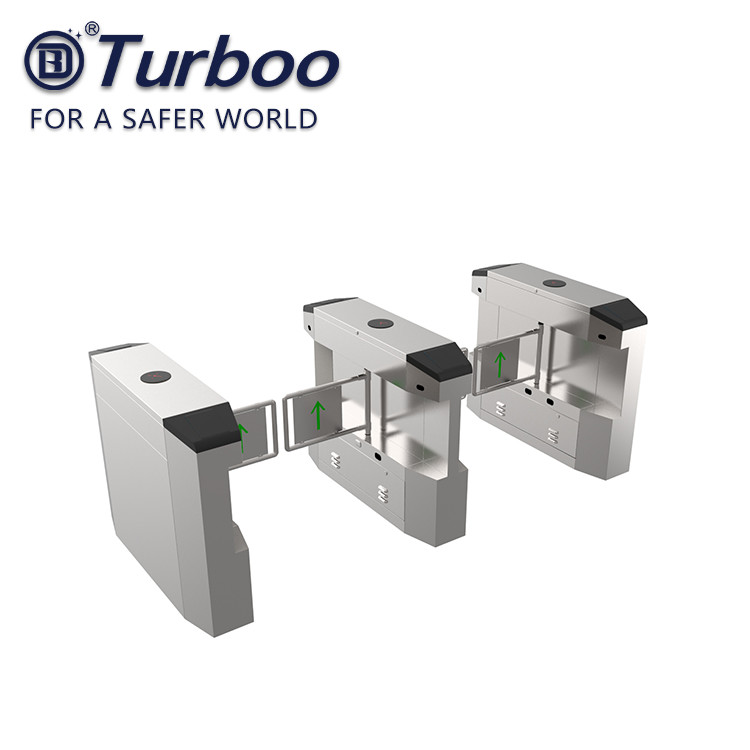

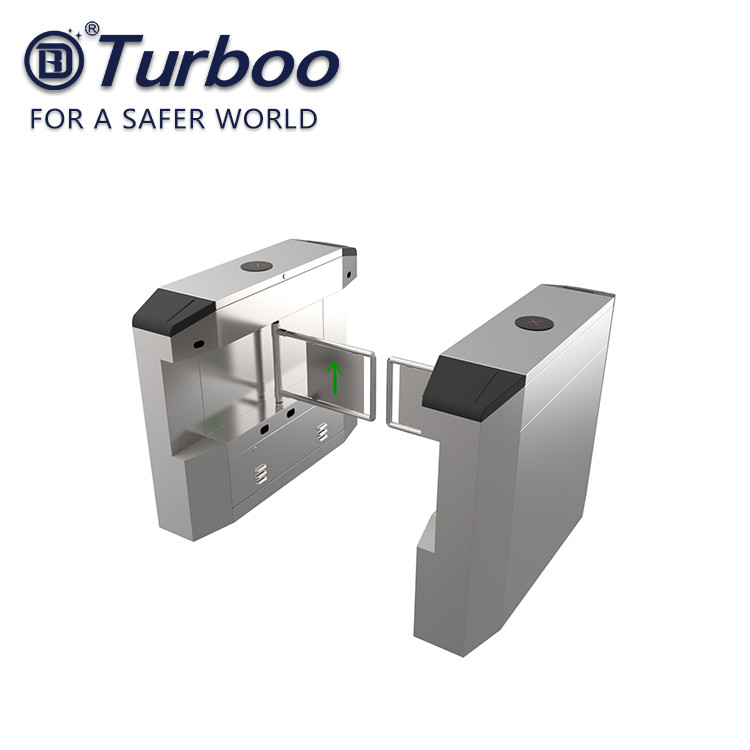

High end intelligent Swing barrier gate for security access management

Product Description

Product description for Security passage smart bike pass turnstile 304 stainless steel swing barrier gate/ door



Product Features:

1. Barriers made from stainless steel, acrylic glass, etc; Mechanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay

2. Automatic counting indicating passenger’s number.

3. Human base model indication function, real time displaying, improve the passing rate and convenient maintain

4. Anti pinch function, barriers auto open when power shut, insure user safety.

5. Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage

6. Super combination capacity, adjustable model on site

7. Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient users and operators

8. Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.

9. Turned up-coverage is water-proof and easy maintain .

10. Open direction adjustable even though power off



Technical Data Unit E343
Passage width mm <1105
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1200X280X980
Net weight including bars Kg 50
Optional devices 1.Fingerprint reader 2.Face recognition
  3.Card collector 4.Card reader
  5.2D scanner 6.Palmprint reader




Application:

Swing barrier turnstile is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.

Other place:

1. Industrial zones

2. Administrative buildings

3. Recreation centers

4. Amusement parks

5. Financial institutions

6. Government agencies

7. Airports

8. Bus and railway stations

9. Offices.
