Waterproof tripod turnstile gate bridge style stainless steel turnstiles

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number E142
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Housing Material 304 Stainless Steel Thickness Full 1.2mm Or Full 1.5mm
Passage Width 550mm Package Wooden Box Package
Input 220V,50HZ Or 110 V ,50HZ Testing 3 Million No Fault
Driving Voltage 24 V Environment -25~+70
High Light

pedestrian gate access control

,

turnstile security systems

Leave a Message
Product Description

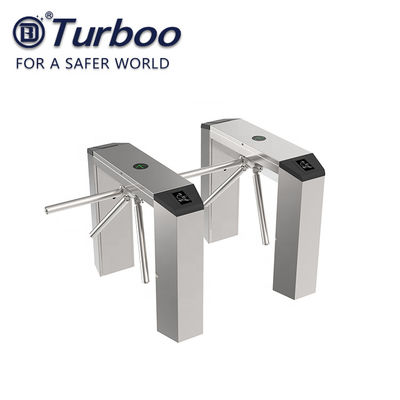

Waterproof tripod turnstile gate bridge style stainless steel turnstiles



Tripod turnstile



  • Tripod turnstiles are compact and cost-effective entrance solutions.
  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
  • Tripod turnstile is ideal for both indoor and outdoor settings.
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
  • In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
  • It is suitable for areas with high traffic.

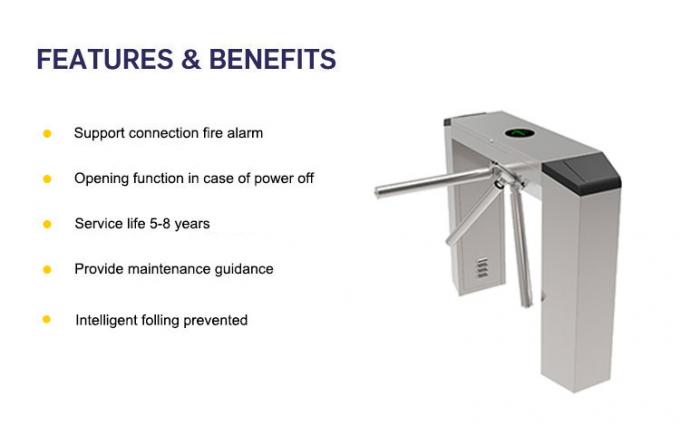

Features and Benefits



1. Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
2. A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
3. Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
4. Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
5. Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
6. Single or bi-directional function in mechanical and electrical versions.
7. Automatic reset of barrier arms after each passage.
8. Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
9. Adjustable time out delay.



Operating modes



1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked



Materials

1. Housing: In stainless steel AISI 304 or AISI316.
2. Barrier arm- stainless steel bar.



Specifications



Technical Data E142
Dimension 1280x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 30w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 35kg
Input 12v dry contact





Function

Waterproof tripod turnstile gate bridge style stainless steel turnstiles 0

Project case

Waterproof tripod turnstile gate bridge style stainless steel turnstiles 1

We have prepared over 1000units stock turnstiles for peak season, samples are ready for inspection on 12th Sep. If you have any interests, welcome to contact us.
