Contact Person : Enya Chen
Phone Number : 86-13590495053

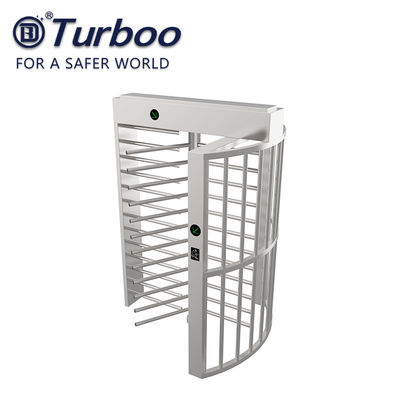

Indoor / Outdoor Full Height Turnstile Access Control System With Multi Mode

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number G535B
Minimum Order Quantity 1 unit
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Type Full Height Turnstile Model G535B
Size 1630*1490*2310mm Pass Width ≤700mm
Material 304 Stainless Steel Reliability 3 Million ,no Fault For The Machine Core
Environment Temperature Minus 25 Degree To 70 Degree Transit Speed 30 Persons / Min
Unlock Time 0.2s Input 220V ,50Hz
Net Weight 210kg Package Wooden Case Package
High Light

turnstyle automatic gates

,

mechanical swing gate

Leave a Message
Product Description

High Quality Access Control System & Product Full Height Turnstile



Product description

  • Full height turnstile is often used for high security access control solutions.
  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
  • Full height turnstile is ideal for both indoor and outdoor settings.
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).
  • It is very safety, to meet fire-control passage requirements, the turnstile gate will open automatically when the power off.



Features and Benefits

1. Bi-directional anti-rotation function.

2. Fire-fighting linkage to automatically open the turnstile in case of abnormality and emergency to facilitate personnel evacuation.

3. High channel closure and one card for one person to effectively prevent illegal climbing and drilling.

4. Button panel connected with control panel for easy and convenient setting of passage status.

5. Able to connect with various equipment such as access control system, consumption system, electronic ticket system, biometric identification system, electrostatic tester system, etc.

6. Enable remote control and management directly by supervisory computer.

7. Standard input/output interface to facilitate system integration.

8. Automatic unlocking under power failure and free rotation meeting the fire-fighting requirements, and with automatically closing after energizing.

9. Uni-directional or bi-directional control over personnel access.

10. Anti-collision function to lock the channel if turnstile does not receive the opening signal.

11. Thermostat and exhaust fan provided additionally to adapt extreme environment.

12. Automatic recovery function to recover the turnstile rod to its original status after pedestrian pass.

13. Automatic reset, if the pedestrian fails to pass through within the system preset period after swiping the card and opening the turnstile, the system will cancel the passage permissions (adjustable resetting time).





OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.



Technical Data Unit G535
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1490X1630X2310
Net weight including bars Kg 210
