Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w

  • Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w
  • Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w
  • Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w
Place of Origin Guangdong China(Mainland)
Brand Name Turboo
Certification CE ISO9001
Model Number H308
Minimum Order Quantity 2 pcs
Price negotiate
Packaging Details Wooden Case Package
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 1000+PCS PER MONTH
Product Details
Product Size 1200*185*960mm Pass Width 600-800mm
Material 1.2mm SUS 304 Hailine 400# Top Cover Material 1.5mm Acrylic And 304 SUS
Input Voltage 100-240V Working Voltage 24V
Pass Rate 35-40 Persons/minute Operating Time 0.2 Seconds
Infared Sensro 4 Pairs MCBF 5,000,000 Cycles
Motor Brushless Motor
High Light

security entrance systems

,

drop arm turnstiles
Leave a Message
Product Description

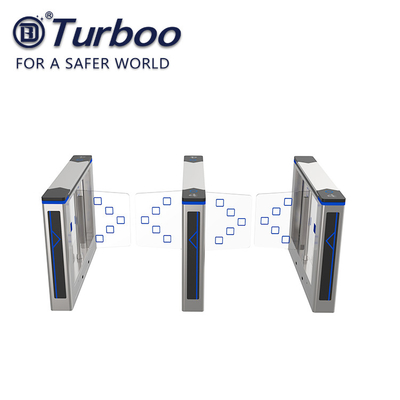

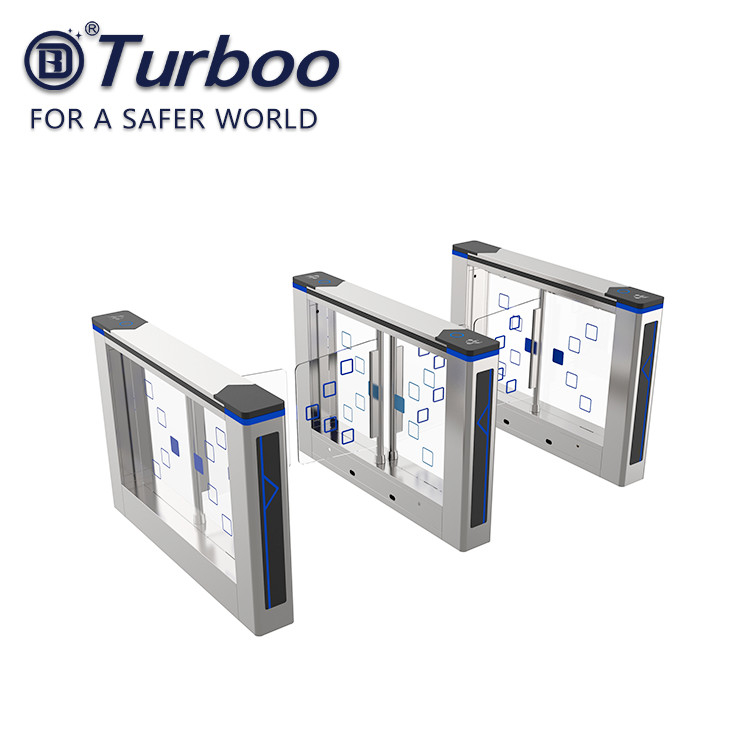

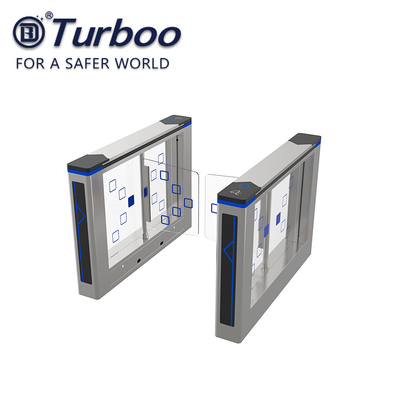

Pass Width 600-800mm Swing Barrier Gate Automatic Pedestrian Access Control Barrier Gate 100-240V Swing Gate Turnstile





Description:



H308 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.





Model Number: H308
Product Size: 1200*185*960mm
Pass Width: 600-800mm
Net Weight: 65kg
Thickness: 1.2mm
Material: 1.2mm SUS 304 Hailine 400#
Top cover Material: 1.5mm Acrylic and 304 SUS
Filling Panel Material: 8mm Transparent Acrylic
Arm Material: 10mm Transparent Acrylic
Driver: Brushless Motor
Infrared Sensor: 4 pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 40w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles



OPERATING MODES:


• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



Certification:



Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w 0



Factory:

Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w 1

Showroom:



Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w 2



Presentation:





Pass Width 600-800mm Swing Barrier Gate Pedestrian Access Control 100-240V 40w 3





Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Meanwell” or “Fujia”.



4. We take 3M glue imported from American instead of the glass glue which other counterparts use.



5. Germany “Optibelt” and American “Gates” is the belt we are using now.



FAQ:



1. How about your company’s actual strength?



We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.



2. How about your package?


Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.



3. How about the lead time?


Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?


13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.





T:86-755-29809981 M/W:+86-15218724375

Factory Address 1: Builing A3, guigudongli park, Qinghu Industrial estate,Longhua district, Shenzhen, China

Factory Address 2: Building A#, Dinghe Industrial Park, Yantang Road 2#, Tangxia Town, Dongguan, Guangdong province,China
