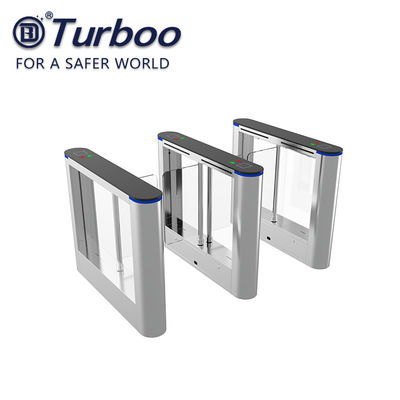

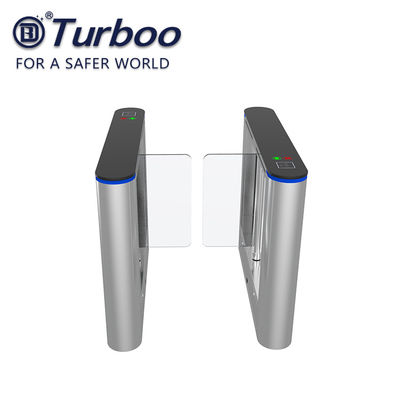

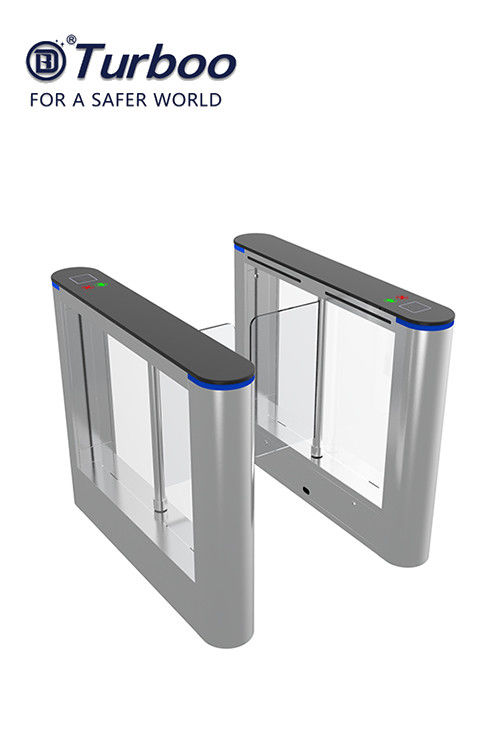

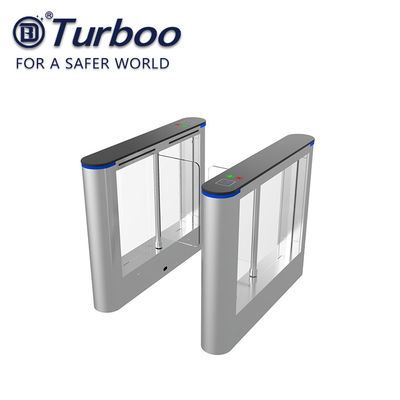

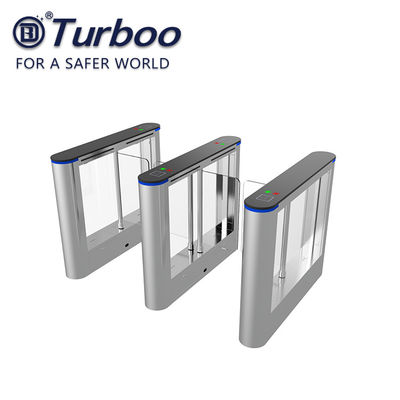

Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm

Place of Origin: Guangdong China(Mainland)
Brand Name: Turboo
Certification: CE ISO9001
Model Number: A301
Minimum Order Quantity: Negotiable
Price: negotiate
Packaging Details: Wooden Case Package
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 3000+PCS PER MONTH
Product Details
Product Size: 1200*185*980mm Pass Width: 600mm
Material: 1.5mm SUS 304 Hairline 400# Top Cover Material: 12 Man Made Marble
Input Voltage: 100-240V Working Voltage: 24V
Pass Rate: 35 Persons/minute Operating Time: 0.2 Seconds
Infared Sensro: 5 Pairs Net Weight: 58KG
MCBF: 5,000,000 Cycles Communication Interface: RS485,Dry Contact
High Light:

security entrance systems

,

waist height turnstile

Leave a Message
Product Description

IP56 Outdoor Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 100-240V Security Gate for Building



Description:



A301 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.





Model Number: A301
Product Size: 1200*185*980mm
Pass Width: 600mm
Net Weight: 58kg
Thickness: 1.5mm
Material: SUS 304 Hailine 400#
Top cover Material: 12mm man made marble
Filling Panel Material: 10mm Transparent Acrylic
Arm Material: 10mm Transparent Acrylic
Infrared Sensor: 5pairs
Pass rate: 35 p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles





Dimension Diagram:



Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 0

Operating Mode:

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



Feature:

  • Traffic light indicating passenger access

  • Automatic detection for malfunctions

  • Input interface available for dry contact and switch signal connection

  • Adjustable auto-delay closing

  • Infrared photocells for safety access

  • Alarm for unauthorized access and no access

  • Auto-closing when power on

  • Free access when power off

  • Adjustable access directions

  • Emergency interface available



Certification:



Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 1



Factory:

Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 2



Showroom:



Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 3



Project Case:





Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 4



Wood Box Package:



Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 5



Exhibition:



Security Swing Barrier Gate , Entrance Swing Gate Turnstile Pass Width 600-900mm 6



Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.



4. We take 3M glue imported from American instead of the glass glue which other counterparts use.



5. Germany “Optibelt” and American “Gates” is the belt we are using now.



FAQ:



1. How about your company’s actual strength?

We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.



2. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.



3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
