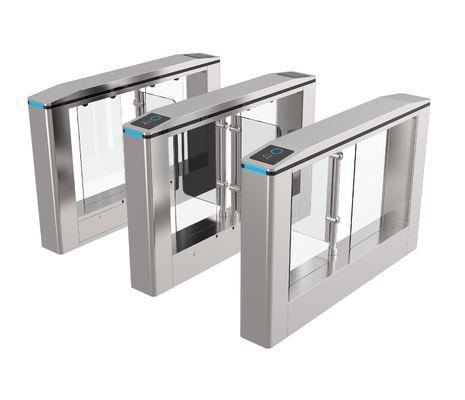

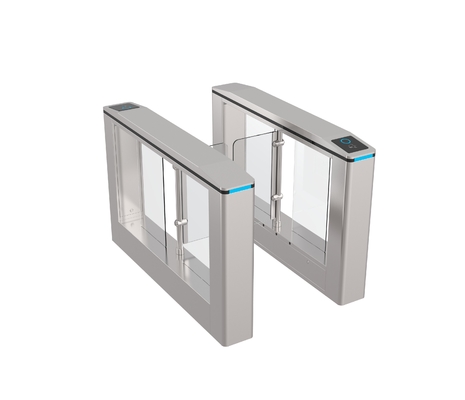

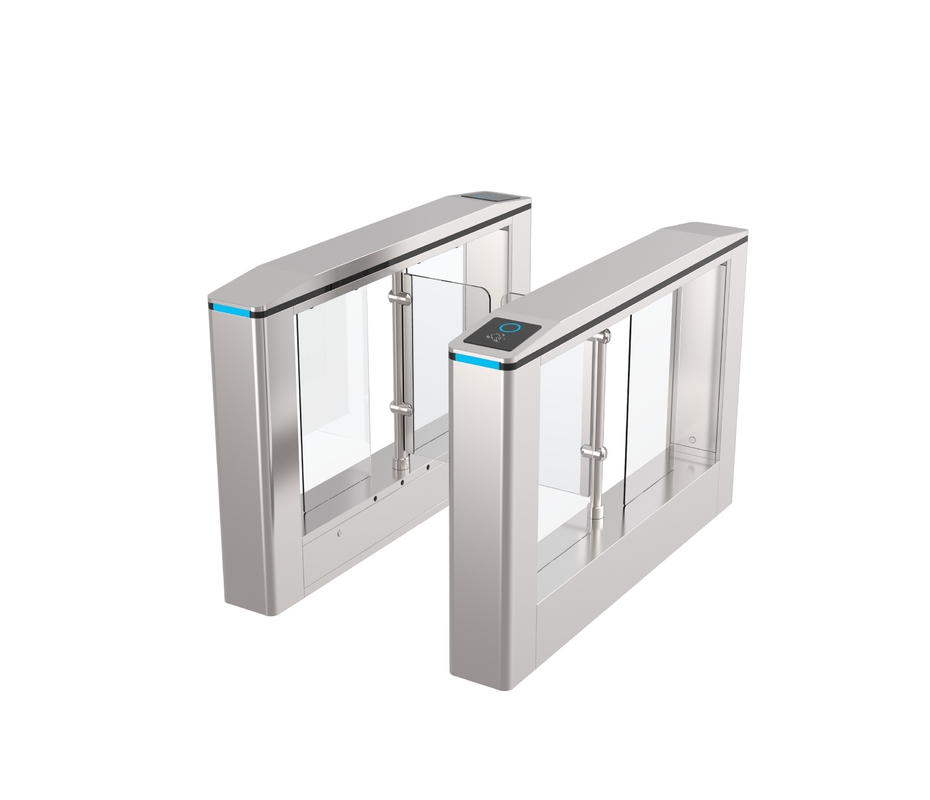

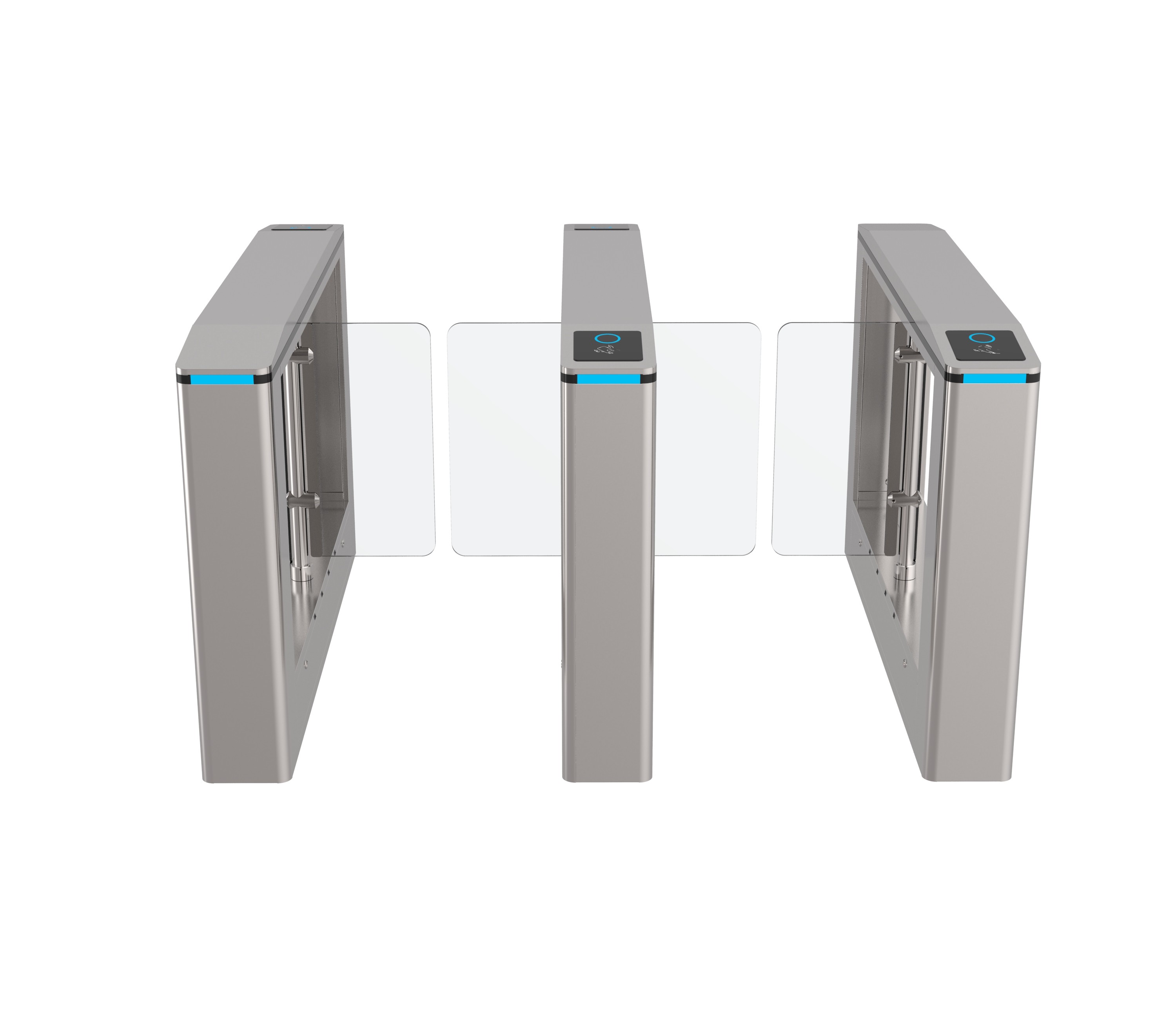

600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304

Place of Origin: Guangdong China(Mainland)
Brand Name: Turboo
Certification: CE ISO9001
Model Number: K324
Minimum Order Quantity: Negotiable
Price: negotiate
Packaging Details: Wooden Case Package
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 1000+PCS PER MONTH
Product Details
Motor: DC Brushless Motor MCBF: 5,000,000 Cycles
Product Size: 1500-1700*200*980mm Pass Width: 600-1300mm
Net Weight: 60KG Material: Acrylic Barrier+1.5mm SUS 304 Polish 400# Snow Line Case
Top Cover Material: 1.5mm SUS 304 Pass Rate: 35-40 Persons/minute
Operating Time: 0.2 Seconds Infared Sensro: 14 Pairs
Communication Interface: RS485,Dry Contact Input Voltage: 100-240V
Working Voltage: 24V
High Light:

14 Pairs Infrared Swing Turnstile

,

1300mm Width Infrared Swing Turnstile

,

SUS304 Acrylic Swing Turnstile

Leave a Message
Product Description

Indoor Outdoor Used,DC Brushless Motor,Acrylic+SUS304,600-1300mm pass width,14 Pairs Infrared,Sensor Swing Barrier Gate



Description:



K324 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing. It could be used indoor and outdoor.





Model Number: K324
Product Size: 1500*200*980mm
Pass Width: 600mm
Net Weight: 65kg
Thickness: 1.5mm
Material: SUS 304 Hailine 400#
Top cover Material: Acrylic+1.5mm SUS304
Filling Panel Material: 10mm Transparent Acrylic
Arm Material: 10mm Transparent Acrylic
Driver: Brushless Motor
Infrared Sensor: 14 pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles





Dimension Diagram:



600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 0

600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 1

600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 2

Wiring Diagram:



600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 3

Operating Mode:


• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



Feature:

  • Traffic light indicating passenger access

  • Automatic detection for malfunctions

  • Input interface available for dry contact and switch signal connection

  • Adjustable auto-delay closing

  • Infrared photocells for safety access

  • Alarm for unauthorized access and no access

  • Auto-closing when power on

  • Free access when power off

  • Adjustable access directions

  • Emergency interface available



Certification:



600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 4



Factory:

600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 5



Showroom:



600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 6



Project Case:



600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 7





Wood Box Package:



600-1300mm Width 14 Pairs Infrared Swing turnstile SUS304 8





Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.



4. We take 3M glue imported from American instead of the glass glue which other counterparts use.



5. Germany “Optibelt” and American “Gates” is the belt we are using now.



FAQ:



1. How about your company’s actual strength?



We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.



2. How about your package?


Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.



3. How about the lead time?


Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?


13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
