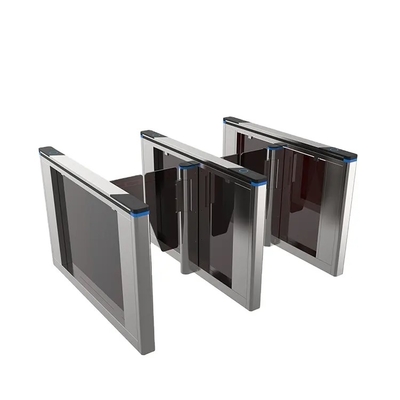

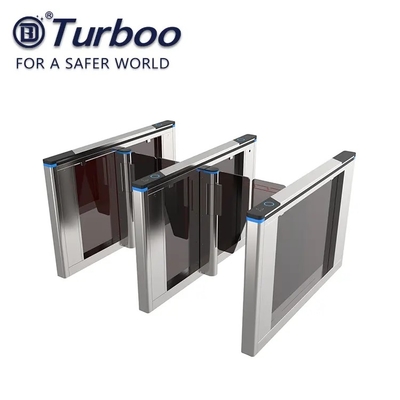

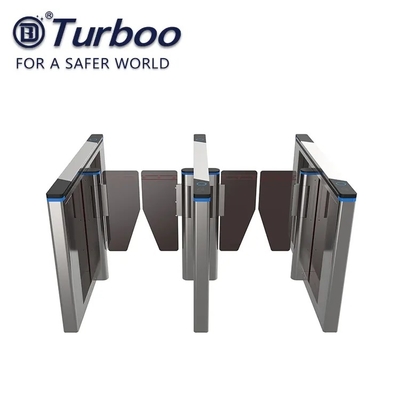

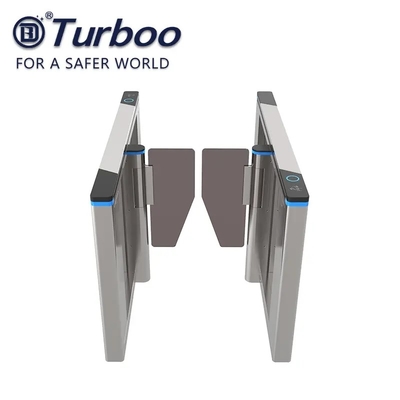

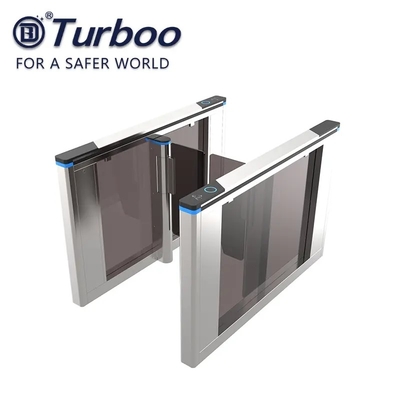

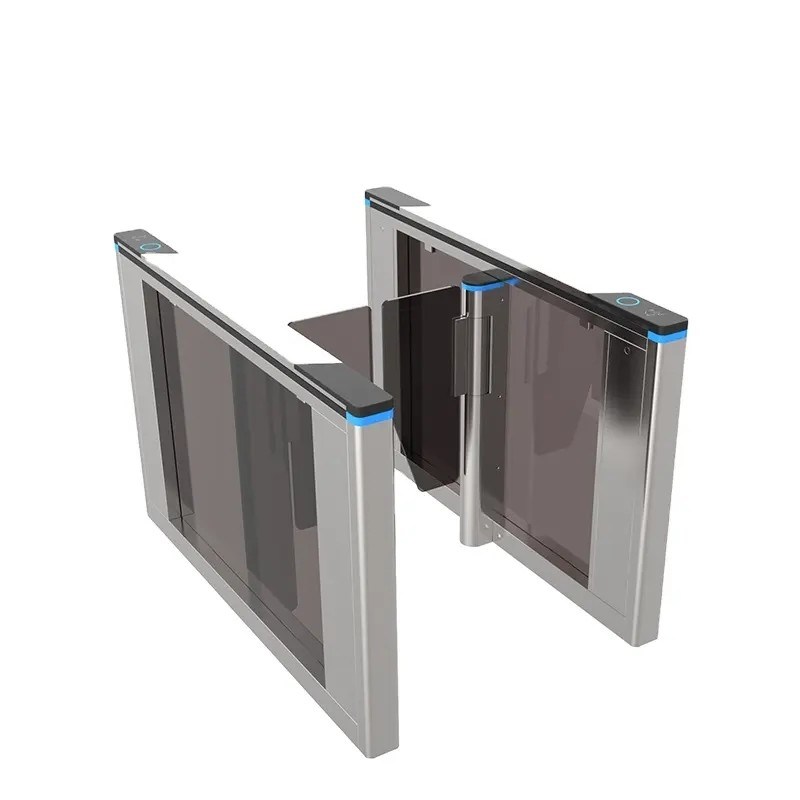

High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile

  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
  • High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile
Place of Origin Shenzhen, Guangdong, China
Brand Name Turboo
Certification CE, ISO9001
Model Number B325
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden box package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model B325 Material 1.5mm Imported SUS 304 Polish 400# Snow Line + Top Cover: Acrylic And 1.5mm SUS + Filling Panel: 10mm1.5mm Imported SUS Polish 400# Snow Line + Top Cover: Acrylic And 1.5mm SUS + Filling Panel: 10mm Acrylic With Led Light Bar
Motor Servo Brushless Motor Machine Size 1500*100*980mm
Pass Width 600~900mm MCBF 5,000,000 Cycles
Power Input AC100-240V; 50/60HZ Passage Throughout 35-40 Persons/minute
Environment -25~+70℃ Application Commercial Buildings, Community, Airports, Hotels, Gyms, Etc
Warranty One Year Or Two Years Communication Intereface Dry Contact, RS485
High Light

ultra slim swing flap gate

,

ultra slim Pedestrian Turnstile

,

RFID Access Pedestrian Turnstile
Leave a Message
Product Description

High-end ultra slim swing flap gate RFID access control pedestrian glass barrier turnstile





Features and Benefits



Speed gate is the most correct choice for to be used in, especially holding entrances, banks, anywhere needs to have luxurious, precious and prestigious image. Bi-directional switching is possible. All kinds of transmission control devices such as card readers, fingerprint or face recognition, can be integrated into the turnstile via dry contact. Wings of the speed gate moves quickly under favor of the motor. Metal parts made of (304 AISI) stainless steel as well, also wings and top table manufactured from 10 mm tempered glass.



1. precise and reliable brushless motor + encoder precision control + precision clutch, 8 million stable operation, locker lock, unlock, run more accurate and reliable.

2. Mechanical + infrared induction + circuit control triple anti-pinch anti-collision, illegal intrusion and trailing alarm, free power failure, in line with fire requirements.

3.The whole system runs smoothly and silently, and has fault self-test and alarm prompt function, which is convenient for maintenance and use.





Communication



• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer


Product description

Technical Date B325
Passage width 600~900mm
Throughput rate 35-40persons/minute
Power supply 100-240V
Operational voltage 24V
Operating time 0.2S
Frequency 50-60hz
Pretection level  44ip
Working temperature -25~+70℃
Dimension  1500*100*980mm





High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile 0



High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile 1



Case Pictures



High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile 2



High End Ultra Slim Swing Flap Gate RFID Access Control Glass Barrier Pedestrian Turnstile 3
