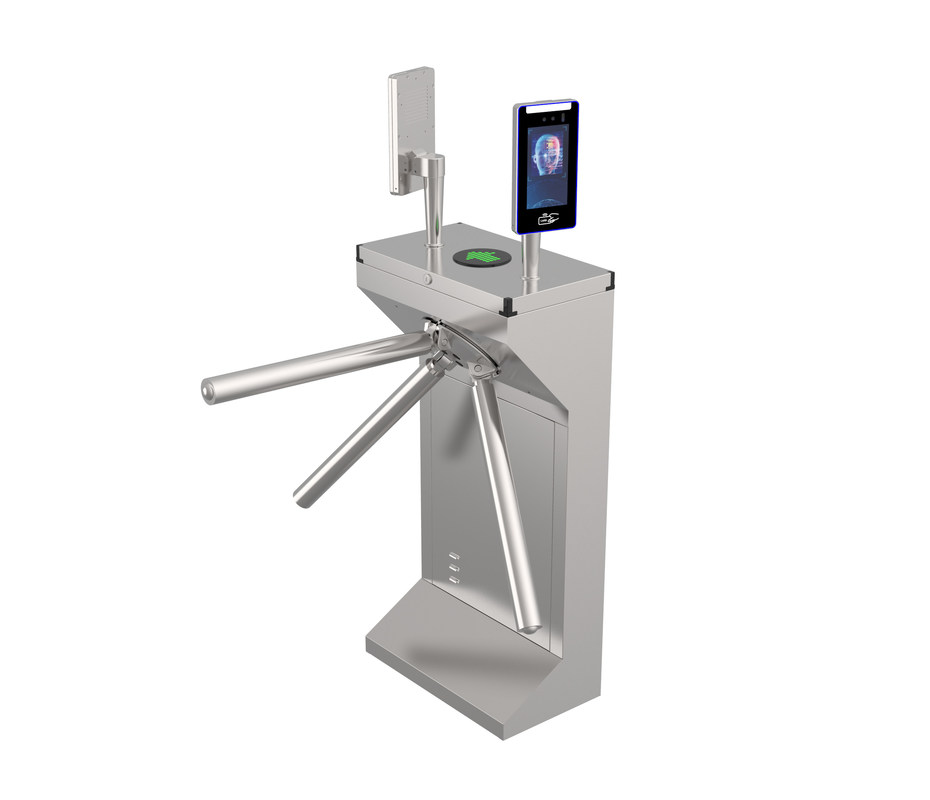

Semi - Automatic Tripod Turnstile Gate - Integrated with Security Access Control Gate System DL128

Brand Name: Turboo Gate Automation
Model Number: DL128
MOQ: 1pc
Price: Negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T,
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, ISO9001,FCC,RoHS,etc.
Size:
480x280x960mm
Material:
304 Stainless Steel
Thickness:
Body 0.8mm+ Top Cover 1mm
Power Supply:
24 V 50 W
Package:
Wooden Case
Temperature:
-25~+70℃
Transit Speed:
35 Persons/min
Time Needed For Opening:
0.2 Seconds
Packaging Details:
Wooden box/ Heavy carton package
Supply Ability:
10000 pcs per month
Highlight:

pedestrian gate access control

,

turnstile security systems

,

35 persons/min vertical tripod turnstile

Product Description
Semi - Automatic Tripod Turnstile Gate - Integrated with Security Access Control Gate System

Product Description

Tripod turnstile, one kind of pedestrian turnstiles, is also known as three-roller turnstile and three-rod turnstile. The product comprises stainless steel casing, electronic control for machine core, aluminum plate for turnstile rod, etc. It can be widely in various kinds of entrance and exit situations by combining with various identification and verification equipment. The tripod turnstile is characterized by long fixed rod and limited channel width for the passage of pedestrians and small luggage rather than vehicles; a single set can form one channel to save the budget; its structure is simple for easy maintenance and installation; the product is provided with fire-fighting couplings for linkage; it is also provided with hydraulic shock absorption device to reduce operation noises and abrasions; after swiping cards, the turnstile road rotates to strictly enforce the function of opening once for one person; it is provided with 60° anti-rotation function to prevent reverse intrusion; and the product can be directly used in open-air situations.

Technical Data DL128
Dimension 480x280x960mm
Unlock time 0.2s
Passage width 550mm
Throughput rate 35p/m
Power supply 24v 50w
Movement  Molded Anti-Tailgating Tripod Turnstile (with Hydraulic Damper)
Indicator light Waterfall light
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Net weight 24kg
Input 12v dry contact
Arm  0.9mm SUS304



Features and Benefits



1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. The barrier can be set to delay closing in 1-60s after a valid card-reading

Semi - Automatic Tripod Turnstile Gate - Integrated with Security Access Control Gate System DL128Semi - Automatic Tripod Turnstile Gate - Integrated with Security Access Control Gate System DL128Semi - Automatic Tripod Turnstile Gate - Integrated with Security Access Control Gate System DL128
