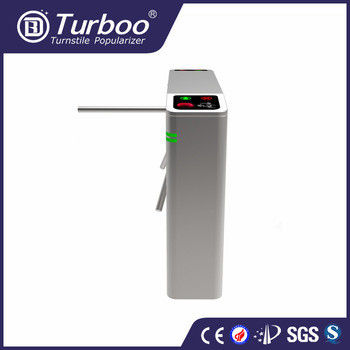

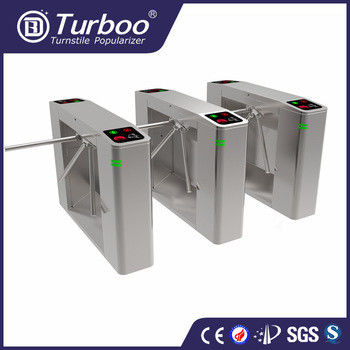

OEM Outdoor Tripod Turnstile With Counting Functions , Can Work With Access Controller Install In
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thickness | Full 1.2mm Or Full 1.5mm | Size | 1400*280*980mm |
|---|---|---|---|
| Passage Width | 550mm | Package | Wooden Case Package(Tripod Turnstile) |
| Testing | 3 Millions No Fault | Input | 220V,50HZ Or 110 V ,50HZ |
| Driving Voltage | 24 V | Environment | -25~+70 |
| High Light | sliding security gates,security access gates,Office Buildings tripod access system |
||
Product Description
Features and Benefits
• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.
• Adjustable time out delay.
| Technical Data | Unit | K149 |
| Passage width | mm | <550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1400X280X980 |
| Net weight including bars | Kg | 84 |
