| Brand Name: | Turboo |
| Model Number: | EL128 |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, L/C |

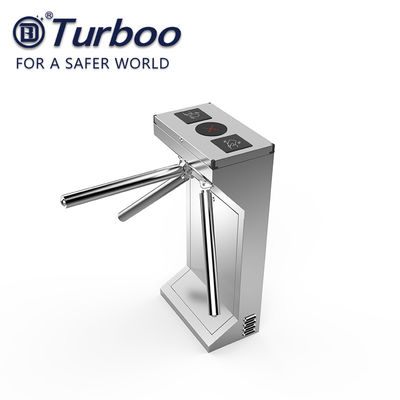

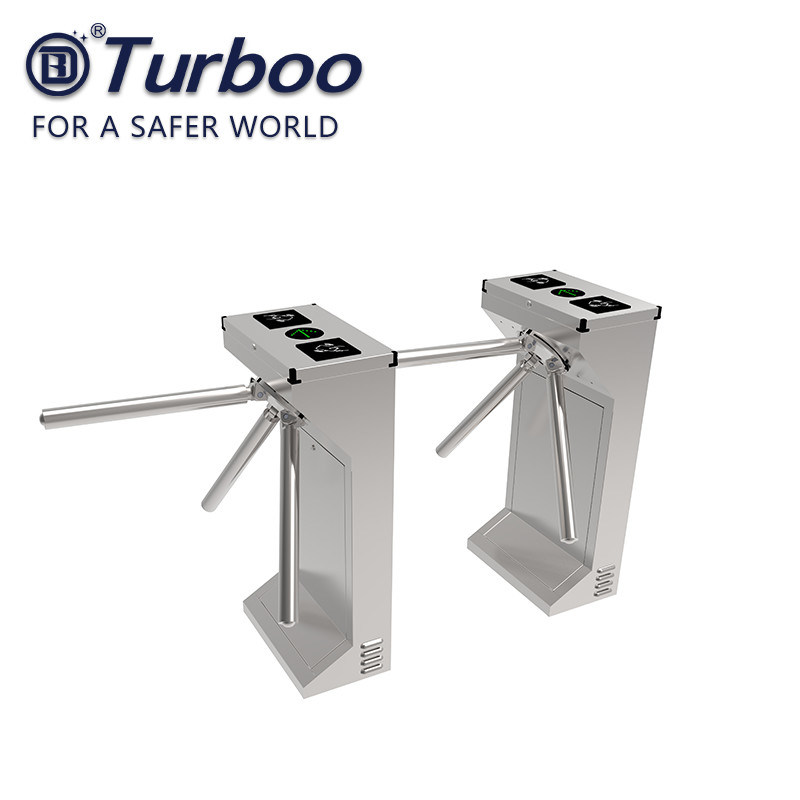

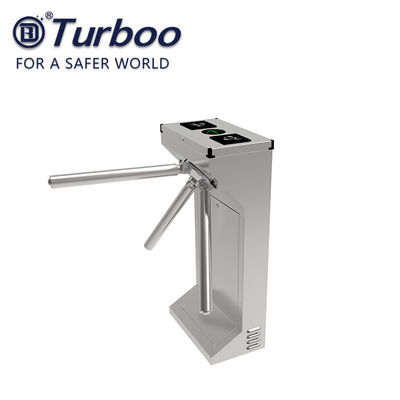

TCP/IP And RFID Support Tripod Turnstile for security access control
| Technical Data | Unit | EL128 |
| Passage width | mm | <550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 480X280X960 |
| Net weight including bars | Kg | 33 |
Features and Benefits
1. Running stablely without noise and mechanical impact
2. The passing person number of the persons can be set
3. Several ways of working molds for your demand chosen
4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
5. Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
Video
Video
Video
Video
Video
Video
Video
|
