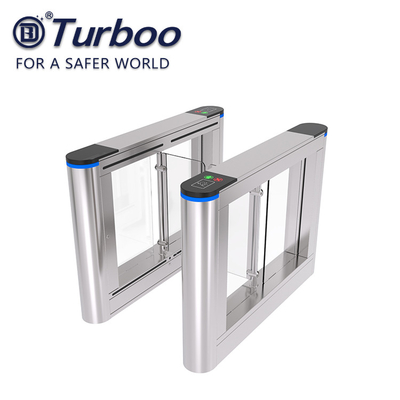

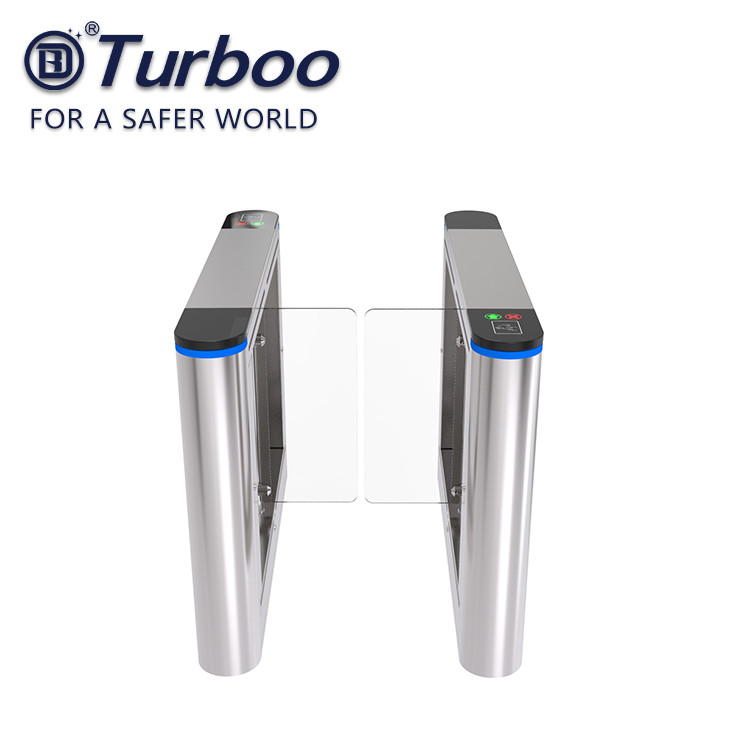

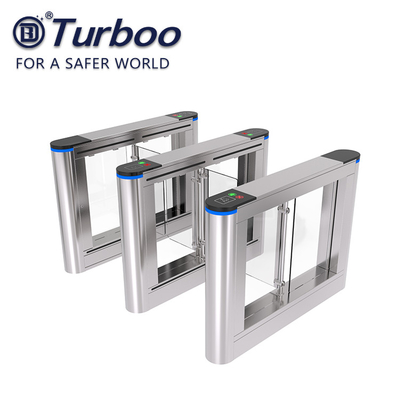

High Temperature Resistance Swing Barrier Gate With Voice And Strobe Light Alerts

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number H306
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Size 1400X185X1020
Passage Width ≤900mm Working Temperature -25~+70℃
Net Weight Including Bars 95kg Thickness Full 1.5mm
Reliability Of The Core 3 Million No Fault Driving Voltage 24 V
High Light

drop arm turnstiles

,

security entrance systems

Leave a Message
Product Description

Swing Barrier Gate Stainless Steel Semi-automatic Optical pedestrian Access Control



Swing barrier gate has small installation footprint while offering widest opening clearance to allow big boxes,trolley,wheelchair,baby stroller or user with big luggage to pass through with comfort.Swing barrier gate compact size and turbular shape allow it to easily fit into places with very limited space.Access control and time attendance reader can be integrated into top cover.Design of swing barrier gate is simplified to achieve optimum function at affordable cost.Control system mechanism is modular for easy maintenance servicing and part replacement.Swing barrier gate is typically used together with flap barrier or turnstile as manual lane for handicapped user in building lobby.It is ideal for low traffic and light duty site that requires more affordable solution.



OPERATING MODES
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked



MATERIALS
• Housing:Made in stainless steel AISI 304 o AISI316.
• Barrier swings-Acrylic, PC, stainless steel frame.



FEATURES AND BENEFITS
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading



Technical Data Unit H306
Passage width mm <=900
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip 44
Working temperature degree -25 to +70
Dimension excluding bars mm 1400X185X1020
Net weight including bars Kg 95
