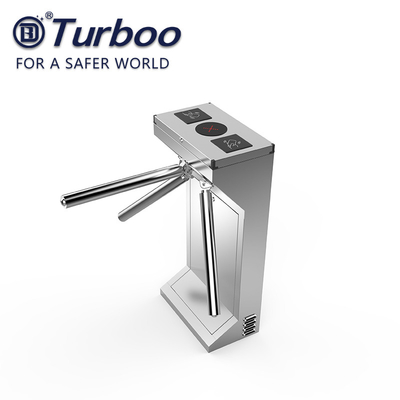

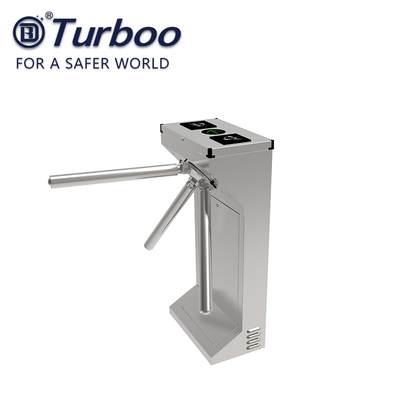

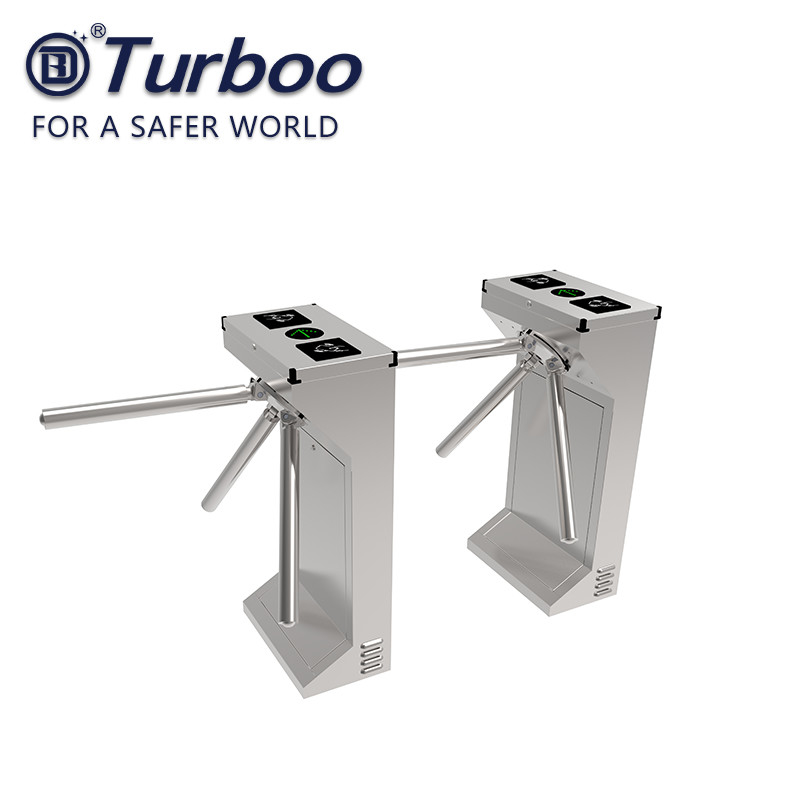

Intelligent Tripod Turnstile Gate 220V Office Security Gates

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number EL128
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size 480X280X955 Material SUS304
Power 220V 502Hz Transit Time 35 Persons/min
Environment -25~+70 Weight 33KG
High Light

automatic systems turnstiles


sliding security gates


220V Office Security Gates

Leave a Message
Product Description
Waterproof Intelligent access control system scheme tripod gates for outdoor use
Product Description

Product description for TCPIP And RFID Support Tripod Turnstile For University Dormitory


Technical Data Unit EL128
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 480X280X955
Net weight including bars Kg 33



  Features and Benefits


1. Passage direction: the free setting of uni-direction or bi-direction to control access, and uni-directional free passage, bi-directional free passage or uni-directional card swiping passage or bi-directional card swiping passage are allowed.
2. Turnstile rod reset: the turnstile rod will automatically reset to its original position after pedestrians pass through.
3. Memory function: continuous swiping card allows corresponding person to pass, and this is suitable for special occasions.
4. Passage reset: the turnstile will automatically close in case of no one entry within limiting time after swiping card, and the limiting time is adjustable.




• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer
