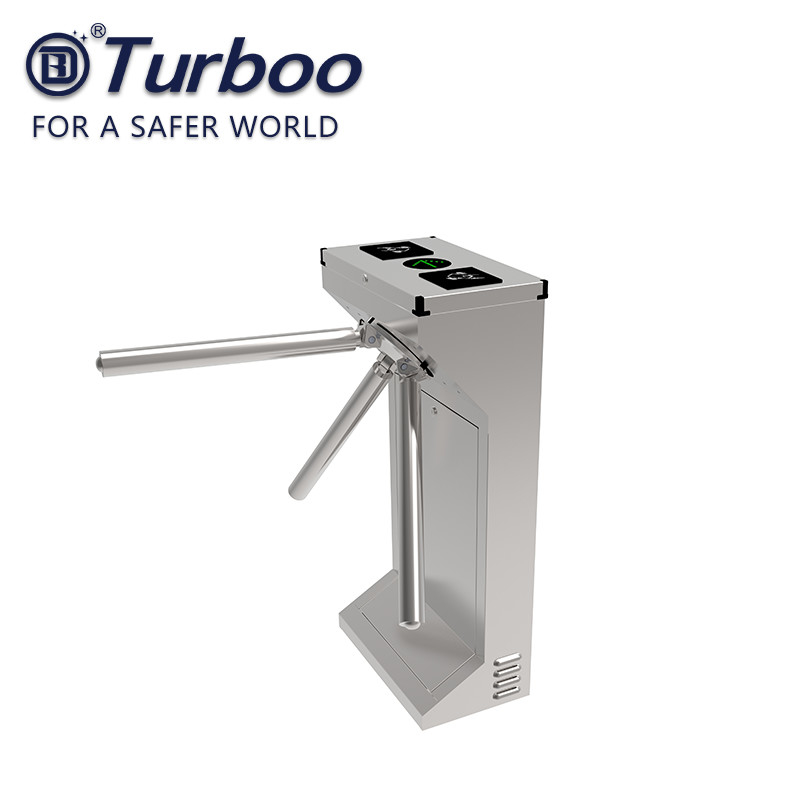

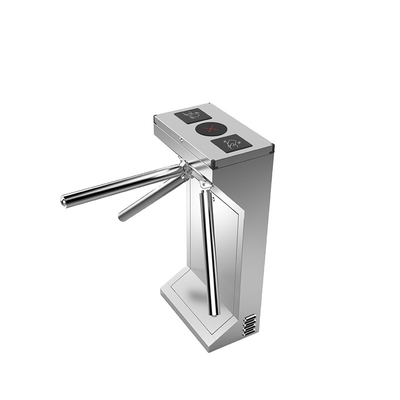

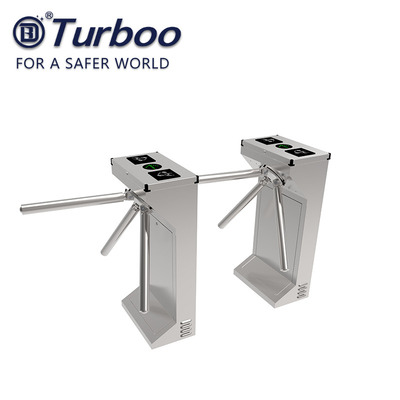

Drop Arm Optical Barrier Turnstiles Tripod Security Gates For University Dormitory

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number EL128
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Size 480X280X960 Input 220V 50Hz
Time Needed 0.2 Second Transit Speed 35 Persons/min
Material SUS304
High Light

security entrance systems

,

drop arm turnstiles

,

Dormitory Tripod Security Gates

Leave a Message
Product Description
Drop arm optical pedestrian gate security tripod turnstile access control





Product Description

Product description for TCPIP And RFID Support Tripod Turnstile For University Dormitory



Technical Data Unit EL128
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 480X280X960
Net weight including bars Kg 33



Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer
