High security pedestrian swing barrier turnstile for Office building turnstiles

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number H306
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Size 1400X185X1020 Transit Time 0.2 Second
Input 220V 50Hz Material 304/316 Stainless Steeel
Thickness Full 1.5-2.0mm Passage Width ≤900mm
Working Temperature -25~+70℃ Testing 3million ,no Fault
High Light

waist height turnstile

,

drop arm turnstiles

Leave a Message
Product Description

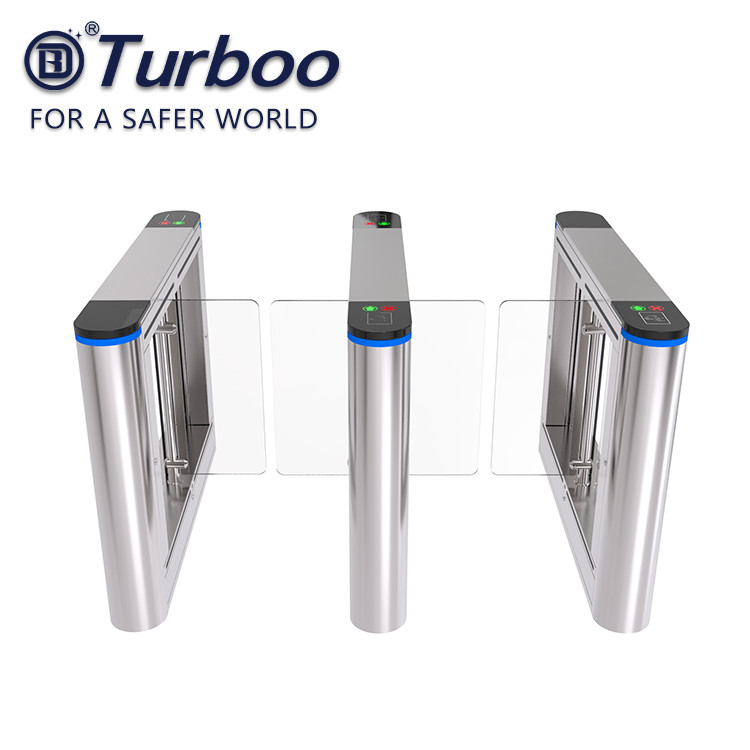

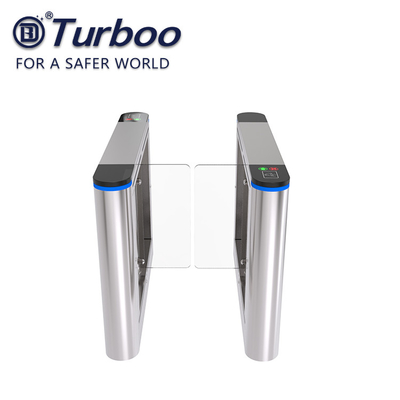

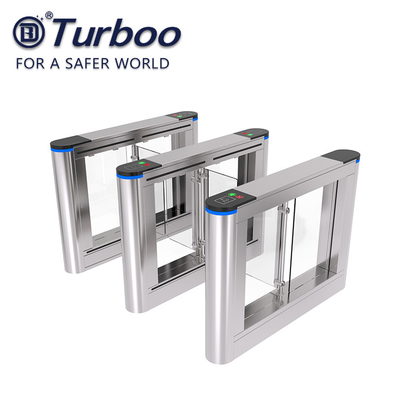

High security pedestrian swing barrier turnstile for Office building turnstiles




Swing gate

  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
  • Auto reset function, if no passing during identified card-reading time, the system will reset automatically the passagers are prohibited to pass until their second identified reading.
  • The barrier can be set to delay closing 1-60s after a valid card reading.
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping.
  • A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smoth passage



Features and Benefits



1.Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.

3.Display has been in use for statistics and numbers

4. A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.

5.Communication

•Dry contact relay with 12 volt or 24 volt pulse

•Rs485, or Tcp-lp communication with computer

6. Anti-tail, prevent people follow pass without verified
7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
8. RFID access controller for standard, fingerprint reader, facial identify reader, barcode reader, consume system optional.
9. Combine IR detector, support people counting, prevent follower, wrong way alarm function.
10. Option temperature controller, support machine working fine in cold weather.
11. Option bluetooth remote controller, support remote open.
12. Option the crashproof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it



Operating modes

1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked



Materials

1. Housing: In stainless steel AISI 304 or AISI316.
2. Barrier arm- stainless steel bar.



Specifications

Technical Data H306
Dimension 1400x185x1020mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 30w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 35kg
Input 12v dry contact
