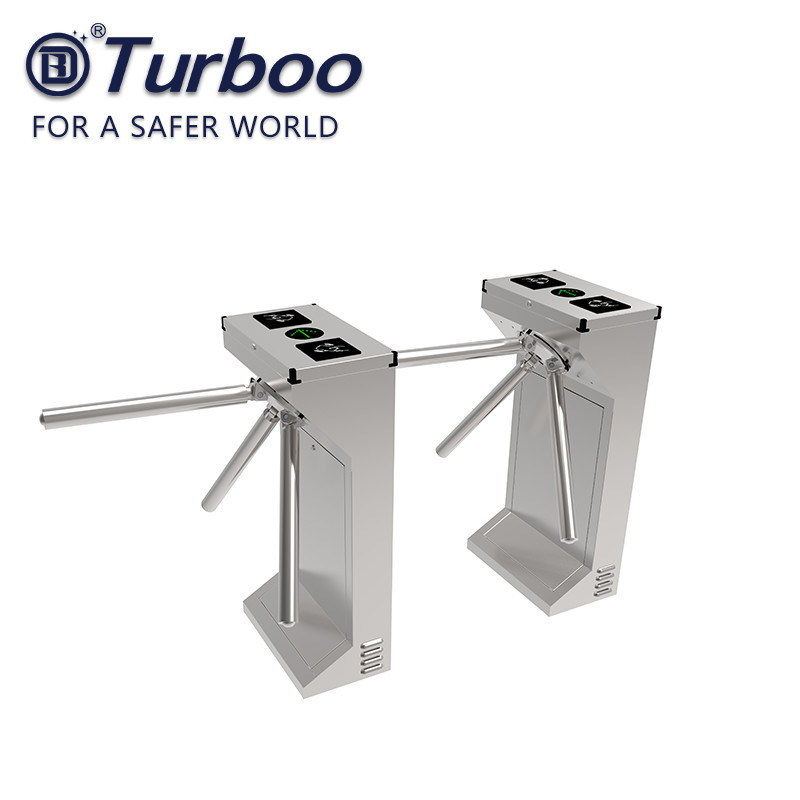

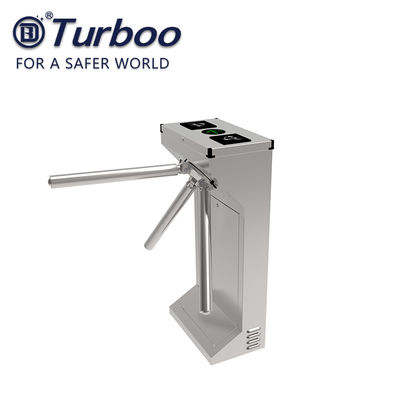

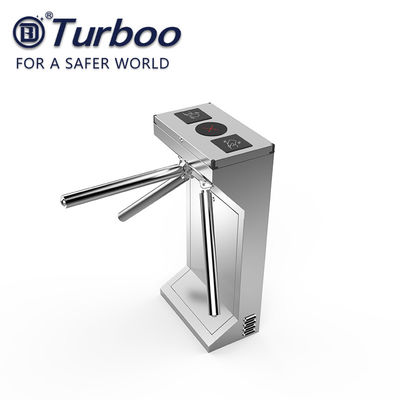

Metro Station Three Arm Turnstile Security Products Standard Electronic Interface

name

Metro Station Three Arm Turnstile Security Products Standard Electronic Interface

Brand Name:	Turboo
Model Number:	EL128
MOQ:	1 unit
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, ISO9001

MetriaL:

304 Stainless Steel Or 316 Stainless Steel

Size:

480*280*960mm

Thickness:

Full 1.0mm

Weight:

35kg

Passage Width:

≤550mm

Driving Voltage::

24 V

Material:

SUS304

Packaging Details:

Wooden case package

Supply Ability:

2000 units per month

Highlight:

security entrance systems

,

turnstile barrier gate

,

Metro Station Three Arm Turnstile

Product Description

Electronic Turnstile Gates Tripod turnstile, Metro station Security Rotate Turnstile Gate

Features and Benefits

Auto replacement function, reposition after person pass by
Anti tail function auto-lock once turn 120° .
Arms auto drop when power off , insure unblocked when accident
Diverse control mode optional, changeable due to varying, convenient for your manage
Auto alert error function, comfort for user maintain and operate
Manual button or remote control ,Bio-directional passage
Open signal with memory or with out set function
Red and green light to show pass or stop, leisure to exit and entrance

Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer

Product Description

Product description for TCPIP And RFID Support Tripod Turnstile For University Dormitory

Technical Data	Unit	EL128
Passage width	mm	<550
Throughput rate	p/m	35
Power supply	V(ac)	100-240
Operational voltage	V(dc)	24
Max power consumption	w	30
Frequency	hz	50-60
prectection level	ip	>44
Working temperature	degree	-25 to +70
Dimension excluding bars	mm	480X280X960
Net weight including bars	Kg	35

Metro Station Three Arm Turnstile Security Products Standard Electronic Interface 0
