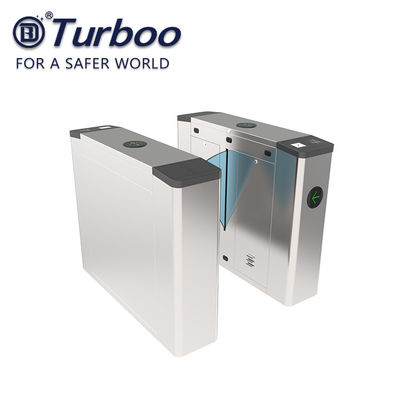

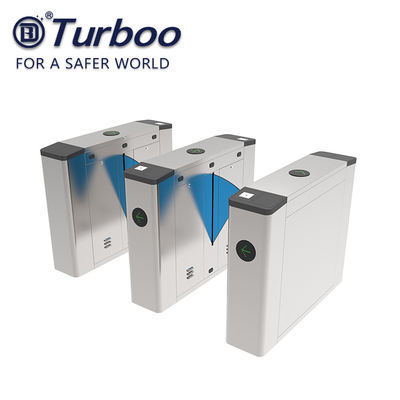

Flap Barrier Gate Access Control System Integarted RFID Card Reader And QR Scanner

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number Y248
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden box/ Heavy carton package
Delivery Time 7 days
Payment Terms L/C, T/T,
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 1200x280x980mm Material 304/316 Stainless Steel
Input 220V ,50Hz Package Wooden Box
Temperature -25~+70℃ Transit Speed 35 Persons/min
Reliability Of The Core 3 Million ,no Fault Time Needed For Opening 0.2 Seconds
High Light

drop arm turnstiles

,

security access gates

,

QR Scanner Flap Barrier Gate

Leave a Message
Product Description
Waist High Turnstile Rfid Card Reader Security Turnstile Gate With Access Control System




Product Description

All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.

Technical Data Y248
Dimension 1200x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 63kg
Input 12v dry contact



Features and Benefits



1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

8. The barrier can be set to delay closing in 1-60s after a valid card-reading



OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1..Housing and arm: Made in stainless steel AISI 304 o AISI316.

2. PC flap and moulding machine core
