24V Security Swing Barrier Gate IC ID Card Kindergarten Automatic Safety Access Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pass Width | 500mm | Material | 1.2mm Metal |
|---|---|---|---|
| Input Voltage | 100-240V | Working Voltage | 24V |
| Pass Rate | 35-40 Persons/minute | Operating Time | 0.2 Seconds |
| MCBF | 5,000,000 Cycles | Arm Material | 10mm Acrylic |
| Communication Interface | RS485,Dry Contact | ||
| High Light | security entrance systems,drop arm turnstiles |
||
Product Description

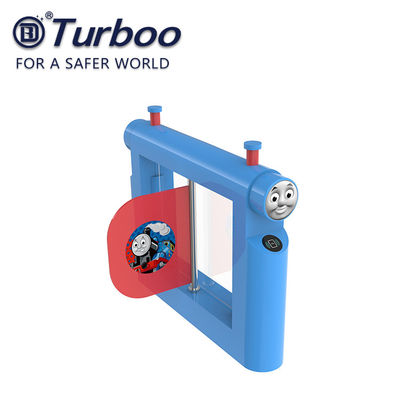

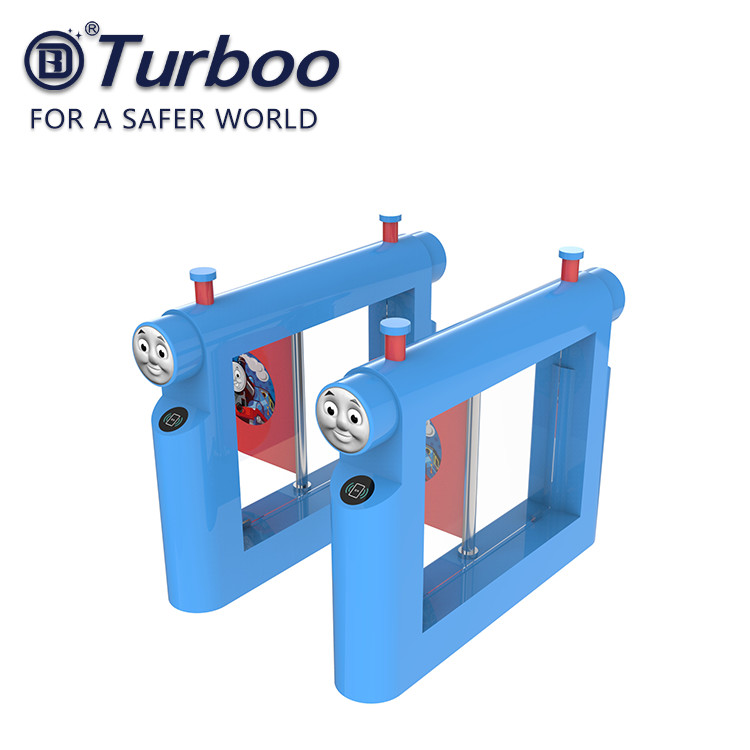

IC ID Card 24V Security Swing Barrier Gate for Kindergarten , Automatic Safety Access Control Smart Swing Barrier Turnstile
Description
All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line.
| Model Number: | T3025 |
| Product Size: | 1400*200*1150mm |
| Pass Width: | 500mm |
| Net Weight: | 55kg |
| Material: | 1.2mm Metal |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Brushed Motor |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
FEATURES AND BENEFITS:
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access,attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
Our advantage:
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
