Swing Barrier Gate
Created with Pixso. 900mm Wide 1.5mm Acrylic Swing Gate Turnstile With Face Recognition Unit

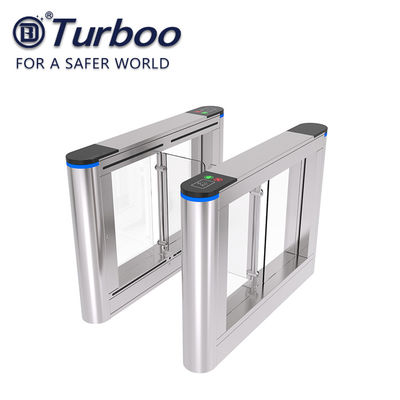

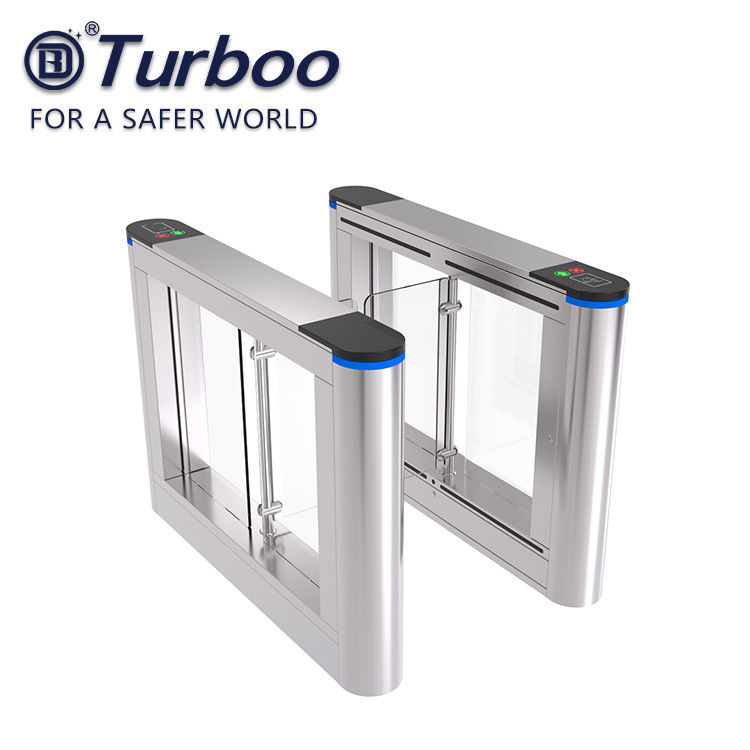

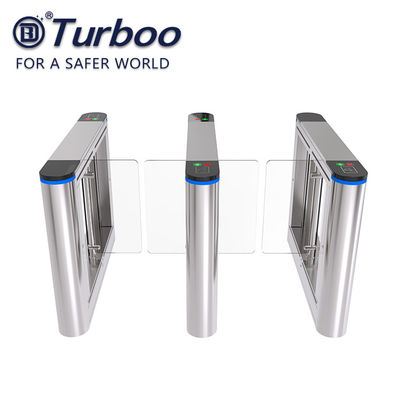

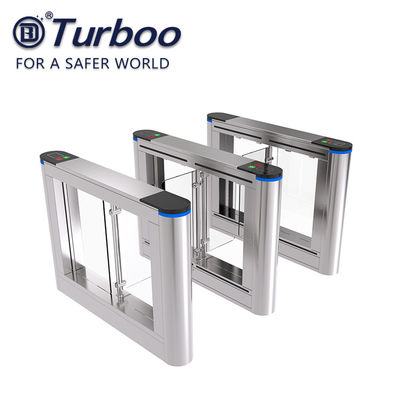

900mm Wide 1.5mm Acrylic Swing Gate Turnstile With Face Recognition Unit

Brand Name: Turboo
Model Number: H306
MOQ: 1 PC
Price: negotiate
Delivery Time: 15 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong China(Mainland)
Certification:
CE ISO9001
Product Size:
1400*185*1020mm
Pass Width:
600-900mm
Material:
1.2mm SUS 304 Hailine 400#
Top Cover Material:
1.5mm Acrylic And 304 SUS
Input Voltage:
100-240V
Working Voltage:
24V
Pass Rate:
35-40 Persons/minute
Operating Time:
0.2 Seconds
Infared Sensro:
5 Pairs
MCBF:
5,000,000 Cycles
Arm Material:
10mm Acrylic
Communication Interface:
RS485,Dry Contact
Outdoor:
YES
Packaging Details:
Wooden Case Package
Supply Ability:
1000 units per month
Highlight:

1.5mm Acrylic Swing Gate Turnstile

,

900mm Wide Swing Gate Turnstile

,

1.5mm Acrylic swing barrier gate

Product Description

900mm Wide 1.5mm Acrylic Swing Gate Turnstile With Face Recognition Unit







All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control



Model Number: H306
Product Size: 1400*185*1020mm
Pass Width: 600-900mm
Net Weight: 65kg
Thickness: 1.2mm
Material: 1.2mm SUS 304 Hailine 400#
Top cover Material: Acrylic+1.5mm SUS304
Filling Panel Material: 10mm Transparent Acrylic
Arm Material: 10mm Transparent Acrylic
Driver: Brushed Motor
Infrared Sensor: 5pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles



Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.



4. We take 3M glue imported from American instead of the glass glue which other counterparts use.



5. Germany “Optibelt” and American “Gates” is the belt we are using now.



900mm Wide 1.5mm Acrylic Swing Gate Turnstile With Face Recognition Unit 0900mm Wide 1.5mm Acrylic Swing Gate Turnstile With Face Recognition Unit 1
