Crowd Control Speed Gate Turnstile With 35 Persons / Min Transit Time

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number Y248
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 1200X280X980 Power 100~240
Transit Time 35 Persons/min Temperature -20~+75
Package Wooden Case
High Light

turnstile access control system

,

glass security barriers

,

Crowd Control Speed Gate Turnstile

Leave a Message
Product Description
Speed Gate Turnstile Crowd Control Wing Barrier Flap Turnstiles Gates For Mall



Product Description

Technical Data Unit Y248
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1200X280X980
Net weight including bars Kg 48




Features and Benefits



1. Alarm buzzer detection for unauthorized usage

Alarm buzzer function will be triggered when the user is passing through without authorization,tail gating or incorrect directon.
2. Elegant design
Slim from factor,premium stainless steel and glass panel material with elegant arc design effectively help creat a welcoming and elegant prestigious atmospher at building entrance to impressive your visitor.
3. Double safety
Door will automatically reverse once safety IR detected obstacle or when a small force is detected blocking its motion.This dual detection feature is to prevent injury caused by door hitting people.
4. Easy integration
A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal.After delay timer elasped,swing barrier will automatically close back by itself.
5. Minimum maintainance
User brushless DC motor eliminate the need of changing carbon brush thus reducing maintenance work.Key internal parts are treated with anti-rust and anti-septic to ensure long term reliability.
6. Emergency recovery
During power failure,swing barrier will automatically open for free pass through.This will fast escape in the event of emergency.When the power resume,swing barrier will automatically close back.

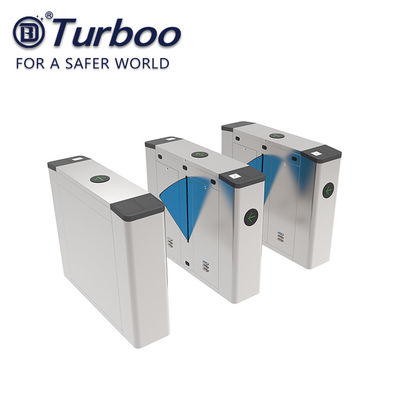

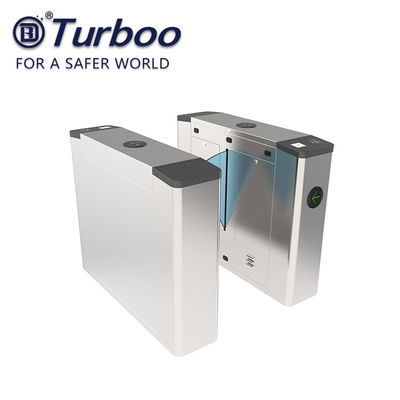

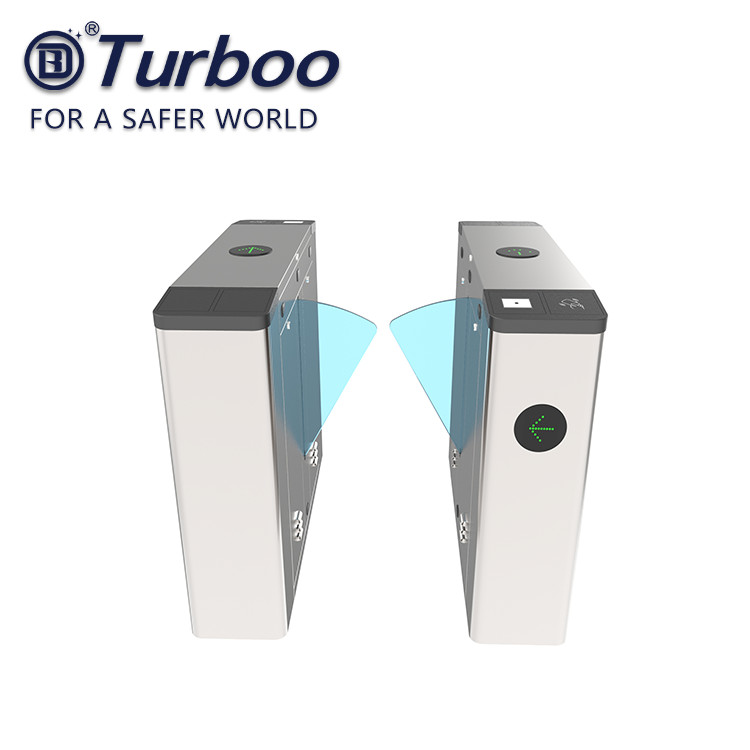

Crowd Control Speed Gate Turnstile With 35 Persons / Min Transit Time 0Crowd Control Speed Gate Turnstile With 35 Persons / Min Transit Time 1Crowd Control Speed Gate Turnstile With 35 Persons / Min Transit Time 2
