Card Reader Automatic Swing Barrier Gate for Entry, Bridge Bi-direction Turnstile

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number E343
Minimum Order Quantity 1 unit
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Size 1200X280X980 Net Weight 50KG
Material 304 Stainless Steel Power 220V 50Hz
Transit Time 35 Persons/min
High Light

drop arm turnstiles

,

security entrance systems

,

304 stainless steel Swing Gate Turnstile

Leave a Message
Product Description

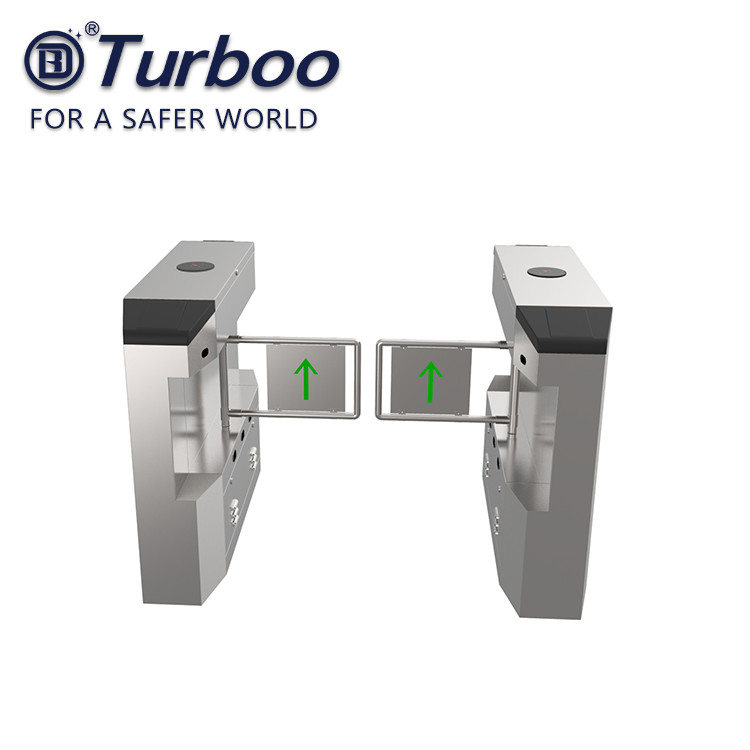

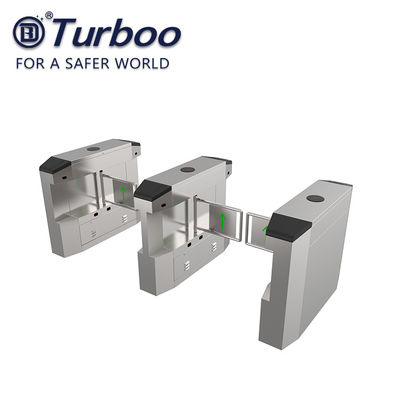

Card reader Automatic swing barrier gate for entry, bridge Bi-direction

Product Description

Product description for Security passage smart bike pass turnstile 304 stainless steel swing barrier gate/ doorThe outline of the product is formed after pressing the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.

Technical Data Unit E343
Passage width mm <1150
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1200X280X980
Net weight including bars Kg 50
Optional devices 1.Fingerprint reader 2.Face recognition
  3.Card collector 4.Card reader
  5.2D scanner 6.Palmprint reader








Features and Benefits

1. Bi-directional passing or single way passing.Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers such as Magnetic card, Barcode card, FID card and so on.
10. Each machine can be set the running status online by setting the built-in keys.



Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer
