Flap Wings Security Barrier Gate , Speed Gate Pedestrian Access Control System CE Approval

Place of Origin China
Brand Name Turboo
Certification CE, ISO9001
Model Number B323
Minimum Order Quantity 2 pcs
Price Negotiation
Packaging Details Wooden box/ Heavy carton package
Delivery Time 7~15 working days
Payment Terms L/C, T/T
Supply Ability 4000 pcs per month
Product Details
Size 1400*150*980 Unlock Time 0.2s
Pass Rate 35p/m Input 100V~240V
Driving Voltage 24V Environment -25~+70℃
Weight 45Kgs
High Light

security access gates

,

biometric security system

Leave a Message
Product Description

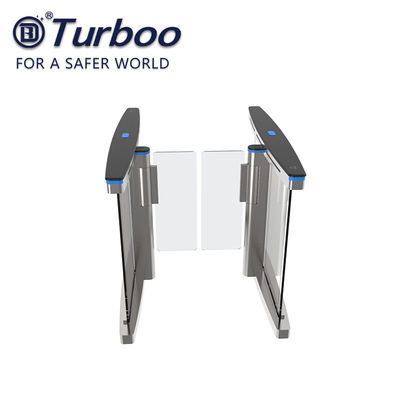

Flap Wings Security Barrier Gate , Speed Gate Pedestrian Access Control System CE Approval



Our acrylic flap wings security barrier gate is a efficient and fashion design speed gate. Its transparent , slim and fashion design with high pass rate of 35 to 40 persons/ minute make it a ideal turnstile for many place like school, library, office, etc.



Acrylic flap wings security barrier gate Product Parameter:

Model number B323
Material Top:12mm artificial marble, body:2.0mm SUS304 No.4, barrier flap: 10mm transparent acrylic, filling: 12mm transparent acrylic + LED strip.
Net Weight 45 KGs
Pass Width 600mm
Driver Drive Unit:Brushed motor+Encoder+clutch
Communication intereface Dry contact,RS485
Pass rate 35-40 persons/minute
Inout voltage 100-240V
Working voltage 24V
Operating time 0.2 seconds
MCBF 5,000,000 Cycles
Photocell 6 pairs



Acrylic flap wings security barrier gate Advantage & Benefit:



  • User-friendly Design: The transparent design preserves natural light and reduces the perceived barrier effect, while the gate panels swing open in the direction of passage creating a welcome gesture.

  • Quiet and smooth in operation, the ideal choice for sites where limited space is available and aesthetics are of high importance.

  • Can be combined with time recording systems and ID readers, including contactless and biometric systems.

  • High Flow Rate:Up to 40 passages per minute.

  • Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.

  • The internal structure of mechanism is also original, it adapts a clutch which can make swing gates locked completely to prevent illegal intrusion when swing gates are at home position.

  • With optimized mechanical structure design, it has higher fatigue resistance and impact resistance. It can ensure high stability when the turnstile is working under extra high traffic, and maintain its long-term normal operation.

  • All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to effectively avoid electric shocks.



Acrylic flap wings security barrier gate Detailed Images:



Fashion design of LED decoration of filling transparent acrylic.

Flap Wings Security Barrier Gate , Speed Gate Pedestrian Access Control System CE Approval 0



The special design of clutch which can make swing gates locked completely to prevent illegal intrusion when swing gates are at home position.



Flap Wings Security Barrier Gate , Speed Gate Pedestrian Access Control System CE Approval 1



Security flap barrier turnstile Project Case:

Flap Wings Security Barrier Gate , Speed Gate Pedestrian Access Control System CE Approval 2
