35w Pedestrian Barrier Gate Turnstile 100-240V Pass Width 600-900mm With Brushed Motor

Place of Origin: Guangdong China(Mainland)
Brand Name: Turboo
Certification: CE ISO9001
Model Number: A327
Minimum Order Quantity: 2 pcs
Price: negotiate
Packaging Details: Wooden Case Package
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 3000+PCS PER MONTH
Product Details
Product Size: 1400*185*980mm Pass Width: <=800mm
Material: 1.5mm Imported SUS 304 Snow Line Polish 400# Top Cover Material: Acrlic With SUS
Input Voltage: 100-240V Working Voltage: 24V
Pass Rate: 35-40 Persons/minute Operating Time: 0.2 Seconds
Infared Sensro: 5 Pairs MCBF: 5,000,000 Cycles
High Light:

security entrance systems

,

drop arm turnstiles

Leave a Message
Product Description

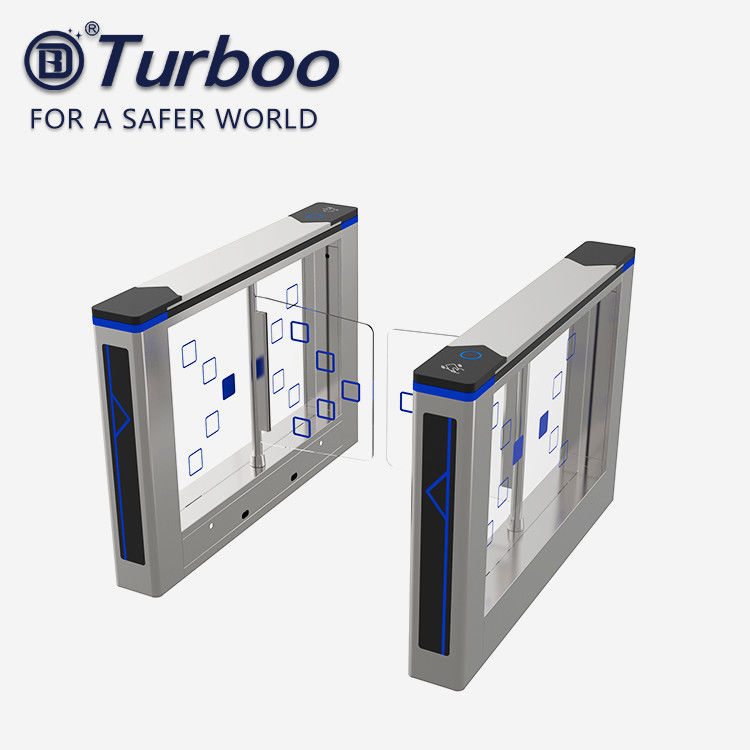

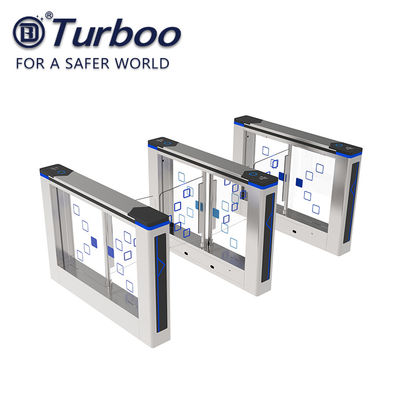

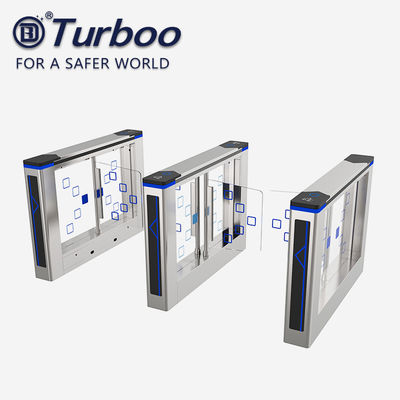

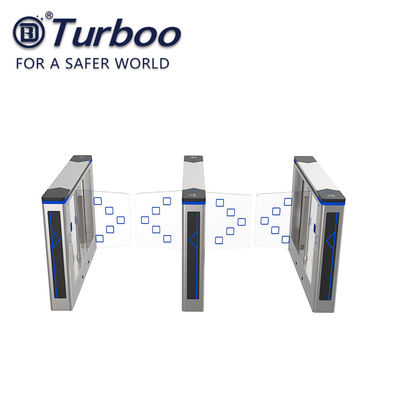

Pass Width 600-900mm Swing Barrier Gate Automatic Access Control Pedestrian Turnstile 100-240V 35w with Brushed Motor



Description:



A327 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.





Model Number: A327
Product Size: 1400*185*980mm
Pass Width: <=800mm
Net Weight: 69kg
Thickness: 1.5mm
Material: 1.5mm imported SUS 304 snow line Polish 400#
Top cover Material: Acrlic with SUS
Filling Panel Material: 10mm Acrylic
Arm Material: 8mm Tempered Glass
Driver: Brushed Motor
Infrared Sensor: 6 pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles



OPERATING MODES:

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



Certification:



35w Pedestrian Barrier Gate Turnstile 100-240V Pass Width 600-900mm With Brushed Motor 0



Dimension Diagram:

35w Pedestrian Barrier Gate Turnstile 100-240V Pass Width 600-900mm With Brushed Motor 1

35w Pedestrian Barrier Gate Turnstile 100-240V Pass Width 600-900mm With Brushed Motor 2



Factory:

35w Pedestrian Barrier Gate Turnstile 100-240V Pass Width 600-900mm With Brushed Motor 3

Project Case:





35w Pedestrian Barrier Gate Turnstile 100-240V Pass Width 600-900mm With Brushed Motor 4



Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.



2. We use Baoxin Stainless steel, the best brand in China.



3. Our power supply is the best brand from Taiwan “Meanwell” or “Fujia”.



4. We take 3M glue imported from American instead of the glass glue which other counterparts use.



FAQ:



1. How about your company’s actual strength?

We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.



2. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.



3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.


4. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
