Brand Name: | Turboo |
Model Number: | G538 |
MOQ: | 1 PC |
Price: | Negotiable |
Delivery Time: | 1 week |
Payment Terms: | T/T, L/C, |
Function & Features

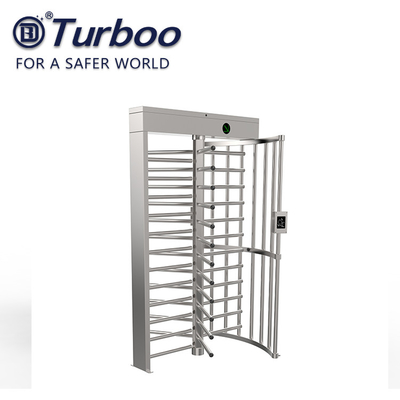

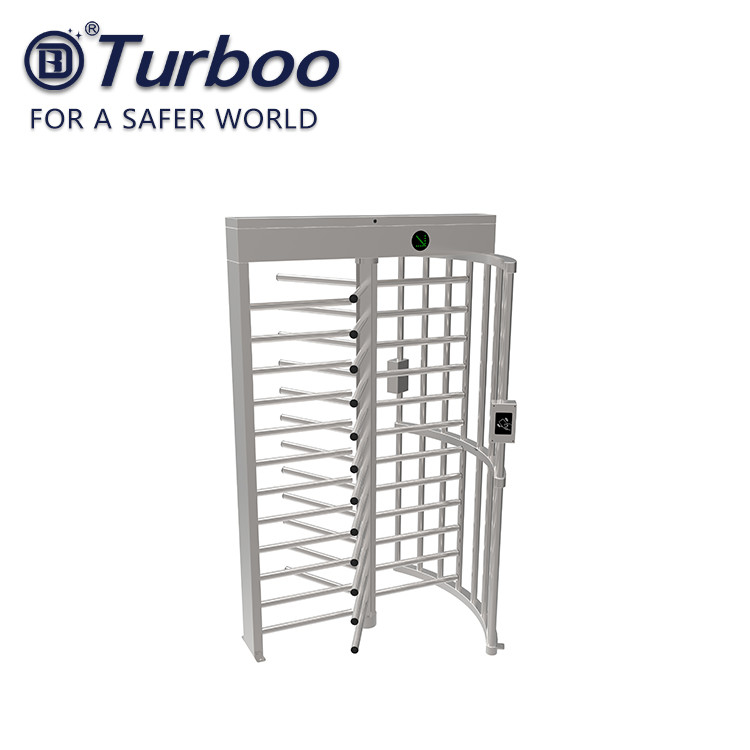

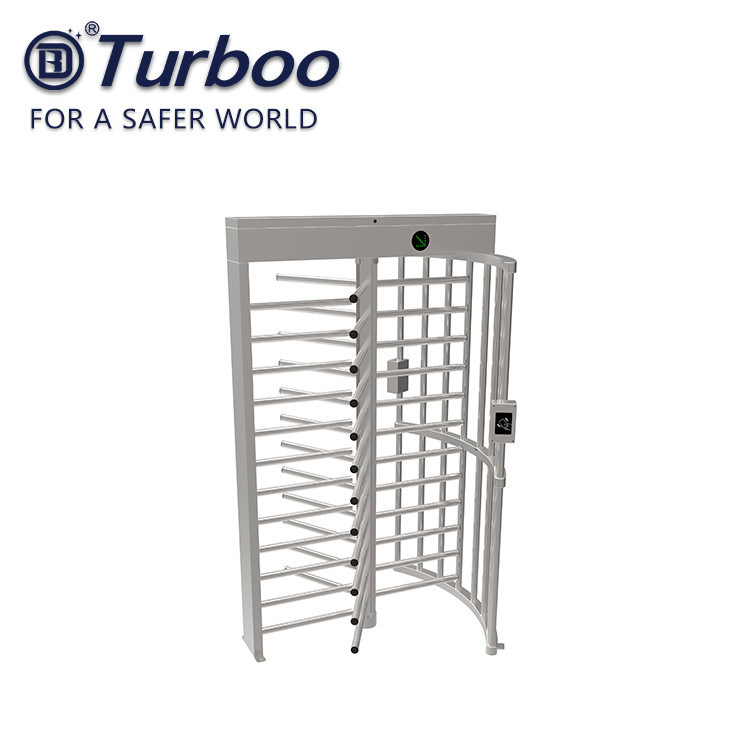

1) The full-high turnstile is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, fingerprint and face recognition access control system.

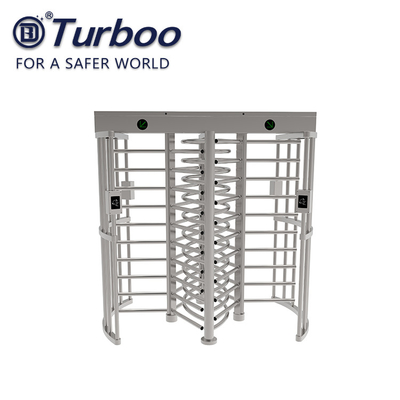

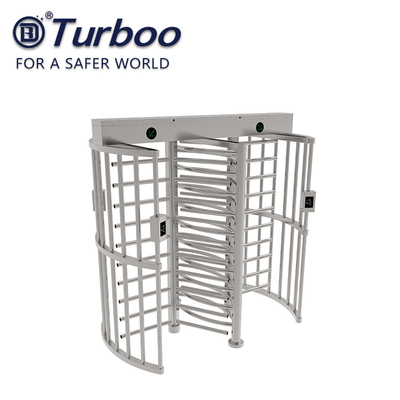

2) The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile. The intermeshing of the left and right-hand rotors allow reduction in overall width from 2.8m to 2.2m with no reduction of passage space. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions. The complete stainless
steel construction is suited for interior or exterior application.
3) access control:RFID card control ( or more options with fingerprint,token, barcode system); besides, add the Electronic Counter as shown below, to calculate the valid access times on each entrance or exit in Turnstile gate.
OPERATING MODES
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
MATERIALS
• Housing: In stainless steel AISI 304 or AISI316.
• Barrier arm- stainless steel bar.
Technical Data | Unit | G538 |
Passage width | mm | <650 |
Throughput rate | p/m | 30 |
Power supply | V(ac) | 100-240 |
Operational voltage | V(dc) | 24 |
Max power consumption | w | 30 |
Frequency | hz | 50-60 |
prectection level | ip | >44 |
Working temperature | degree | -25 to +70 |
Dimension excluding bars | mm | 1400X1200X2310 |
Net weight including bars | Kg | 105 |
|
