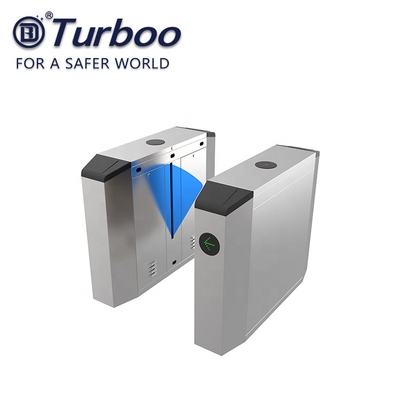

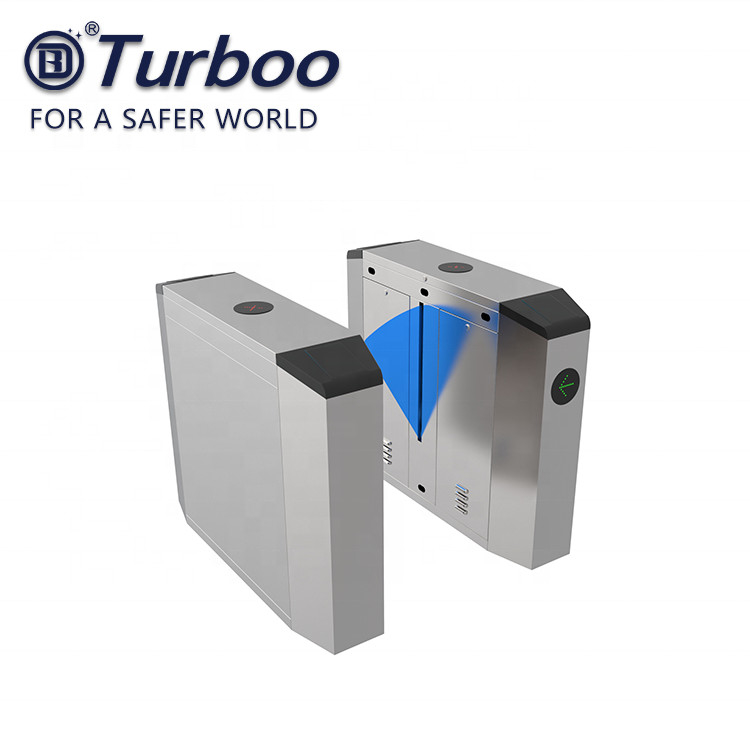

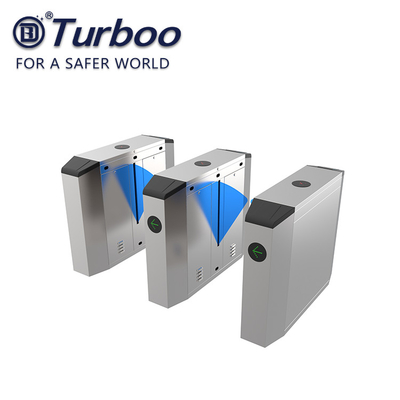

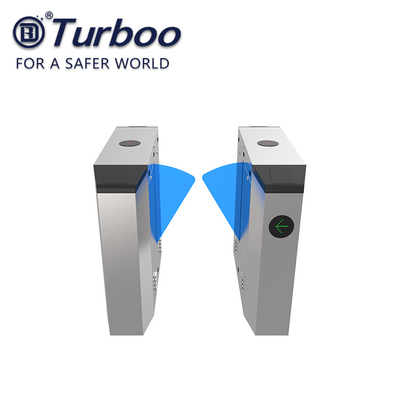

Automatic Stable Operations Pedestrian Barrier Gate With NFC Time Attendance

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number E242
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden box
Delivery Time 7 days
Payment Terms L/C, T/T,
Supply Ability 1000 units per month
Product Details
Size 1430x280x980mm Material 304 Stainless Steel
Input 220V ,50Hz Package Wooden Box
Temperature -25~+70℃ Transit Speed 35 Persons/min
Reliability Of The Core 3 Million ,no Fault Time Needed For Opening 0.2 Seconds
High Light

waist height turnstile

,

security access gates

Leave a Message
Product Description
Low noise with stable operations Automatic turnstile pedestrian gate with nfc time attendance



Product Description

Flap Type turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Technical Data E242
Dimension 1430x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 50kg
Input 12v dry contact





Features and Benefits



1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

8. The barrier can be set to delay closing in 1-60s after a valid card-reading



OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



MATERIALS

1.. Housing: Made in stainless steel AISI 304 o AISI316.

2.. Barrier swings-Acrylic, PC , stainless steel frame.
