RFID Card Reader Swing Barrier Gate / Access Control Barriers And Gates

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | 304 Stainless Steel Or 316 Stainless Steel | Size | Size 1400X185X1020 |
---|---|---|---|
Thickness | Full 1.5mm | Net Weight Including Bars | 95kg |
Testing | 3 Million No Fault | Passage Width | ≤900mm |
Input | 220V,50HZ Or 110 V ,50HZ | Environment | -25~+70 |
Driving Voltage | 24 V | ||
High Light | drop arm turnstiles,security entrance systems |

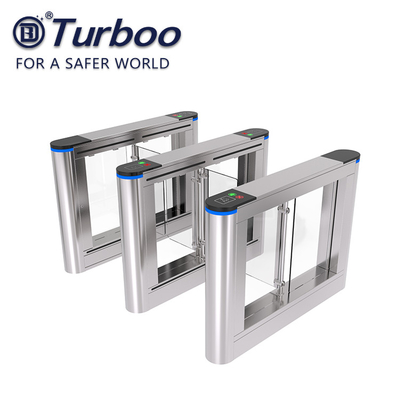

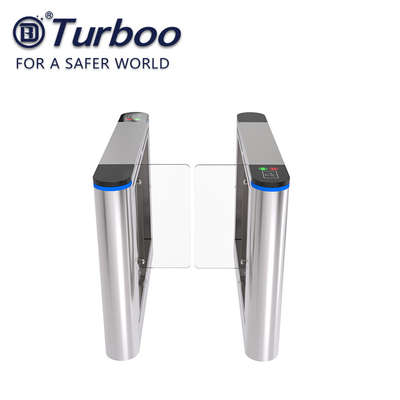

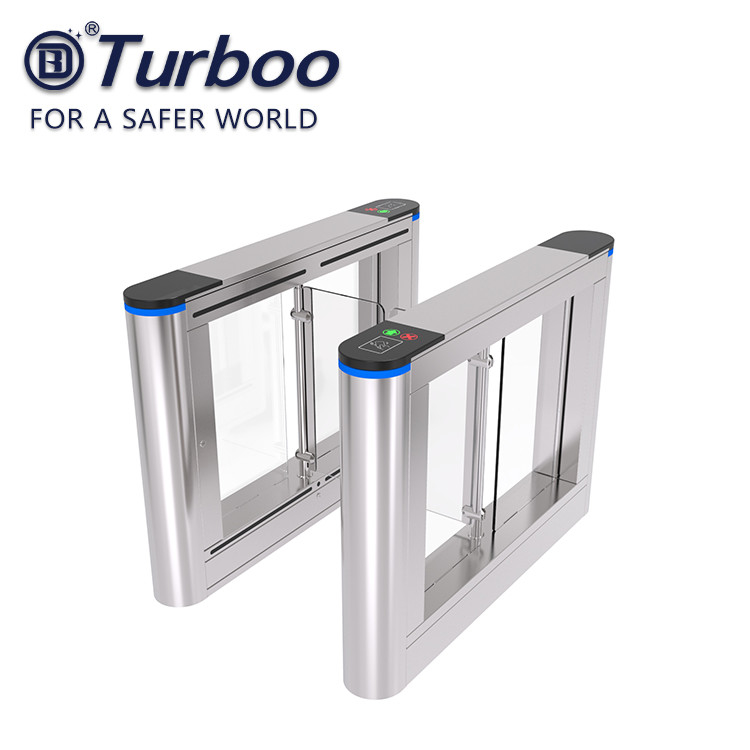

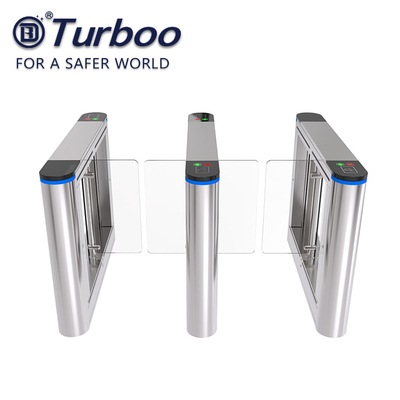

Swing Barrier Gate RFID Card Reader Access Control System Automatic Swing Barrier Entrance Gate
Features and Benefits
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
1. Equipped with standard card read window, can be connect with multi card-readdevice
2. With function of break down self check and alarm,easy maintenance and operation.
3. Swing turnstile can be connected with external button or remote control. achieved one or bi-direction passing at will
4. Auto reset function: If the passenger does not pass in given time, arms will lock automatically,delay time can be 3 s, 5 s, 10 s, 60 s..(given time can be set by operator).
5. Mechanical anti-trap:When people or objects hinder the arm running,the system will automatically detect and stop the run,swing arm strength of small, realize humanized protection.
6. Swing turnstile can realize a normally open or normally closed function switched by external button or remote control.
7. Lighting indicator :High brightness passing indication.
8. Normally open function:the swing turnstile arm will auto opening when power is off.the direction can be adjusted.
9. Sound and light alarm function, including illegal traffic, following, anti-trap etc.
Technical Data | Unit | H306 |
Passage width | mm | <=900 |
Throughput rate | p/m | 35 |
Power supply | V(ac) | 100-240 |
Operational voltage | V(dc) | 24 |
Max power consumption | w | 35 |
Frequency | hz | 50-60 |
prectection level | ip | 44 |
Working temperature | degree | -25 to +70 |
Dimension excluding bars | mm | 1400X185X1020 |
Net weight including bars | Kg | 95 |
Product details
Product cases
