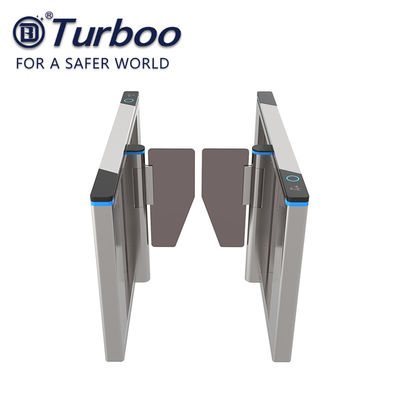

RFID Access Controller Swing Electronic Turnstile Gates With Anti - Pinch Function

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number B325
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Size 1500*150*960mm
Passage Width ≤900mm Thickness Full 2.0mm
Driving Voltage 24 V Testing 3 Million No Fault
High Light

sliding security gates


security access gates


Swing Electronic Turnstile Gates

Leave a Message
Product Description

Factory Price Turnstile Gate Electronic Swing Turnstile With Top Grade



Features and Benefits


1. Door will keep opened automatically while power cut off.
2. Direction of through is adjustable, one-way, bi-direction.
3. LED direction indicator
4. Anti-pinch function
5. Anti-tail, prevent people follow pass without verified
6. Prevent wrong direction pass, go through wrong direction will be alarm by beep
7. RFID access controller for standard, fingerprint reader, facial identify reader, barcode reader, consume system optional.
8. Combine IR detector, support people counting, prevent follower, wrong way alarm function.
9. Option temperature controller, support machine working fine in cold weather.
10. Option bluetooth remote controller, support remote open.
11. Option the crashproof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it


What is the difference in functionality of Full Automatic, Semi Automatic and ManualSetting Machanism?

1. The FullAutomatic machine is driven by the DC brushless Motorsystem, such motorized Machanism using the big and hard gears, no abrasive wear, small passing resistance, so hardly with the outside force, you can pass easily with thecard.

And the brake beam will berising when the power is on, the beam will be down without the power.It is the high intelligent turnstile, no maintenance all the of life, No Attrition, Low-noise, High Intelligence .

2. The Semi Automatic machine is driven by the heavy hard system, it does not havethe auxiliary force, so you can pass after giving the outside force to it, it is traditionalintelligent turnstile.

3. The Manual Setting Machine is without the Motor and power, it is the manual one to pass we just one direction .


Product Description


Technical Data B325
Dimension 1500x150x960mm
Unlock time 0.2s
Passage width ≤900mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC

Net weight

Input 12v dry contact


Product Application


RFID Access Controller Swing Electronic Turnstile Gates With Anti - Pinch Function 0

RFID Access Controller Swing Electronic Turnstile Gates With Anti - Pinch Function 1

RFID Access Controller Swing Electronic Turnstile Gates With Anti - Pinch Function 2
