Speed Gate Turnstile
Created with Pixso. High Efficiency Speed Gate Turnstile / Office Security Gates Infrared Sensors

High Efficiency Speed Gate Turnstile / Office Security Gates Infrared Sensors

Brand Name: Turboo
Model Number: A221B
MOQ: 1 PC
Price: Negotiable
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, ISO9001
Material:
304 Stainless Steel Or 316 Stainless Steel
Thickness::
Full 1.2mm Or Full 1.5mm
Size:
1400X300X1005
Passage Width:
≤550mm
Testing:
3 Million No Fault
Input:
220V,50HZ Or 110 V ,50HZ
Driving Voltage:
24 V
Environment:
-25~+70
Packaging Details:
Wooden case package
Supply Ability:
1000 units per month
Highlight:

speed gate systems

,

glass security barriers

,

High Efficiency Speed Gate Turnstile

Product Description

Speed Gate Turnstile Security Flap Barrier Gate Optical Turnstiles For Office Building








Access control system

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
• Display has been in use for statistics and numbers

• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.


Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer


Technical Data Unit A221B
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X300X980
Net weight including bars Kg 87




Features

1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Support infrared photocell for anti-pinch and reset function
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

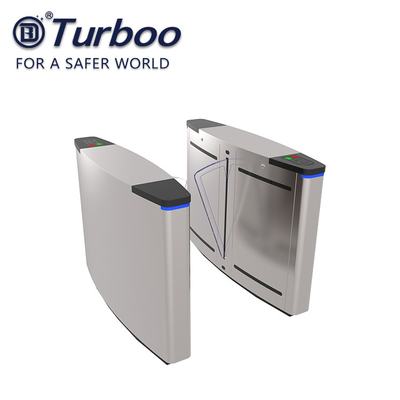

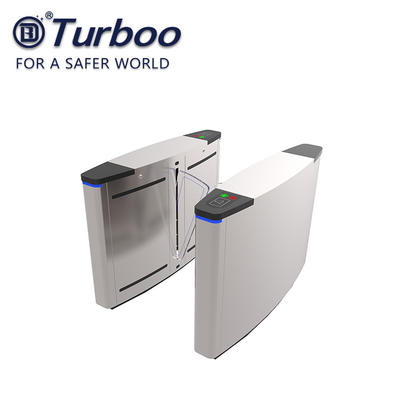

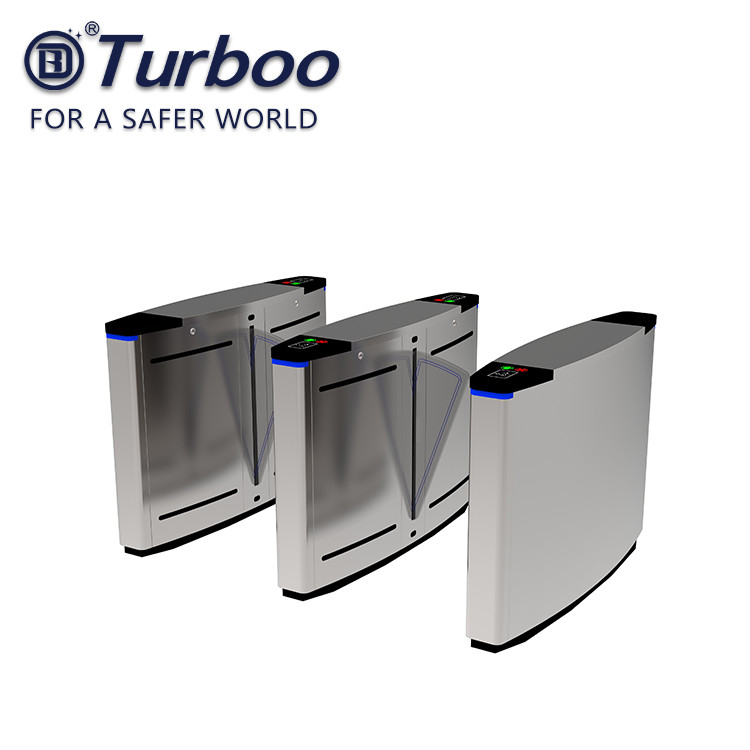

High Efficiency Speed Gate Turnstile / Office Security Gates Infrared Sensors 0High Efficiency Speed Gate Turnstile / Office Security Gates Infrared Sensors 1High Efficiency Speed Gate Turnstile / Office Security Gates Infrared Sensors 2
