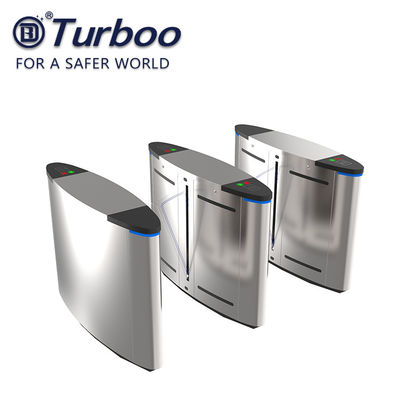

Double Anti - Clipping Speed Gate Turnstile / Flap Barrier Gate For Metro Station

Place of Origin Guangdong, China (Mainland)
Brand Name Turboo
Certification CE
Model Number H203
Minimum Order Quantity 1 PC
Price Bargain
Packaging Details Wooden case package
Delivery Time 3-7days
Payment Terms L/C, T/T
Supply Ability 1000 units per month
Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Weight Single:90kg; Double:125kg
Thickness Full 1.5mm Pass Width ≤550mm
Size 1410x330x980mm Driving Voltage 24 V
Testing 3million ,no Fault Input 220V,50HZ Or 110 V ,50HZ
High Light

turnstile access control system

,

glass security barriers

,

Anti Clipping Speed Gate Turnstile

Leave a Message
Product Description

Speed Gate Turnstile Scanner Integration Metro Station Flap Barrier Gate Track The Entry & Exit Records Easily







Flap barrier gate



  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
  • Auto reset function, if no passing during identified card-reading time, the system will reset automatically the passagers are prohibited to pass until their second identified reading.
  • The barrier can be set to delay closing 1-60s after a valid card reading.
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping.
  • A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smoth passage



Features and Benefits

1.Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.

3.Display has been in use for statistics and numbers

4. A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.

5.Communication

•Dry contact relay with 12 volt or 24 volt pulse

•Rs485, or Tcp-lp communication with computer



Operating modes

1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked



Materials

1. Housing: In stainless steel AISI 304 or AISI316.
2. Barrier arm- stainless steel bar.



Specifications



Technical Data H203
Dimension 1410x340x1005mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 30w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 35kg
Input 12v dry contact
