Waist High Turnstile
Created with Pixso. automatic turnstile gate half height turnstile turnstile gate with card reade

automatic turnstile gate half height turnstile turnstile gate with card reade

Brand Name: Turboo
Model Number: H322
MOQ: 1 PC
Price: Negotiation
Delivery Time: 2 weeks
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE
Size:
1400x250x980mm
Material:
304 Stainless Steel
Net Weight:
68kg
Input:
220V ,50Hz
Gross Weight:
90kg
Transit Speed:
35 Persons/min
Packaging Details:
Wooden case package
Supply Ability:
1000 units per month
Highlight:

security entrance systems

,

drop arm turnstiles

,

card reader half height turnstile

Product Description

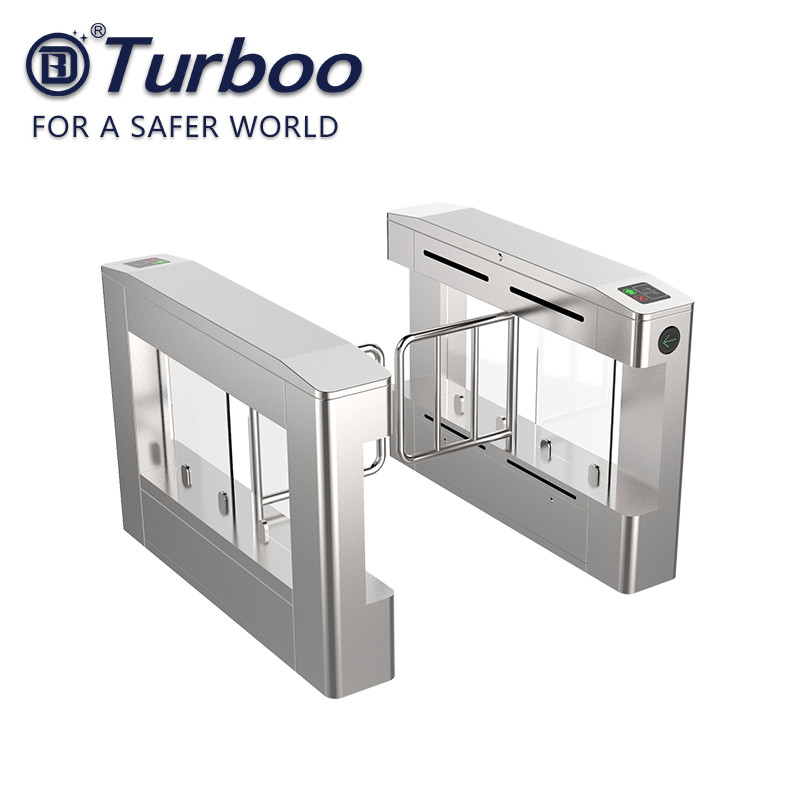

Automatic turnstile gate half height turnstile turnstile gate with card reade







All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



Advantage



• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Display has been in use for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following



Features

Technical Data Unit H322
Passage width mm <900
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1400X250X980
Net weight including bars Kg 68

automatic turnstile gate half height turnstile turnstile gate with card reade 0automatic turnstile gate half height turnstile turnstile gate with card reade 1
