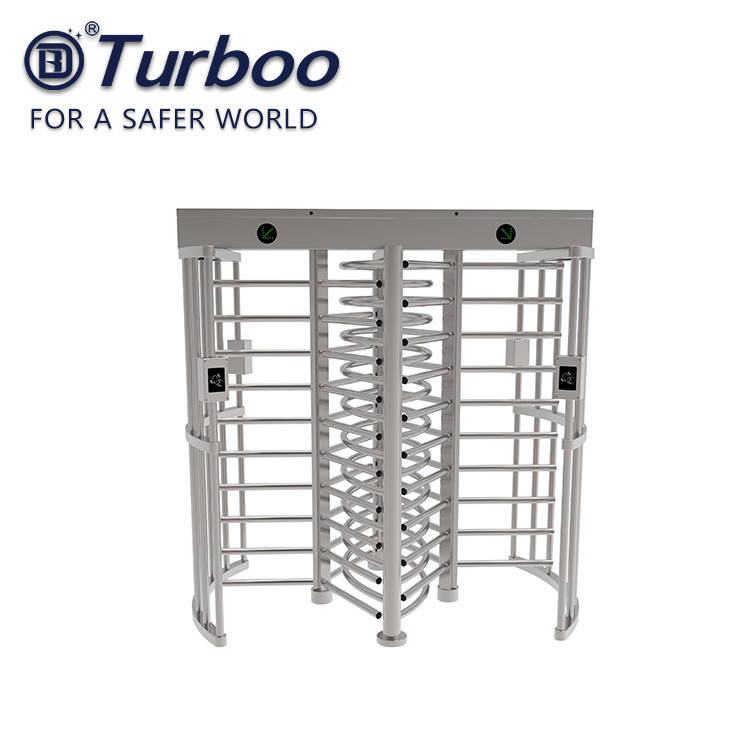

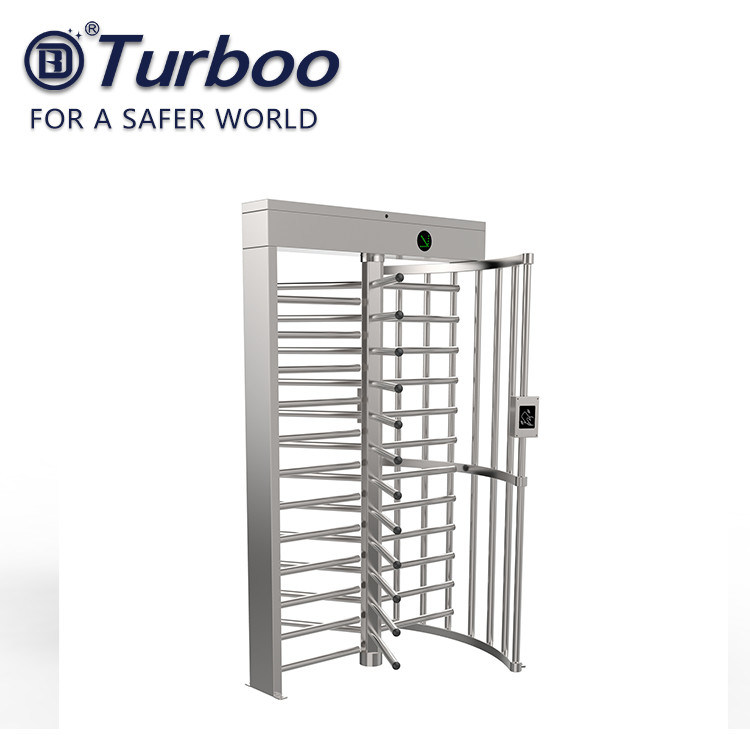

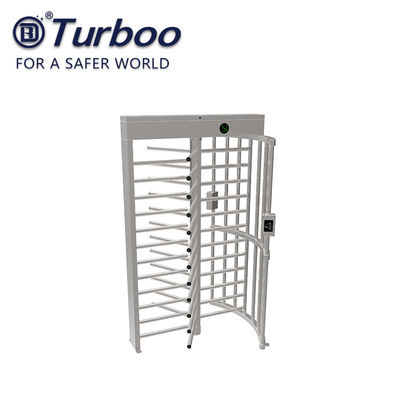

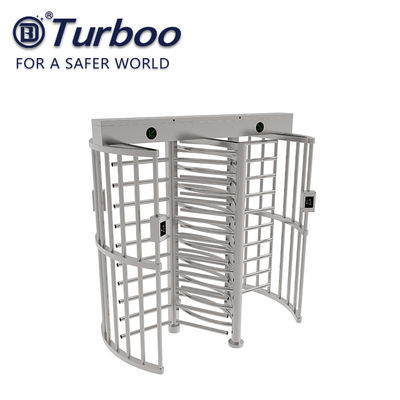

Full - Height Stainless Steel Turnstiles Pedestrian Access Control System

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number G538
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Type Full Height Turnstile Material 304 Stainless Steel
Size 2100*1500*2310mm Pass Width ≤650mm
Reliability 3 Million ,no Fault For The Machine Core Environment Temperature Minus 25 Degree To 70 Degree
Transit Speed 30 Persons / Min Unlock Time 0.2s
Input 220V ,50Hz Net Weight 230kg
High Light

entrance barrier gate

,

security barrier gate

,

magnetic cards full high turnstile

Leave a Message
Product Description

Stainless Steel Turnstiles Pedetrian access control system full-height rotor electric mechanical turnstiles



Features and Benefits

• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.





OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.



Technical Data Unit G538
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 2100X1500X2310
Net weight including bars Kg 230
